2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless - TPMS - Shenzhen Xianghan Technology Co., Ltd.

2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless

2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless

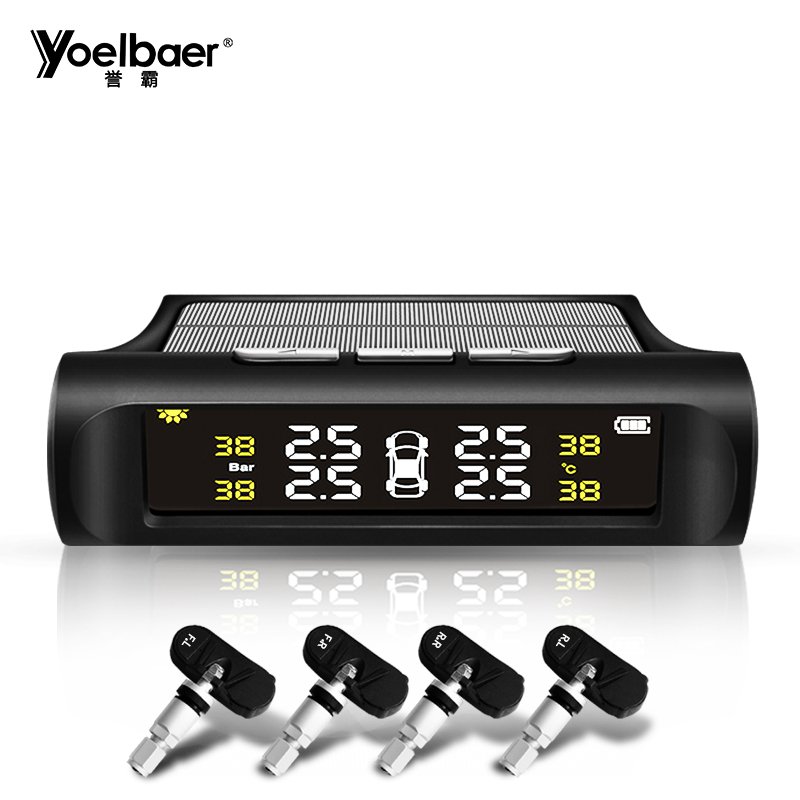

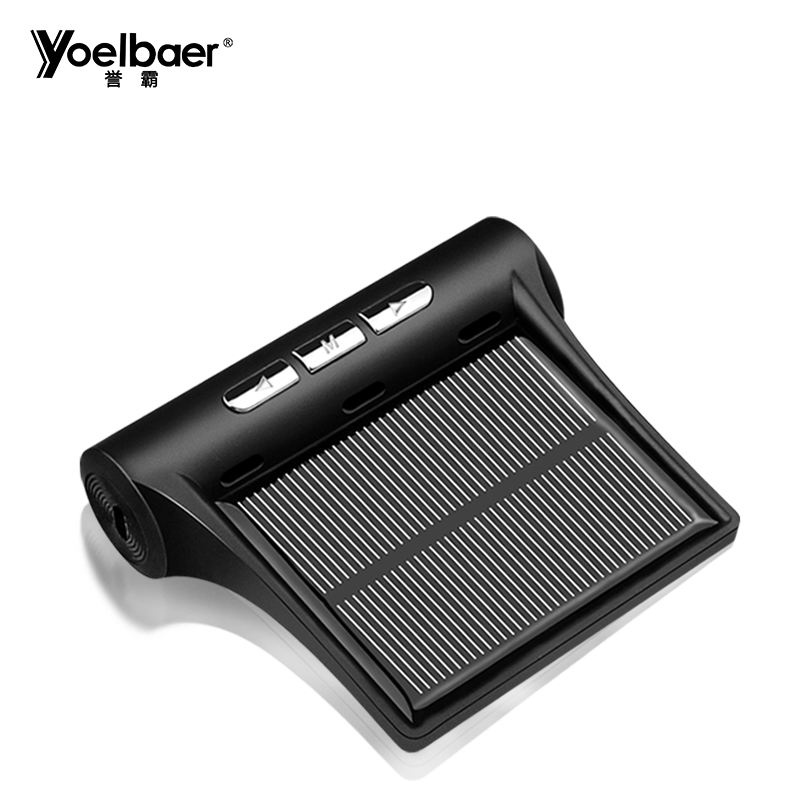

1.Use solar energy to get electricity,with 4 internal or external sensors.

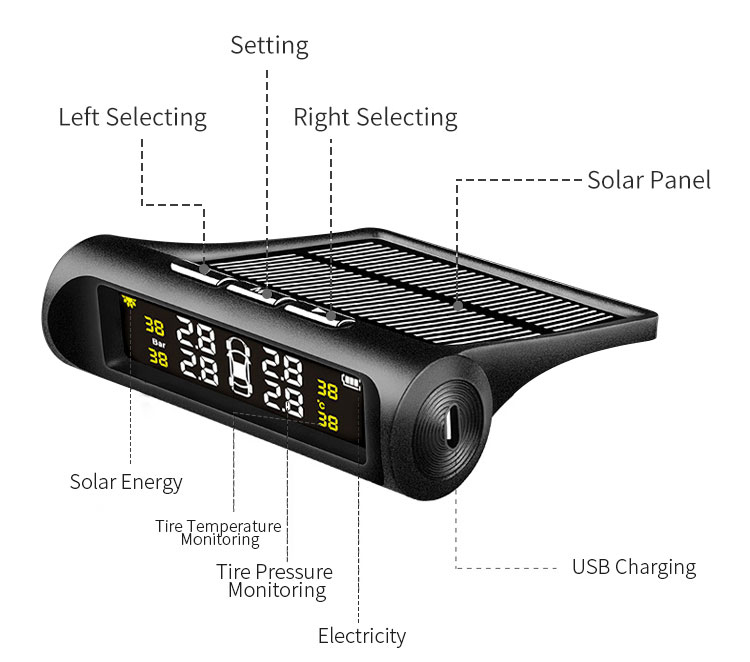

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy



  • Product introduction
1.Use solar energy to get electricity,with 4 internal or external sensors.

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy

5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.

6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.

7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.

8.Support tire position exchange function.

9.Sensor waterproof grade: IP67.

10.With Infineon Chip and RENATA anti-explosion battery.


Monitor specification

Sensor specification

Operating voltage

3.7-5V

Battery life

1-3 years

Storage temperature

-30°C-90°C

Storage temperature

-30°C-90°C

Working temperature

-30°C-85°C

Working temperature

-30°C-85°C

Emission frequency

433.92MHz±50KHz

Operating voltage

2.1-3.6V

Signal sensitivity

-90dbm

Transmitted power

10dBm

Display mode

LCD Color display

Pressure resolution

±0.1Bar

Working pressure

0-99Psi

Pressure range

0-7.0Bar

Bright operating current

≤6mA

Waterproof grade

IP67

Black operating current

≤4mA

Lithium battery

CR1632
