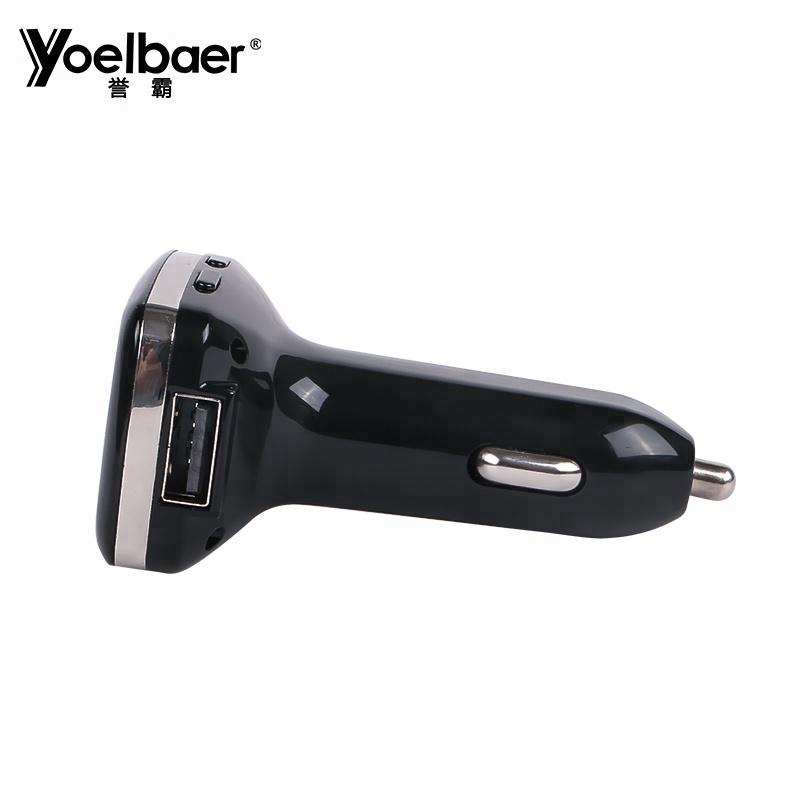

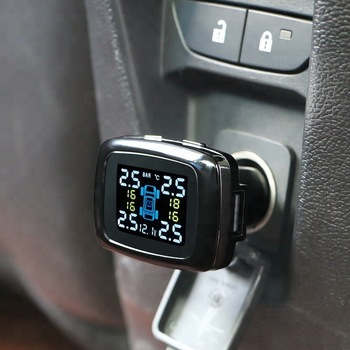

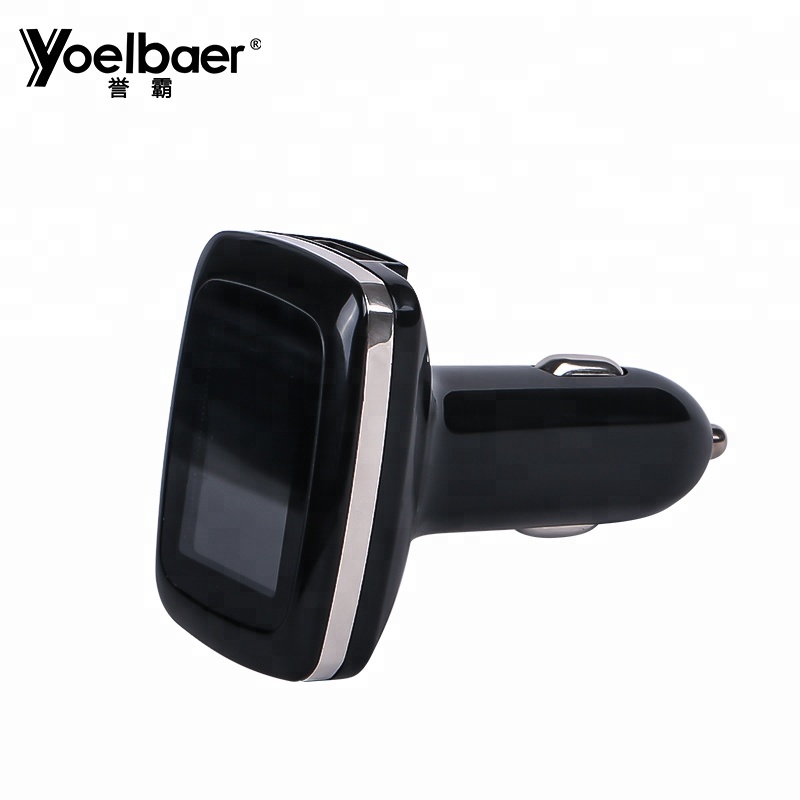

Smart Cigarette Lighter Car TPMS With Internal Sensor Real Time Monitor Pressure

Smart Cigarette Lighter Car TPMS With Internal Sensor Real Time Monitor Pressure

1, Acurately real-time detect four tire pressure and temperature and the system will alarm once it is under abnormal condition, keep your driving safety
2, Solar energy panel on the monitor, and with USB power charging for optional
3, Wireless transmission technology, easy to install
4, Upper and lower limit alarm value can be set by user
5, Suitable for different car, MPV, SUV, VAN, pickup car and light truck
6, Automatic switch on the display by vibration wake up, it is intelligent power
  • Product introduction
Features:

1, Acurately real-time detect four tire pressure and temperature and the system will alarm once it is under abnormal condition, keep your driving safety
2, Solar energy panel on the monitor, and with USB power charging for optional
3, Wireless transmission technology, easy to install
4, Upper and lower limit alarm value can be set by user
5, Suitable for different car, MPV, SUV, VAN, pickup car and light truck
6, Automatic switch on the display by vibration wake up, it is intelligent power
7, Display is small size, does not affect the traffic line

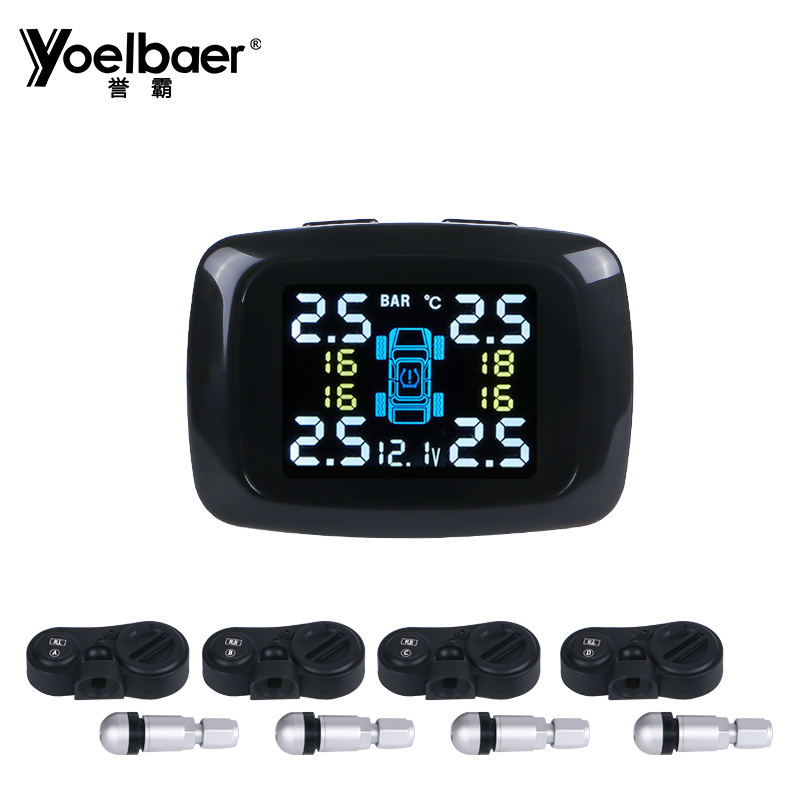

8, 4-external sensors,lcd color screen, brightness auto changed

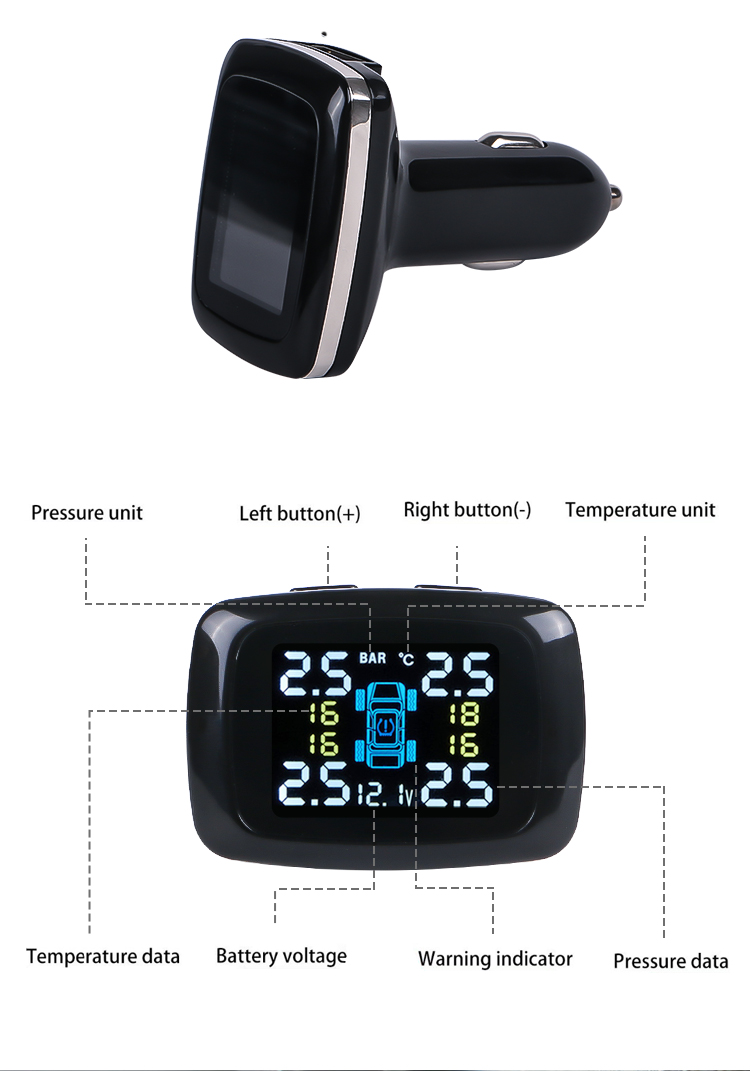

Monitor Parameter:



Operating voltage 2.0-3.6V
RF transmit frequency 433.92MHz±50KHz
Storage temperature -40°C-120°C
Working temperature -30°C-85°C
RF Signal sensitivity -90dbm
Display mode LCD Color
Working pressure  0-99Psi
Bright operating current ≤6mA
Black operating current ≤4mA

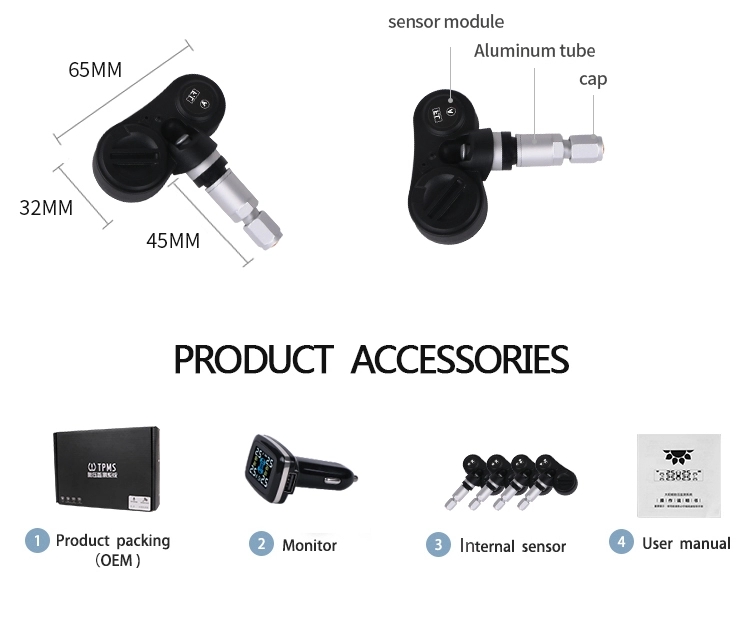

Sensor Parameter:



Battery life 36 months
Operating voltage 2.1-3.6V
Storage temperature -30°C-90°C
Working temperature -30°C-85°C
Temperature resolution ±2°C(25°C)
Pressure range 0-7.0Bar
Pressure resolution ±0.1Bar
Waterproof grade IP67
Transmitted power ≤10dBm
Transmit frequency 433.92MHz
Weight ≤8.0g
Size 21mm*17mm
Lithium battery CR1632(Model)





Why do we need to use tpms?



The tyre pressure monitoring system, or TPMS, is an electronic system designed to monitor the air pressure inside the tyres of various types of vehicles. TPMS provides a wide range of driver benefits including:

  1. .Improved vehilce handling and road traction.
  2. .Decrease rate of tire tread wear.
  3. .Improved fuel economy by up to10%
  4. .Reduced C02 emissions.
