Smart Bluetooth TPMS 4.0 APP Display BLE TPMS For Android IOS

Smart Bluetooth TPMS 4.0 APP Display BLE TPMS For Android IOS

WHAT IS BLE TPMS?

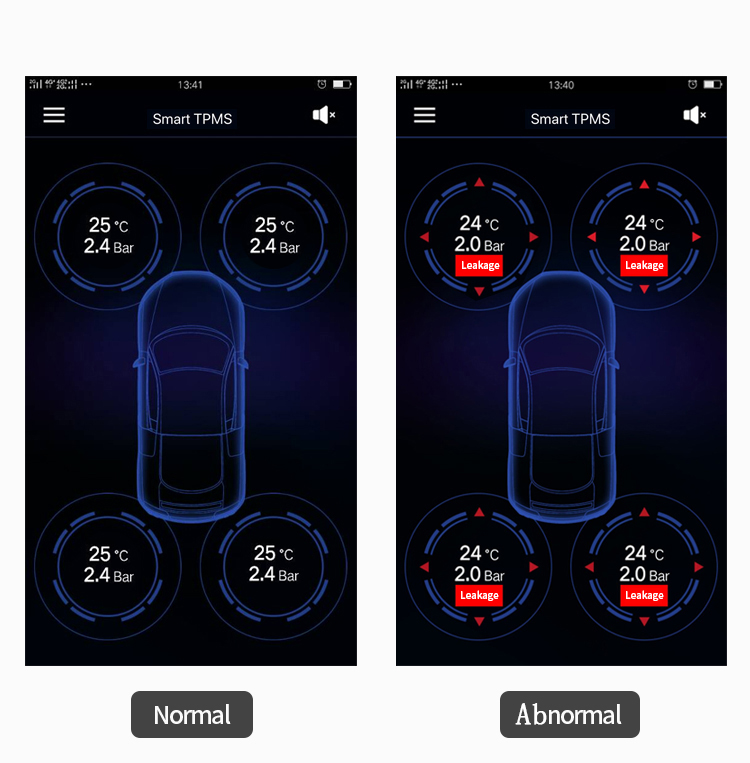

Bluetooth Tire Pressure Monitoring System, also called BLE TPMS,using pressure monitoring sensors within each tire to monitor tire pressure levels. Combined with the users' smart phone, it lets driver get the real-time tire pressure data, temperature data, status and warning messages without the need for extra cables or an extra display device.
  • Product introduction

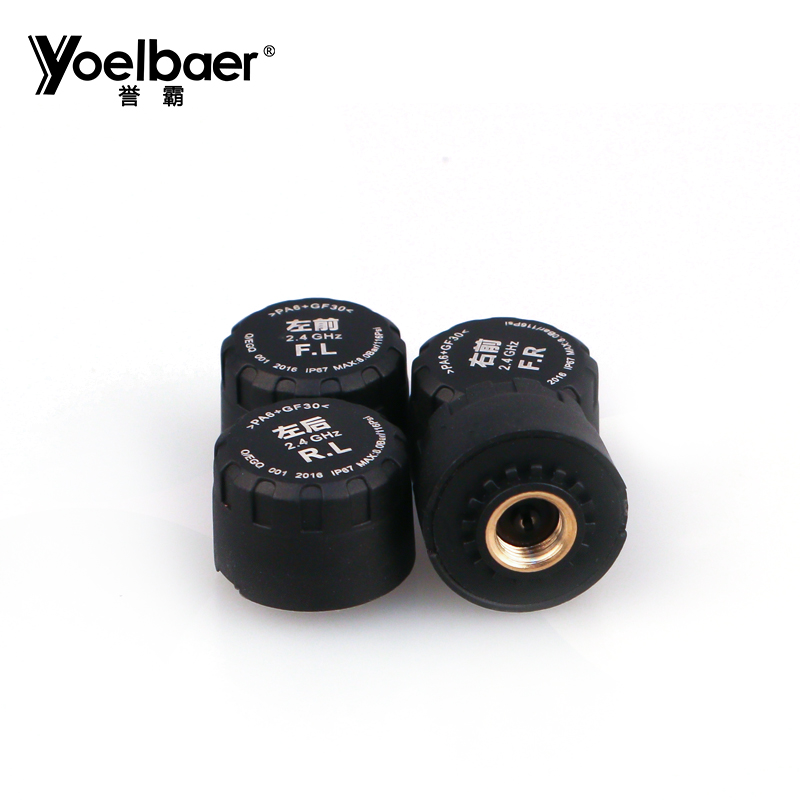

Smart Bluetooth TPMS 4.0 APP Display BLE TPMS For Android IOS

Sensor Parameter:

Input voltage

DC 3V

Optional pressure units

Psi, kPa, Bar

Optional temperature units

Degree.C, Degree.F

Operating frequency

2.4GHz

Processor

8bits MOU/S08

Core

ARMMO

Tire pressure detection range

100 - 900kPa

Tire pressure detection accuracy

+ / - 10kPa

Working humidity

95% max

Tire temperature accuracy

+ / - 3 Degree.C

Storage temperature

-30 Degree.C ~ 85 Degree.C

Operating temperature

-30 Degree.C ~ 80 Degree.C

Operating current

540uA

Response time

≤6s

Battery capacity

140mAh

Battery life

1-3 years

Waterproof rate

IP67

Static current

2.4uA and less
