Digital LCD Display Auto Alarm System Wireless With 4 TPMS Sensor - TPMS - Shenzhen Xianghan Technology Co., Ltd.

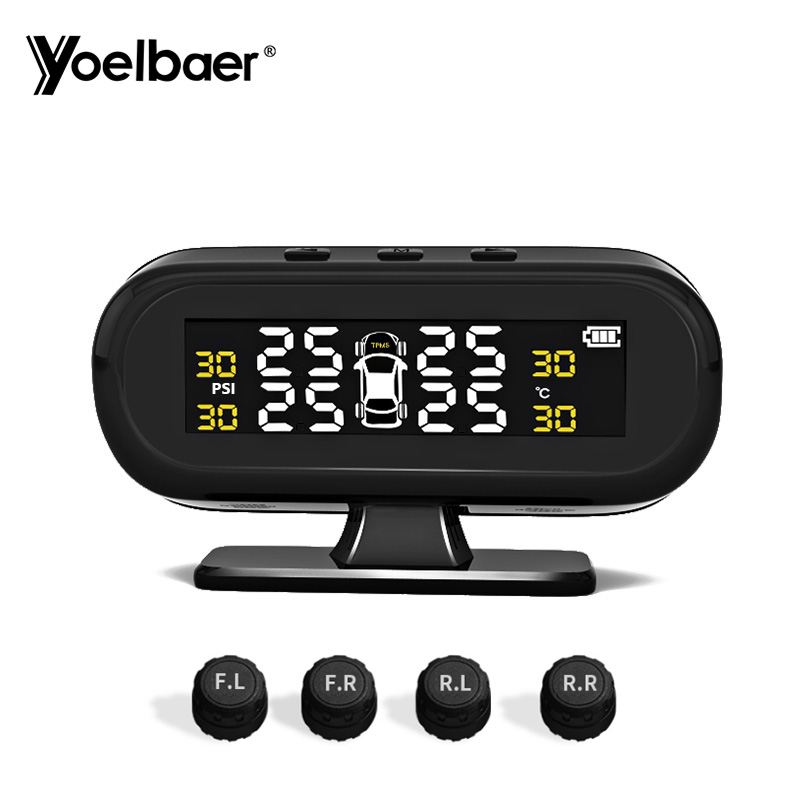

Digital LCD Display Auto Alarm System Wireless With 4 TPMS Sensor

Digital LCD Display Auto Alarm System Wireless With 4 TPMS Sensor

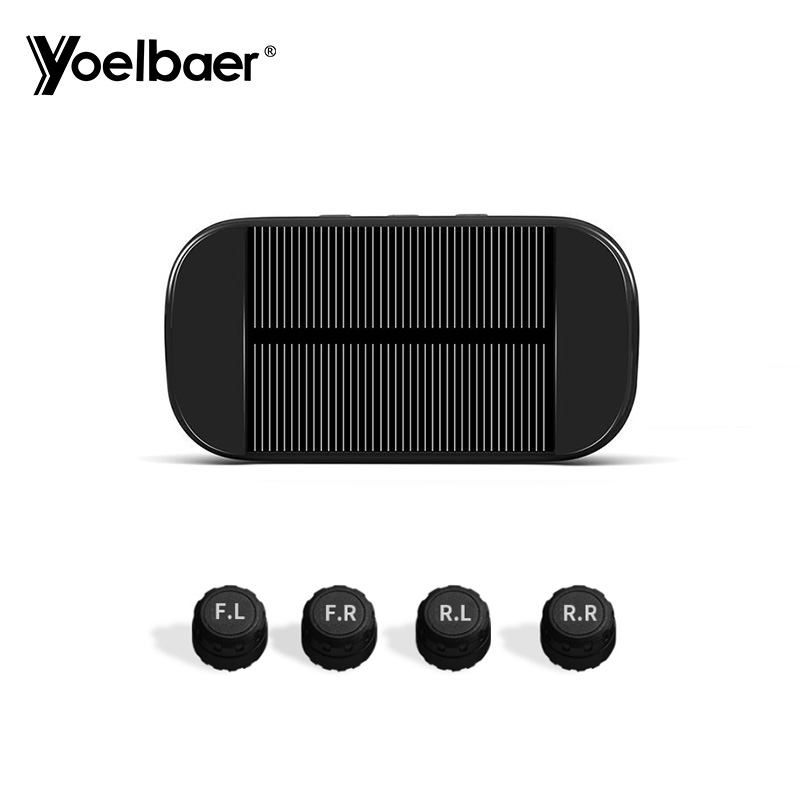

1.Use solar energy to get electricity,with 4 internal or external sensors.

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy

5.Save fuel,foresee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.

  • Product introduction

1.Use solar energy to get electricity,with 4 internal or external sensors.

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy

5.Save fuel,foresee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.

6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.

7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.

8.Sensor waterproof grade: IP67.

9..With Infineon Chip and RENATA anti-explosion battery.

New Hot Real-time Wireless Universal Car Tire Pressure Monitoring System Solar External TPMSNew Hot Real-time Wireless Universal Car Tire Pressure Monitoring System Solar External TPMSNew Hot Real-time Wireless Universal Car Tire Pressure Monitoring System Solar External TPMS



Monitor specification

Sensor specification

Operating voltage

3.7-5V

Battery life

1-3 years

Storage temperature

-30°C-90°C

Storage temperature

-30°C-90°C

Working temperature

-30°C-85°C

Working temperature

-30°C-85°C

Emission frequency

433.92MHz±50KHz

Operating voltage

2.1-3.6V

Signal sensitivity

-90dbm

Transmitted power

≤10dBm

Display mode

LCD Color display

Pressure resolution

±0.1Bar

Working pressure

0-99Psi

Pressure range

0-7.0Bar

Bright operating current

≤6mA

Waterproof grade

IP67

Black operating current

≤4mA

Lithium battery

CR1632




Car TPMS Tire Pressure Monitoring System Solar Charging HD Digital LCD Display Auto Alarm System Wireless With 4 Sensor
