2.LCD pannel,with extra Micro USB port for charging.
3.Light weight design for sensor,no need to adjust to be balance when the tire moving.
4.Real-time Monitor the tempreature and pressure with high degree accuracy
5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
2.LCD pannel,with extra Micro USB port for charging.
3.Light weight design for sensor,no need to adjust to be balance when the tire moving.
4.Real-time Monitor the tempreature and pressure with high degree accuracy
5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.

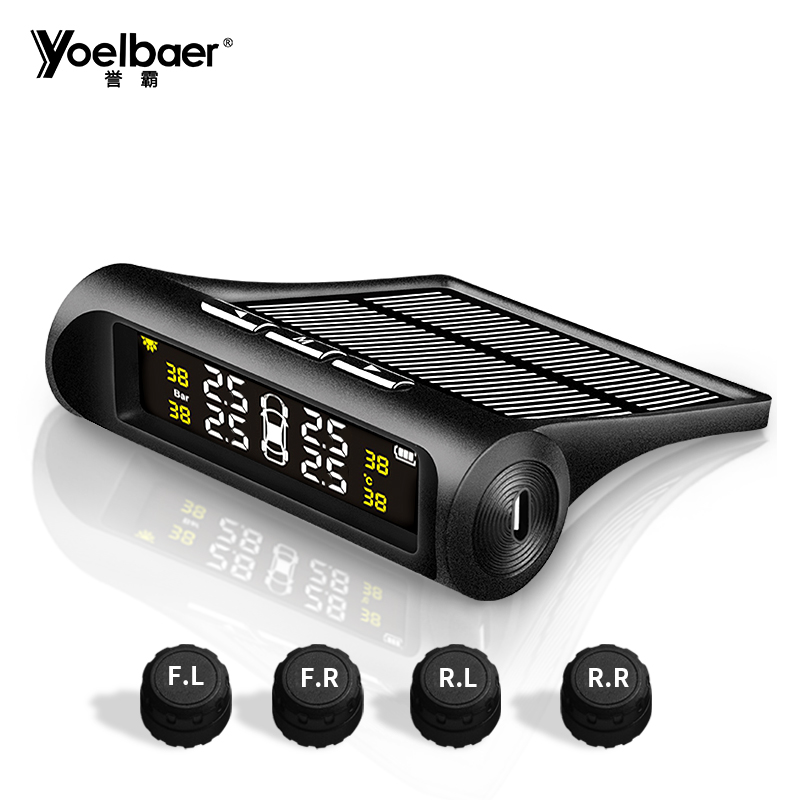

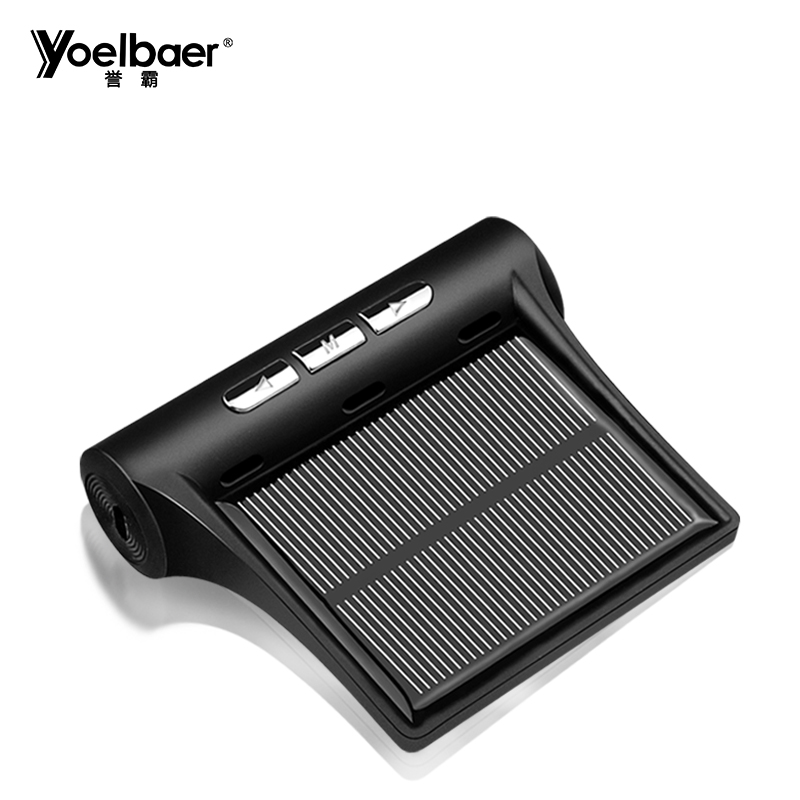

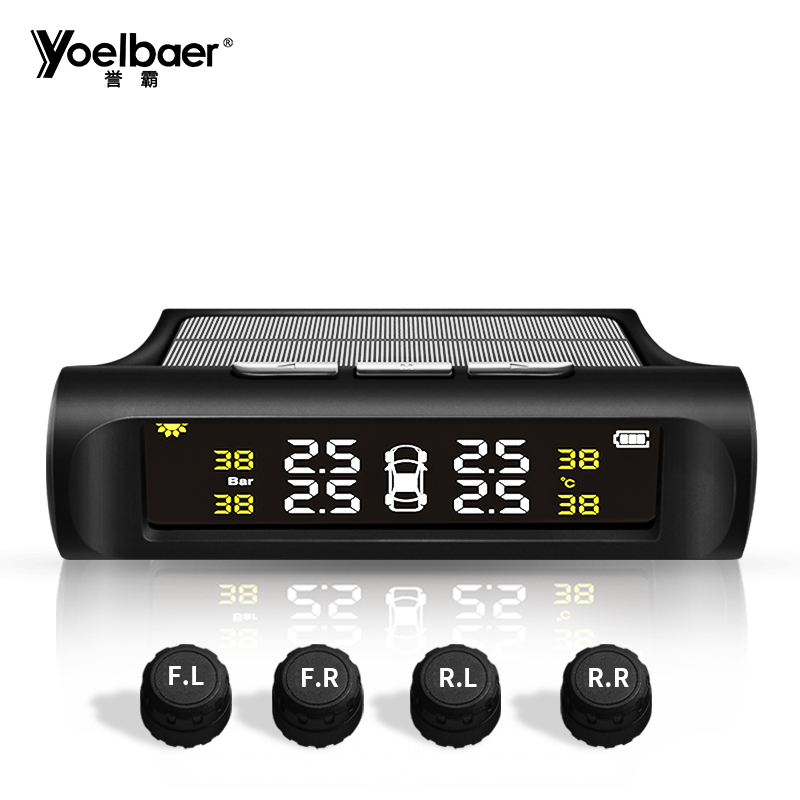

Real-time Wireless Car Tire Pressure Monitoring System Solar External Universal TPMS |
|
Monitor Specification |
|
1.Operating Voltage |
3.7-5v |
2.Storage Temperature |
-30℃-90℃ |
3.Working Temperature |
-30℃-85℃ |
4.RF Emission Frequency |
433.92MHZ+/-50MHZ |
5.Monitor Mode |
LCD Color Display |
6.Working Pressure |
0-116 PSI(Freescales) 0-72PSI(Infineon) |
7.Bright Operating Current |
≤6mA |
8.Black Operating Current |
≤4mA |
9.Size |
95*83*75MM |
10.Chip |
Infineon chip (Import from Germany) |
11. Use time/cycle |
10-15days after get full charged |
12.Factory Default Pressure |
26-46 PSI |
13.Solar Panel Battery Capacity |
400 ma |
10.NW |
0.3KG |
11.GW |
0.36KG |

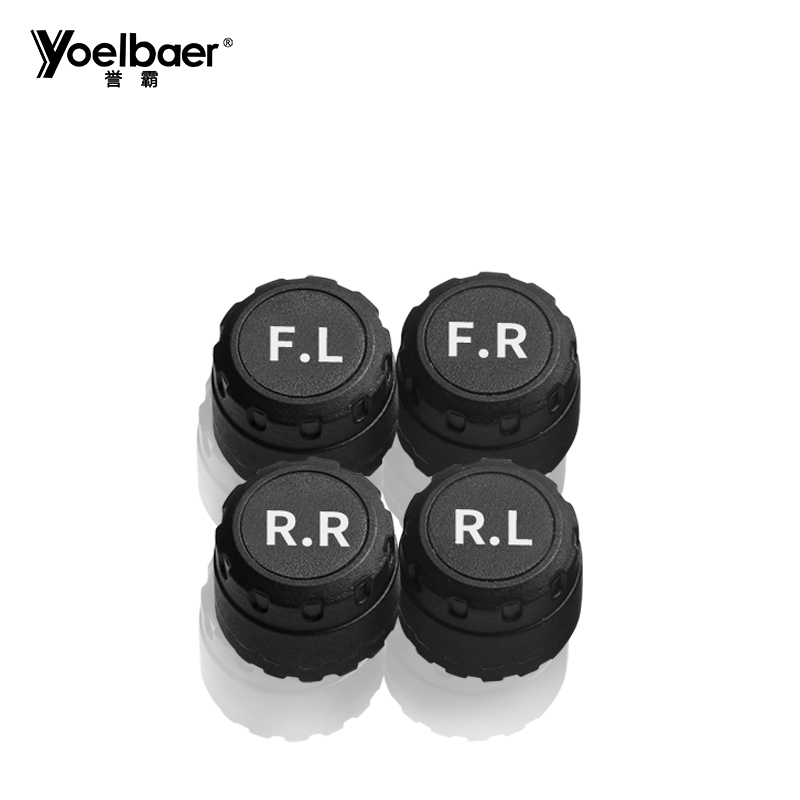

External Sensor Specification |
|
1. Battery Life |
24months |
2.Operating Voltage |
3v |
3.Storage Temperature |
-30℃-90℃ |
4.Working Temperature |
-30℃-85℃ |
5.Temperature Resolution |
+/-2℃(25℃) |
6.Pressure Range |
0-7.0Bar |
7.Waterproof Grade |
IP67 |
8.Transmitted Power |
≤10dBm |
9.Transmitted Frequency |
433.92MHZ |
10.Size |
21*17mm |
11.Weight |
9g |
--> |
