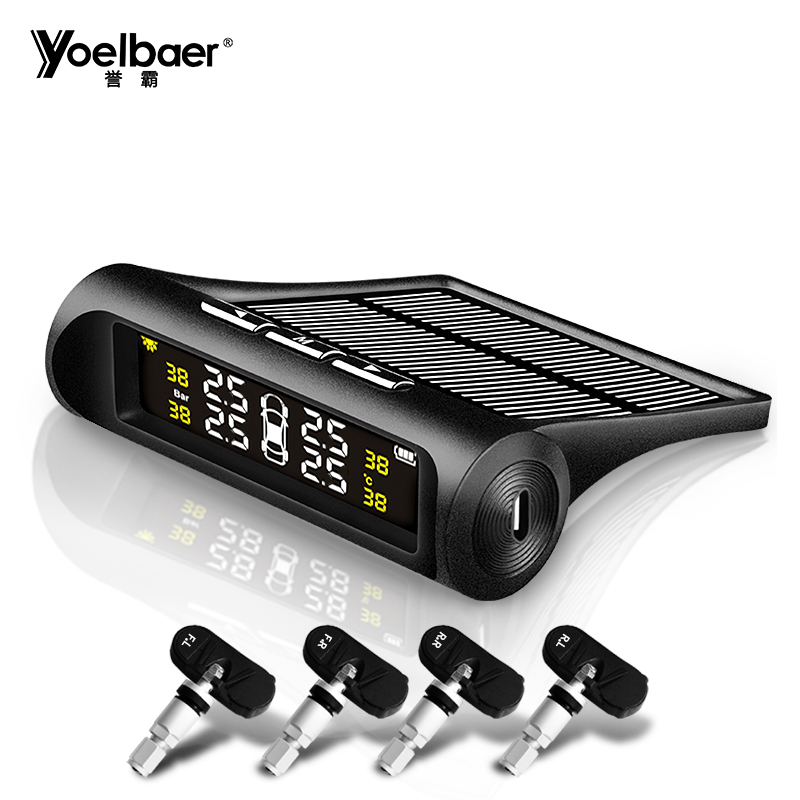

TPMS with 4 Internal Sensors

TPMS with 4 Internal Sensors

1.Use solar energy to get electricity,with 4 internal or external sensors.
2.LCD pannel,with extra Micro USB port for charging.
3.Light weight design for sensor,no need to adjust to be balance when the tire moving.
4.Real-time Monitor the tempreature and pressure with high degree accuracy
  • Product introduction
2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless LED Display TPMS with 4 External Sensor



Attention :  All products have in stocks, can ship out within 48hours with factory full inspection , best supply chain for Amazon, Ebay, Aliexpress ect.



External Battery lifespan :  Apbout 1-3 years(Depending on driving time ) Easy DIY installation done in 10 minutes.
Internal Battery lifespan: About 3-5 years(Depending on driving time ) Need to install at Car Service Shop(4S Store)










2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless LED Display TPMS with 4 External Sensor
Main Features:

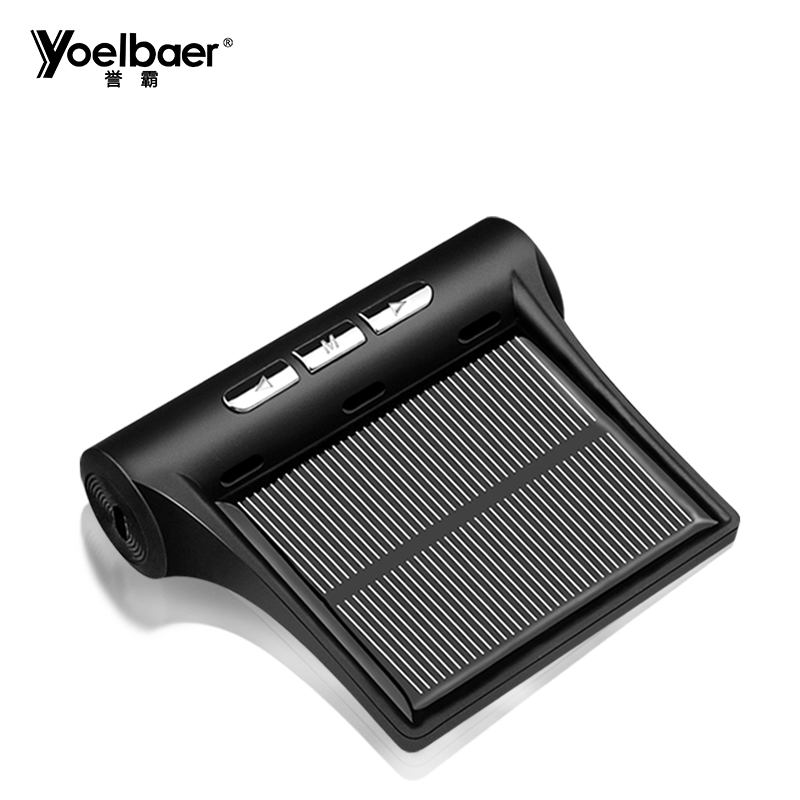

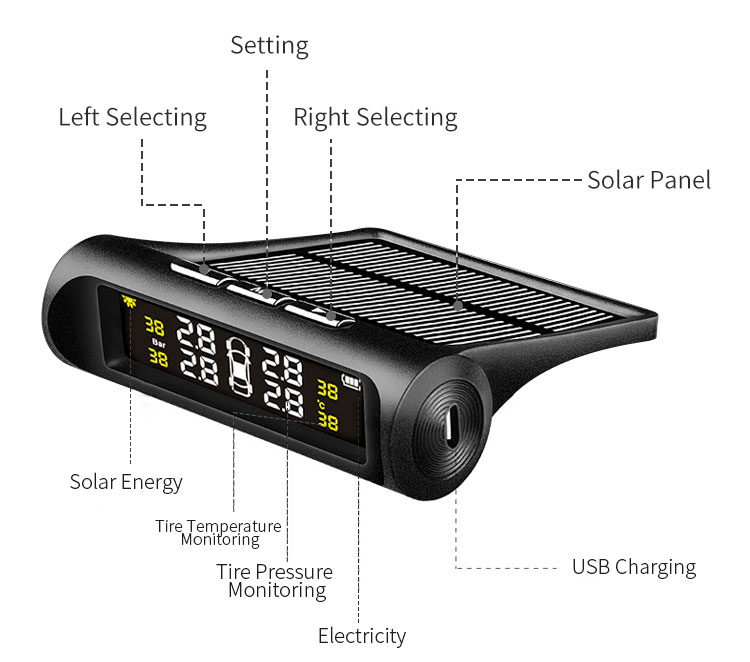

1.Use solar energy to get electricity,with 4 internal or external sensors.

2.LCD pannel,with extra Micro USB port for charging.

3.Light weight design for sensor,no need to adjust to be balance when the tire moving.

4.Real-time Monitor the tempreature and pressure with high degree accuracy

5.Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.

6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.

7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.

8.Support tire position exchange function.

9.Sensor waterproof grade: IP67.

10.With Infineon Chip and RENATA anti-explosion battery.

11.2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless LED Display TPMS with 4 Internal Sensor



2018 New Car Tire Pressure Monitoring Intelligent System Solar Power Wireless LED Display TPMS with 4 Internal Sensor

Monitor Specification



1.Operating Voltage

3.7-5v

2.Storage Temperature

-30℃-90

3.Working Temperature

-30℃-85

4.RF Emission Frequency

433.92MHZ+/-50MHZ

5.Monitor Mode

LCD Color Display

6.Working Pressure

0-102 PSI(Freescale) 0-72PSI(Infineon)

7.Bright Operating Current

6mA

8.Black Operating Current

4mA

9.Size

95*83*75MM

10.Chip

Infineon (Import Germany)Freescale(USA)

11. Use time/cycle

10-15days after get full charged

12.Factory Default Pressure

26-46 PSI

13.Solar Panel Battery Capacity

400 ma

10.NW

0.3KG

11.GW

0.36KG

External Sensor Specification



1. Battery Life

24months

2.Operating Voltage

3v

3.Storage Temperature

-30℃-90

4.Working Temperature
