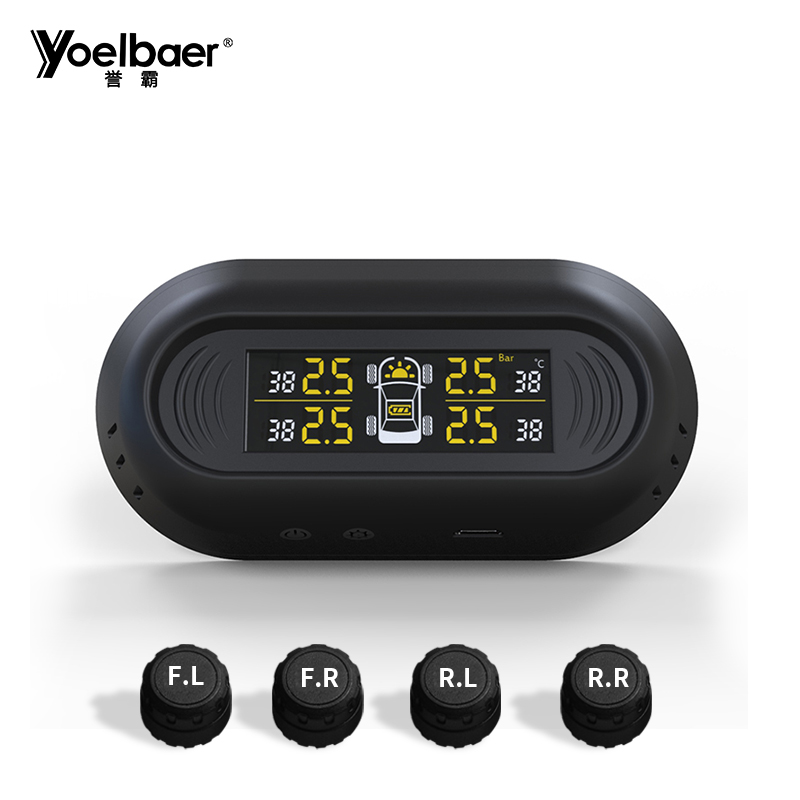

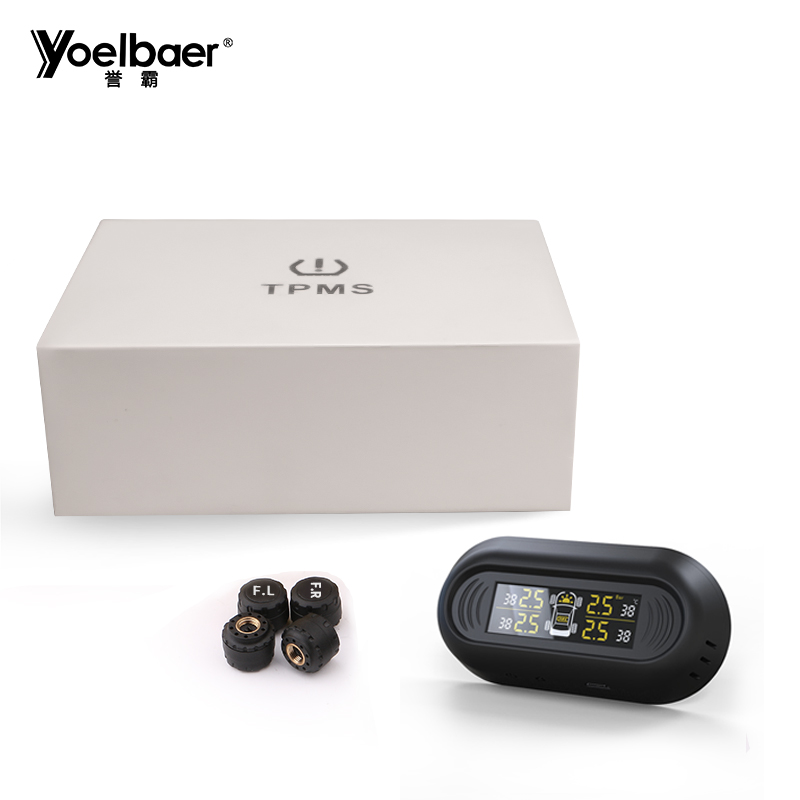

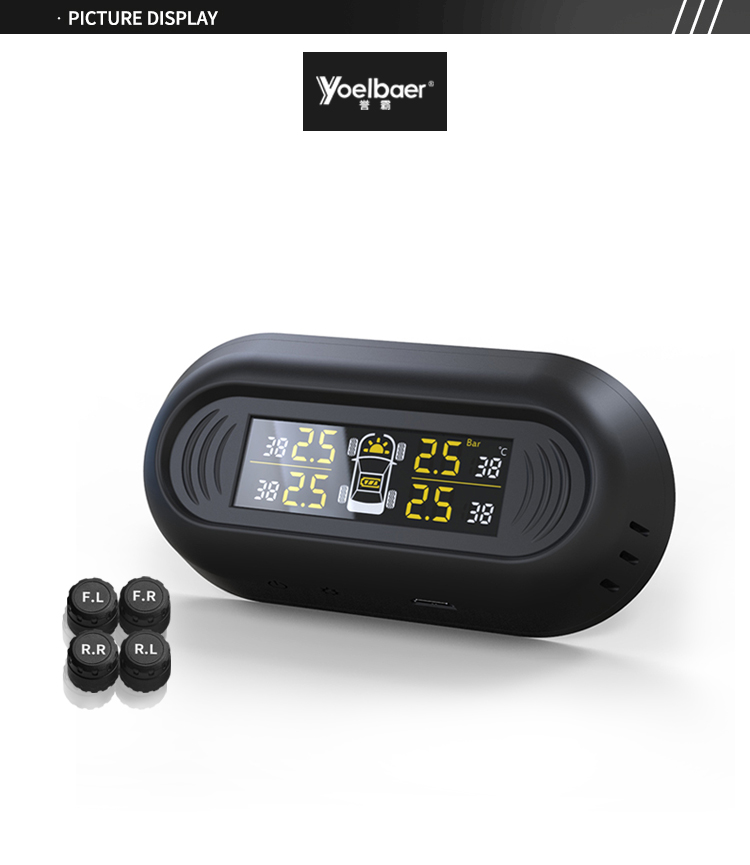

Factory Supply TPMS With External Sensors Solar Car TPMS

Factory Supply TPMS With External Sensors Solar Car TPMS

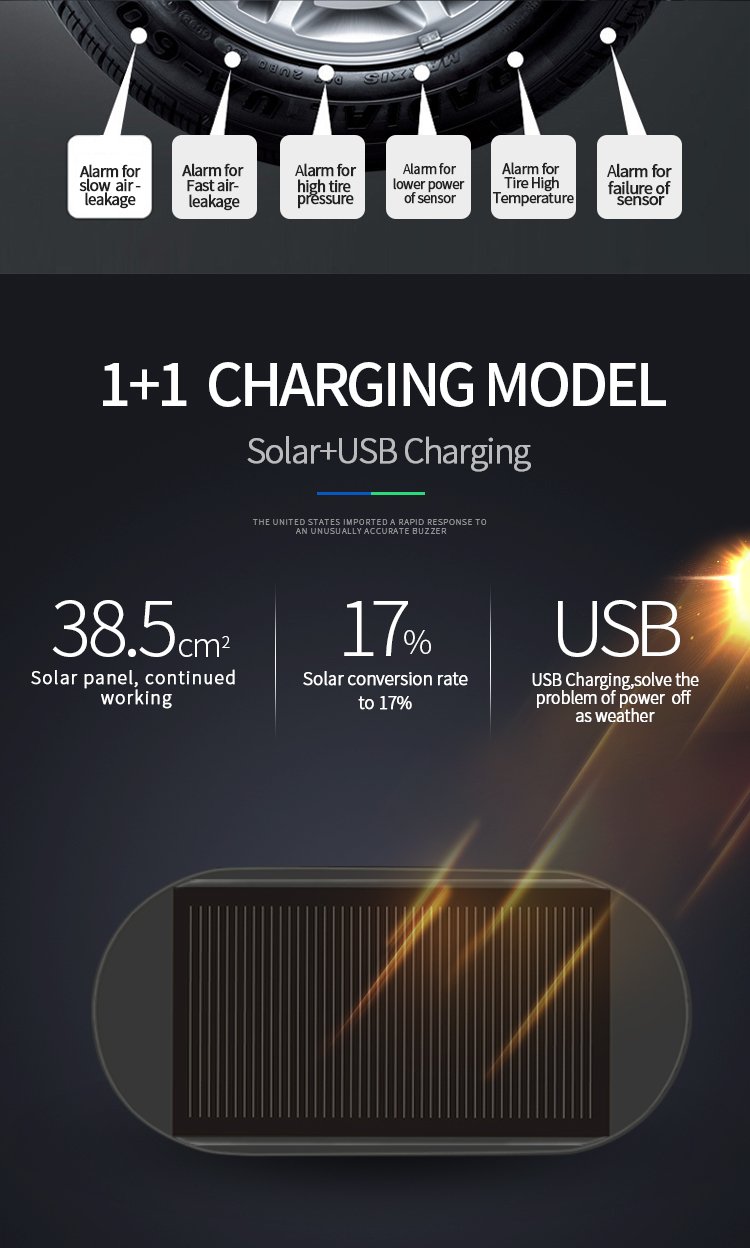

1.Solar power and USB dual charging,LCD color display,automatic brightness adjustment

2.Real-time monitoring the pressure and temperature, 4 tires data displayed simultaneously

3.Wireless transmission technology,100% DIY installation

4.With built-in rechargeable explosion proof lithium battery,panasonic cr1632

5.Vibration awaken controlled by G-sensor, Solution:Infineon

6.Support' BAR' 'PSI' unit optional

7.Wireless monitor could be placed anywhere


  • Product introduction

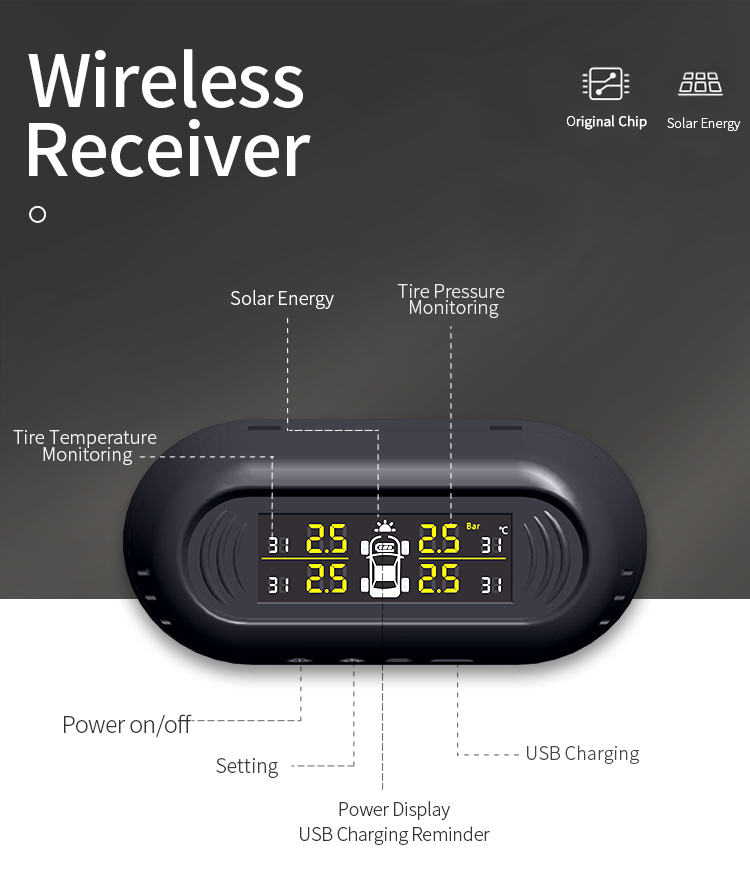

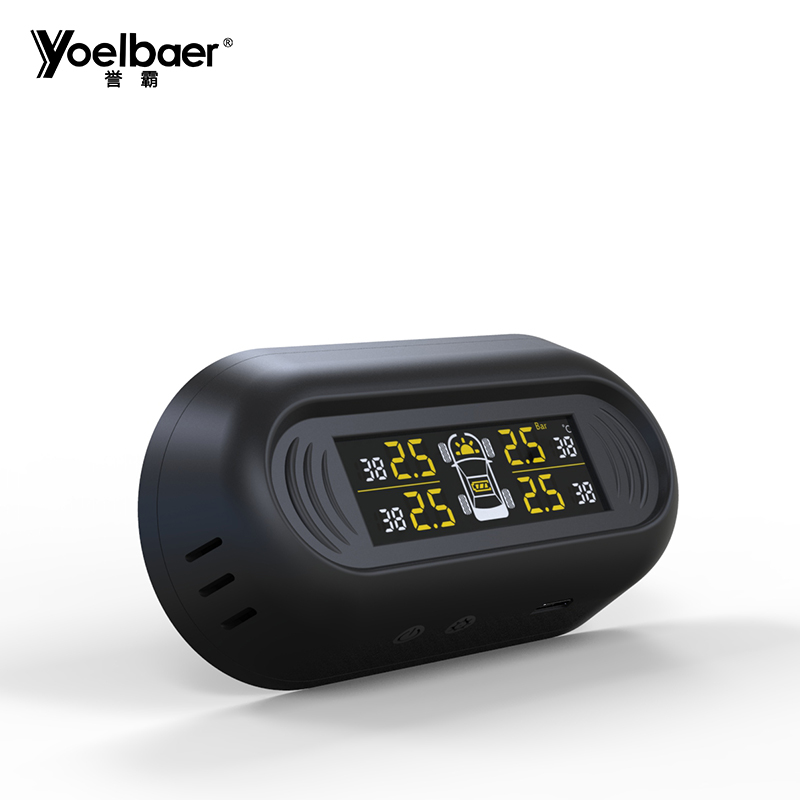

Monitor Parameter:

Operating voltage 3.7-5V
Storage temperature -30°C-90°C
Working temperature -30°C-85°C
RF Emission frequency 433.92MHz±50KHz
RF Signal sensitivity -90dbm

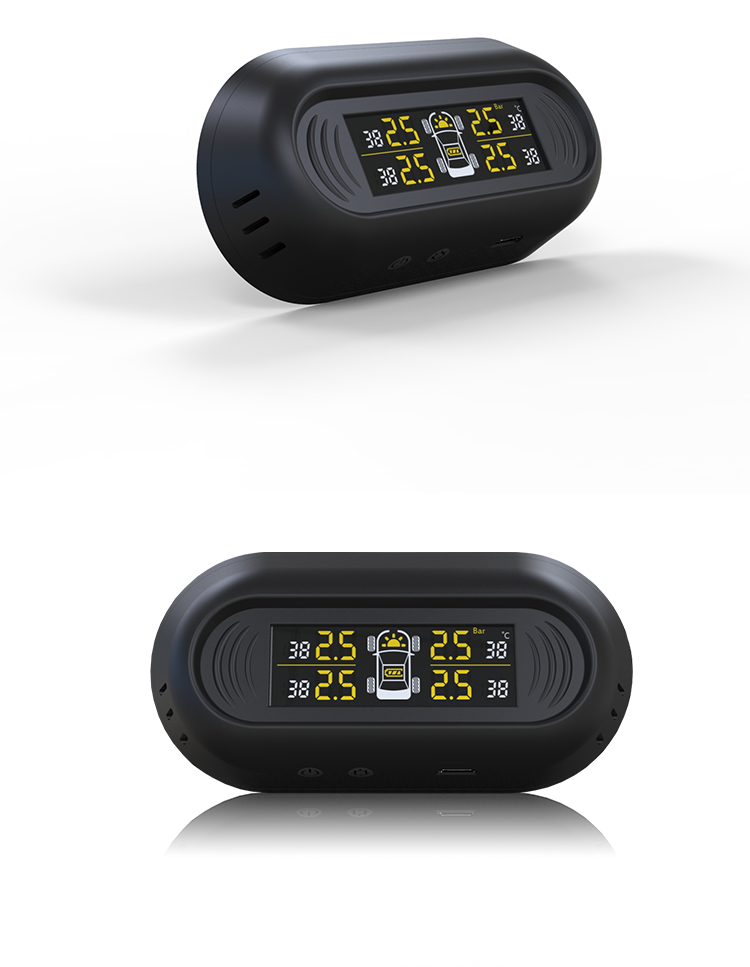

Display mode LCD Color display
Working pressure 0-99Psi
Bright operating current ≤6mA
Black operating current ≤4mA
Size 100MM*65MM

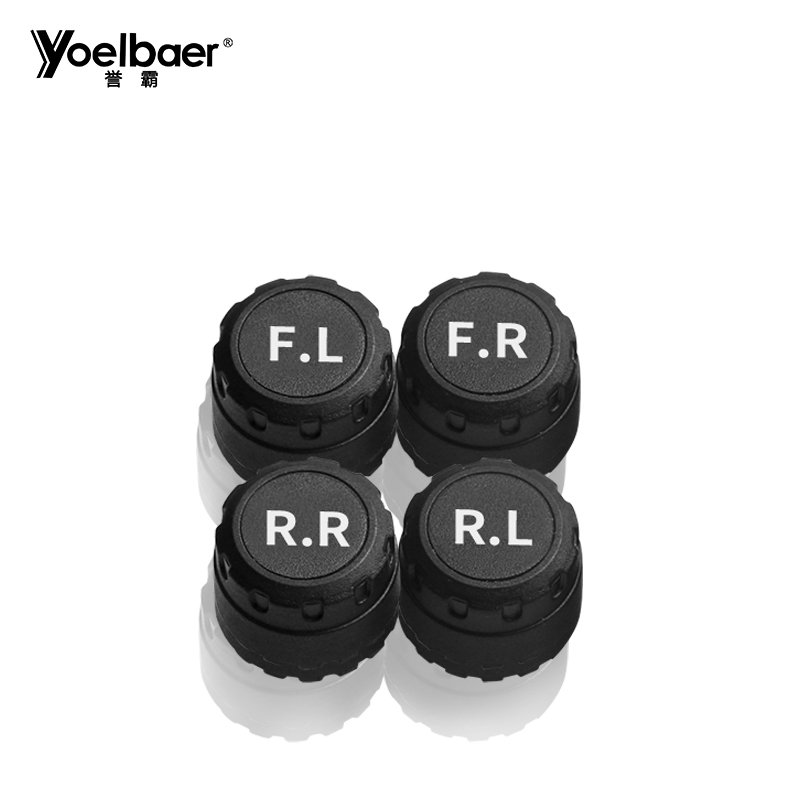

Sensor Parameter:

Battery life 2 years
Operating voltage 2.1-3.6V
Storage temperature -30°C-90°C
Working temperature -30°C-85°C
Temperature resolution ±2°C(25°C)
Pressure range  0-7.0Bar
Pressure resolution ±0.1Bar
Waterproof grade IP67
Transmitted power ≤10dBm
Transmit frequency 433.92MHz
Weight ≤8g
Size 21mm*17mm
Lithium battery CR1632(Model)
