1.Chip:HD CCD
2.TV system:NTSC60HZ
3.Effective pixels:648 x 488 Pixels
4.Sensing area:5.961 x 4.276mm
5.Horizontal resolution: 480TVL
6.Shutter speed: 1/60-20us
7.Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
8.White balance: Auto
9.Waterproof: IP67
10.Video output: 1.0Vp-p, 75ohm
11.Current Consumption: Not More than 150mA

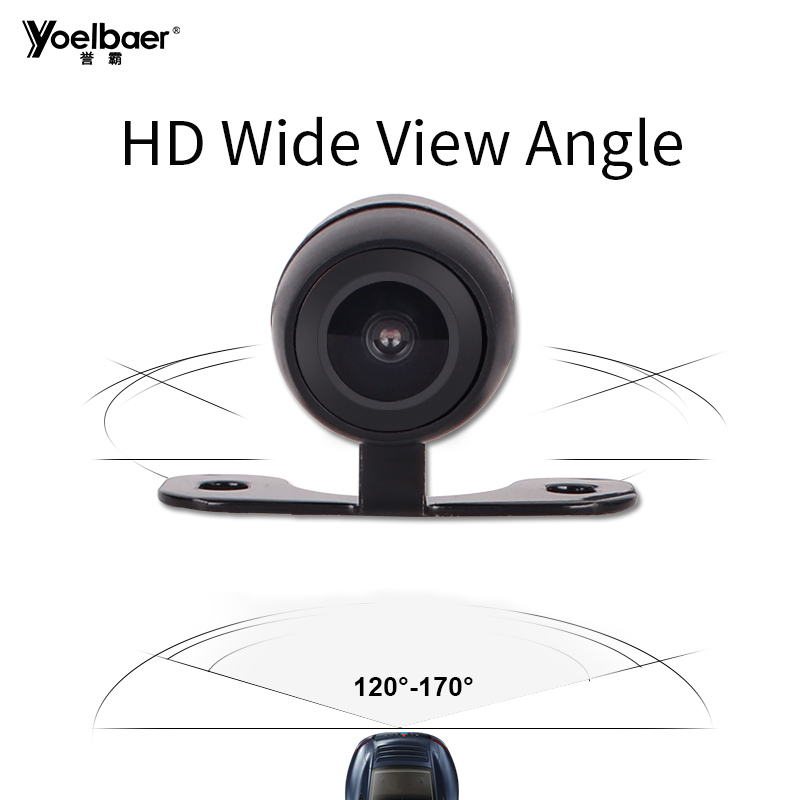

12.View Angle : 120 Degree
13.Power supply: DC 9-12V
14.Operating Temperature: -20°C~ 70°C, RH95% Max.
15.Storage Temperature: -30°C ~ 85°C, RH95% Max.
16.Horizontal synchronization frequency:15625KHZ
17.SNR:>48dB
18. Power : Approx 7W

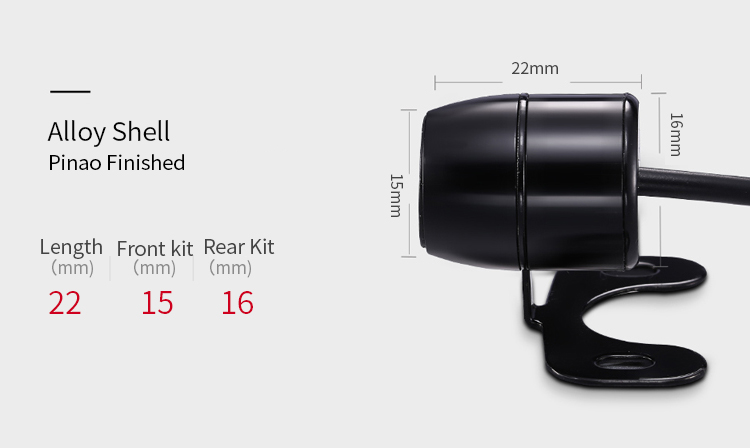

19.Size : 22*16*15mm
20.Holder size : 40*22mm

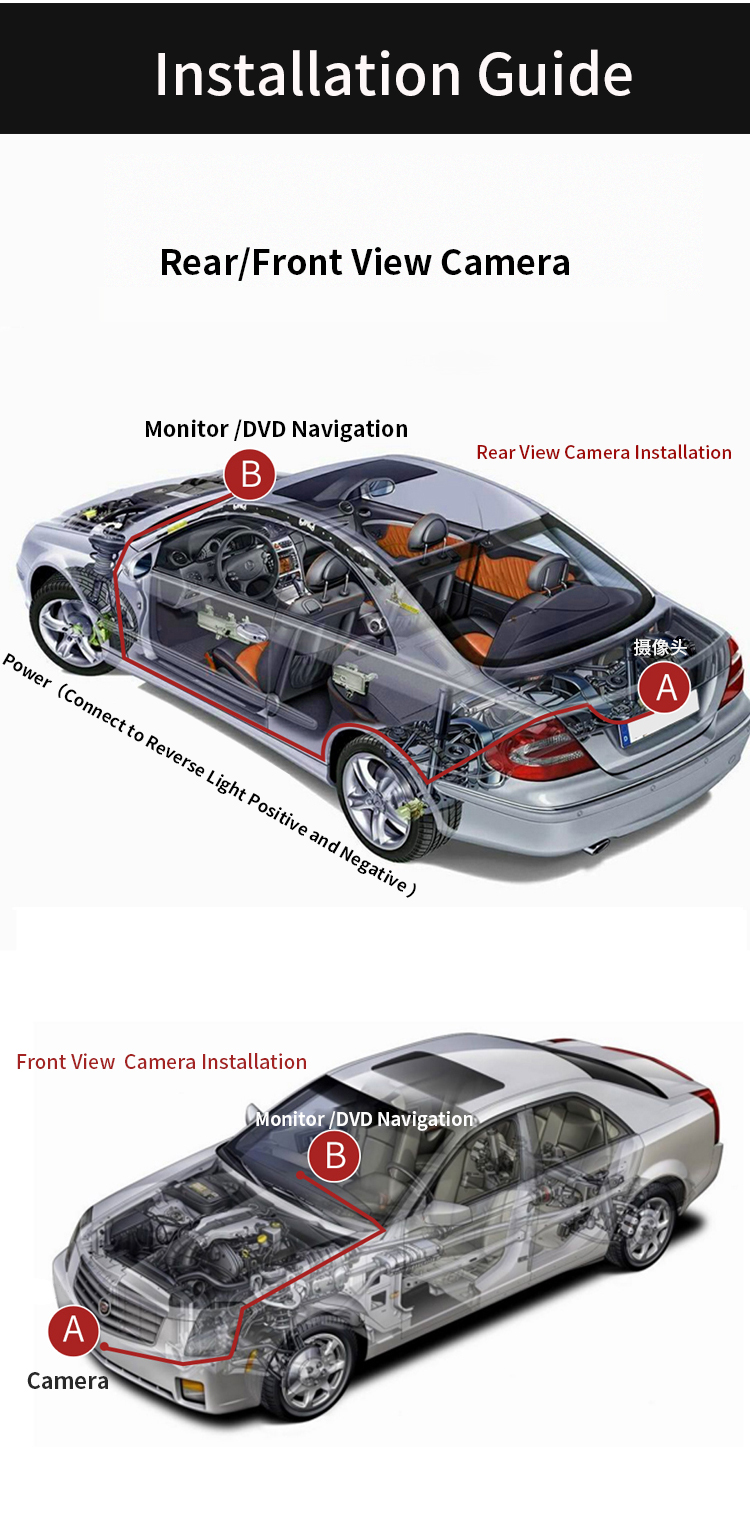

It is with 480TV line resolutions, with super wide view angle, it is up to 120 degree view anlge. The compact size is easy to hide in the car.The camera is easy installed into universal car,van,lorry for rear view parking.
