Yoelbaer 12V waterproof rear mirror security camera for car camera car reverse
1 .High-definition and 120 degree wide viewing angles
2.With good waterproof function.
3.Applicable to variety of Vehicles: car, truck, RV, mini-van etc
4.Solve the issue of bad car rear view effect, can help reduce incidents and accident.
5.Support LED Night color CCD image
6.Support NTSC/ PAL TV system
7.With its elegant and contemporary design, this camera is very popular
8.When the car back up, the Image will show Reverse leading line
9.Made of high quality and durable material
10.Its simple and modest design and small size won't draw any attention.
Yoelbaer 12V waterproof rear mirror security camera for car camera car reverse
1 .High-definition and 120 degree wide viewing angles
2.With good waterproof function.
3.Applicable to variety of Vehicles: car, truck, RV, mini-van etc
4.Solve the issue of bad car rear view effect, can help reduce incidents and accident.
5.Support LED Night color CCD image
6.Support NTSC/ PAL TV system
7.With its elegant and contemporary design, this camera is very popular
8.When the car back up, the Image will show Reverse leading line
9.Made of high quality and durable material
10.Its simple and modest design and small size won't draw any attention.
- Product introduction

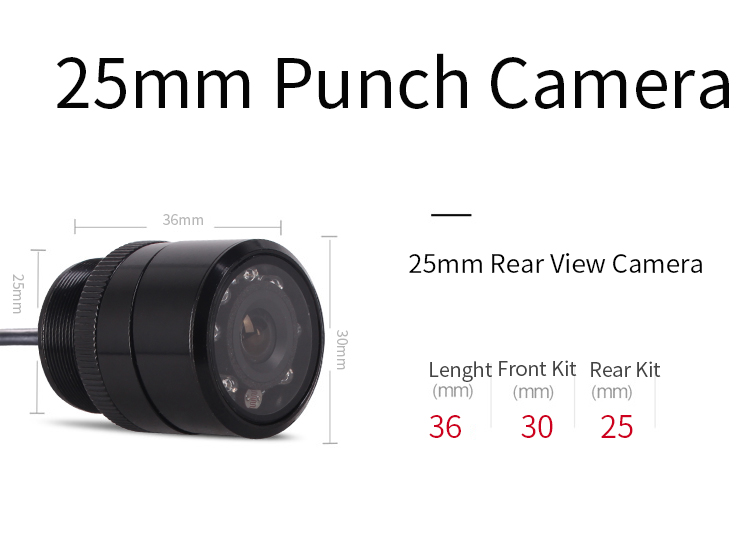

25mm HD CCD Rearview Car Camera
1.Chip: HD CCD
2.TV system:NTSC60HZ
3.Effective pixels:648 x 488 Pixels
4.Sensing area:5.961 x 4.276mm
5.Horizontal resolution: 480TVL
6.Shutter speed: 1/60-20us
7.Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
8.White balance: Auto
9.Waterproof: IP67
10.Video output: 1.0Vp-p, 75ohm
11.Current Consumption: Not More than 150mA

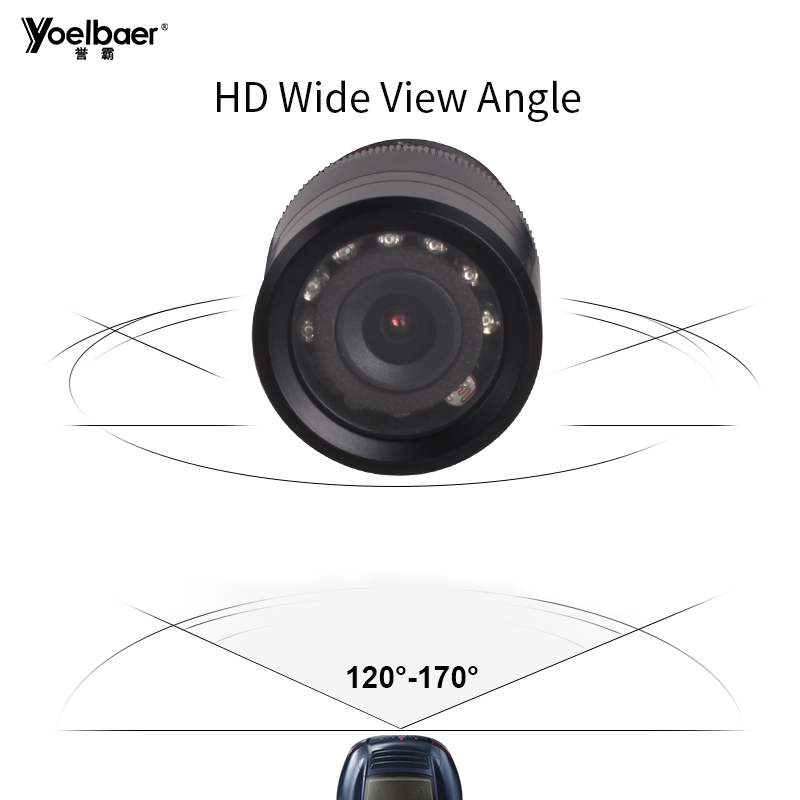

12.View Angle : 120 Degree
13.Power supply: DC 9-12V
14.Operating Temperature: -20°C~ 70°C, RH95% Max.
15.Storage Temperature: -30°C ~ 85°C, RH95% Max.
16.Horizontal synchronization frequency：15625KHZ
17.SNR:＞48dB
18.Power : Approx 7W
19.Default with Parking line for Rearview ,Front view customized accept
