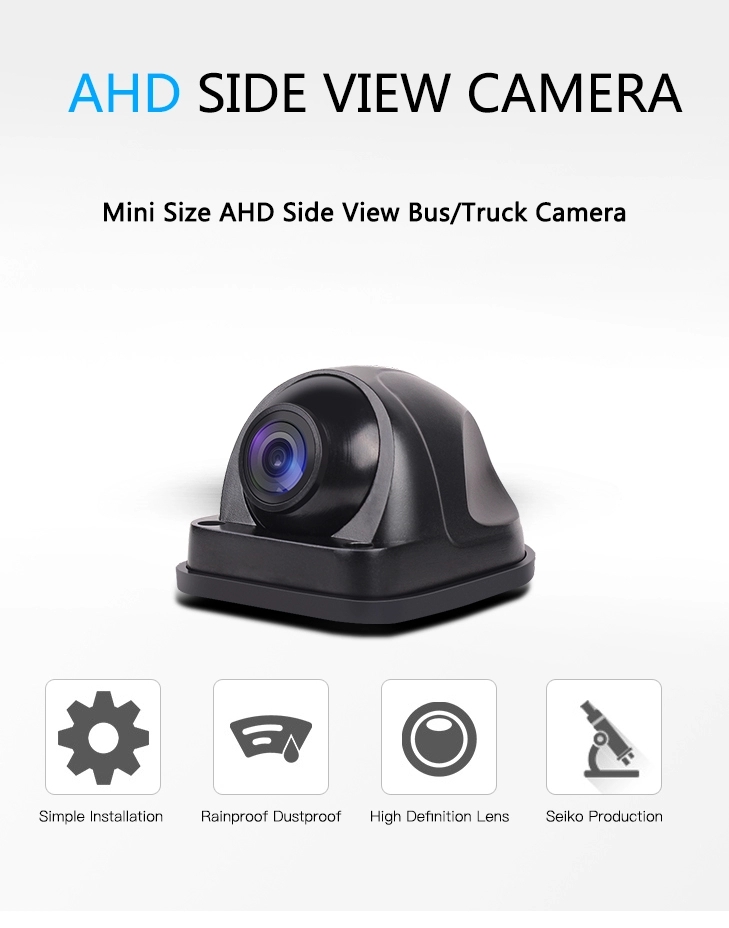

Factory Price AHD IR Night Vision 720P 960P Side View Rear Front Camera

Factory Price AHD IR Night Vision 720P 960P Side View Rear Front Camera

* Waterproof,Can be used both in Bus Truck Caravan Motorhome
* 600 TV Line
* Support PAL Video system
* 120°wide viewing angle
* Applicable to variety of Vehicles: car, truck, RV, mini-van etc
* Can help avoid incidents and accidents abrasion well
* Super clear image
  • Product introduction
BUS/Truck AHD  Camera

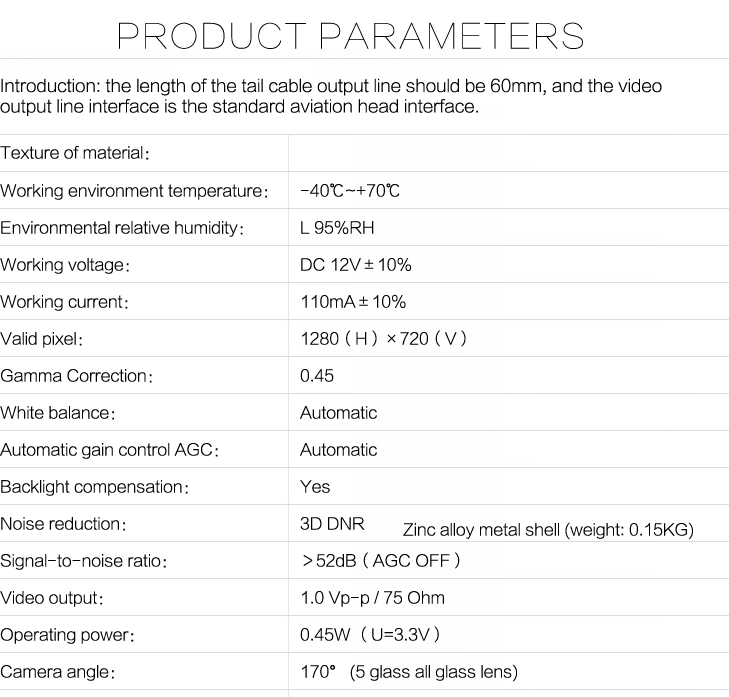

1.Chip: AHD720P
2.TV system: PAL50HZ
3.Effective pixels:720P
4.Sensing area:5.961 x 4.276mm
5.Horizontal resolution: 600TVL
6.Shutter speed: 1/60-20us
7.Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
8.White balance: Auto
9.Waterproof: IP67
10.Video output: 1.0Vp-p, 75ohm
11.View Angle : 120 Degree
12.Power supply: DC12V
13.Operating Temperature: -20°C~ 70°C, RH95% Max.
14.Storage Temperature: -30°C ~ 85°C, RH95% Max.
15.Horizontal synchronization frequency:15625KHZ
16.SNR:>48dB
17. Power : 7W
18. Size :  73*40*25MM
19. Default Front view without parking line.Rearview Customized Accept
