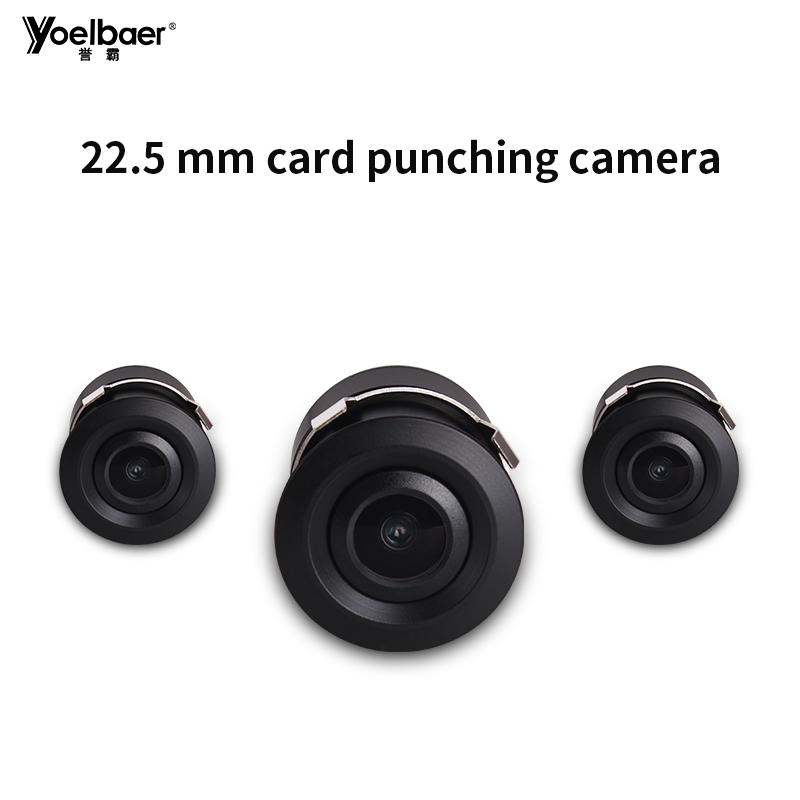

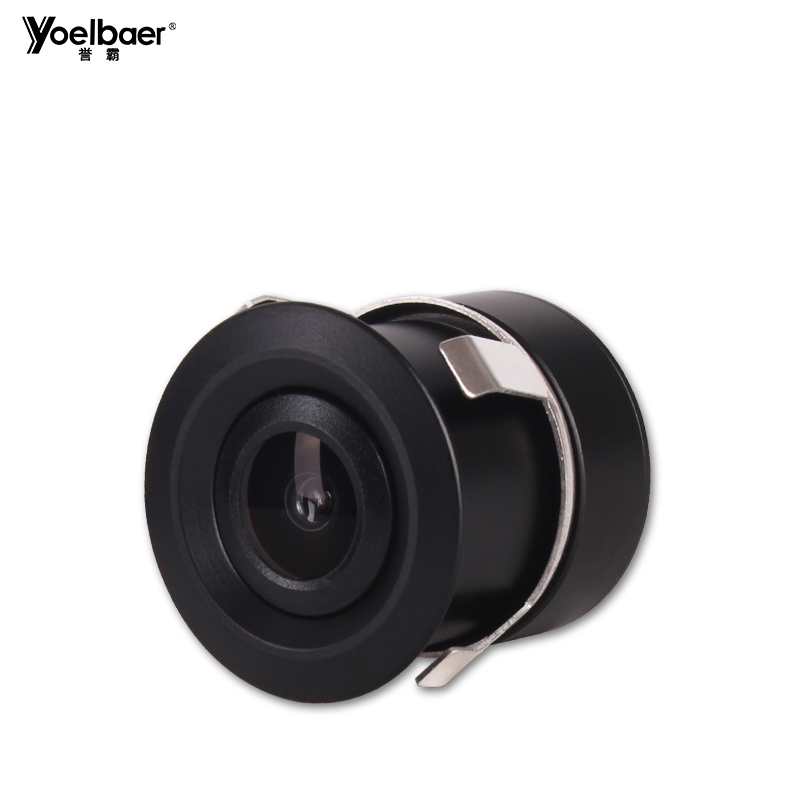

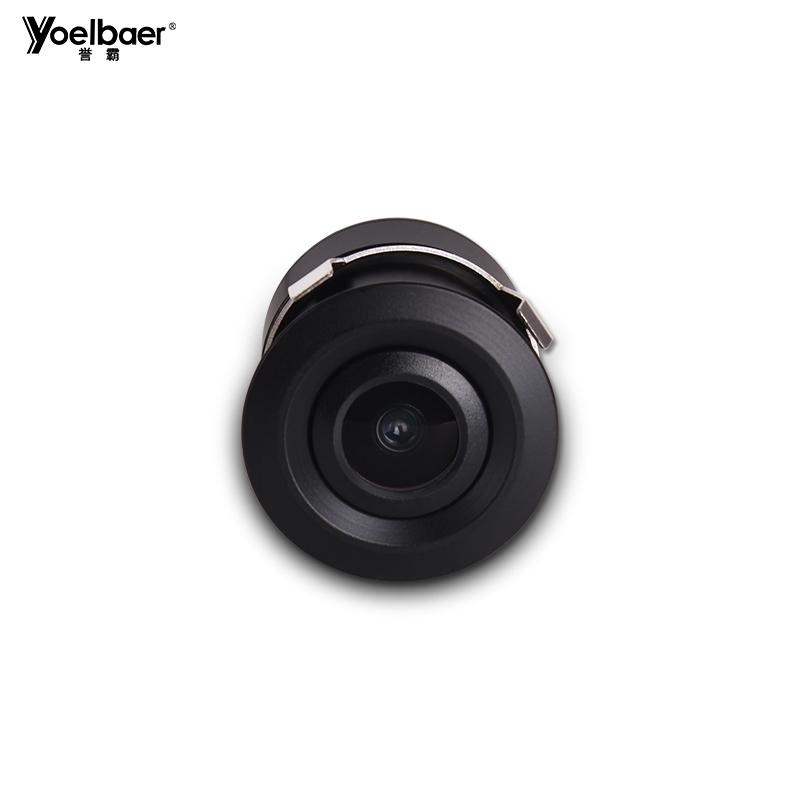

Wide angle 170 degree 22.5mm camera car reversing camera car back up camera

Wide angle 170 degree 22.5mm camera car reversing camera car back up camera

1.Anti fog glass.
2.CCD imaging sensor.
3.Support NTSC/PAL video system.
4.High grade of waterproofing: IP67.
5.High-definition and 170 degrees wide viewing angle.
6.Applicable to variety of vehicles: car, truck, RV, etc.
7.Easy to install.Its simple and modest design and small size won't draw any attention.
8.It helps to avoid incidents and accidents abrasion well.
  • Product introduction


Wide angle 170 degree 22.5mm camera car reversing camera car back up camera











Wide angle 170 degree 22.5mm camera car reversing camera car back up camera

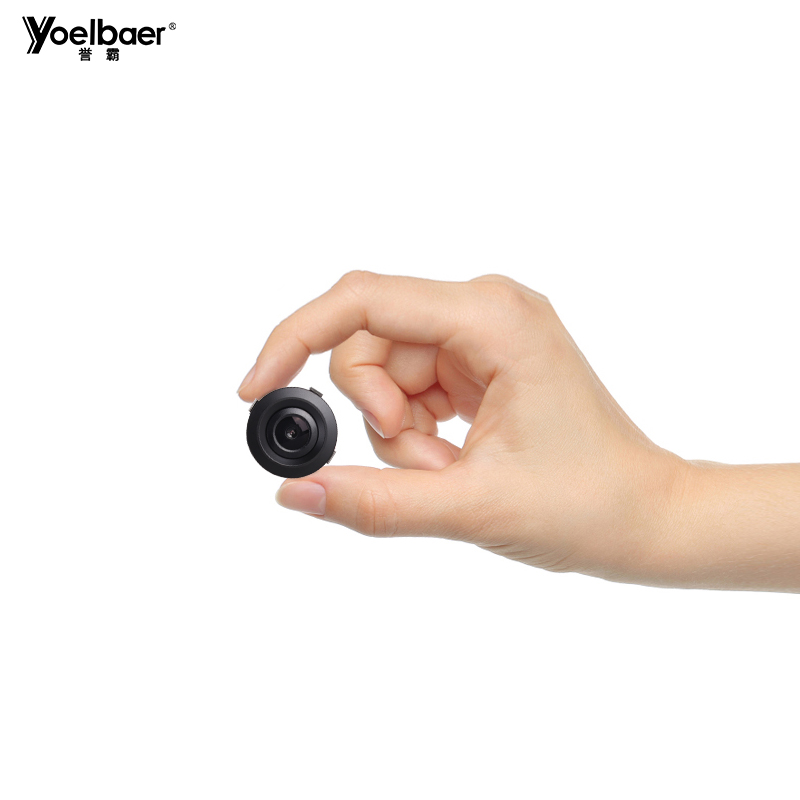

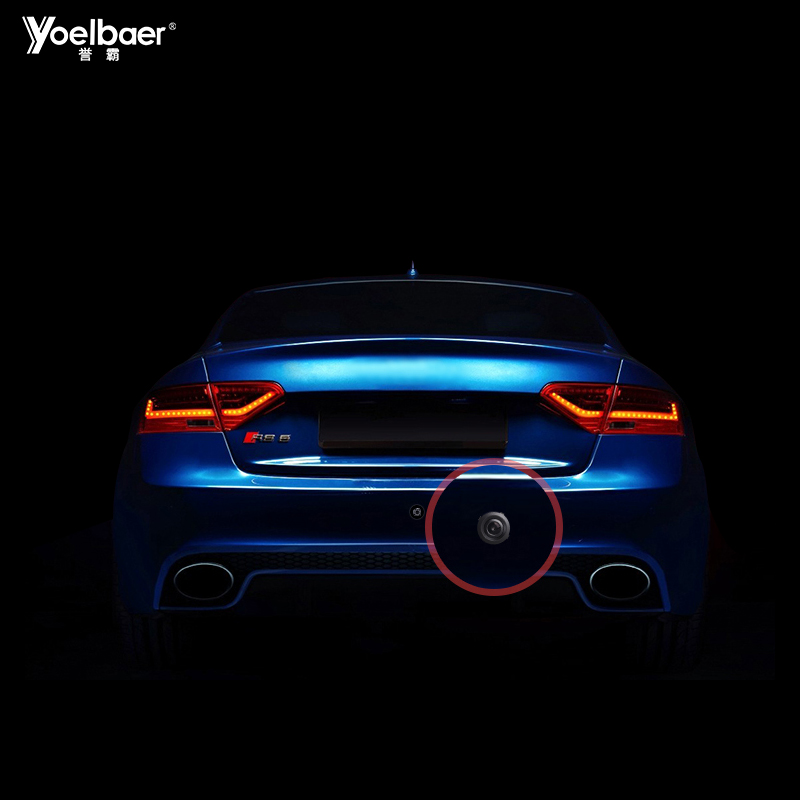

it is with 480TV line resolutions, with super wide view angle, it is up to 170 degree view anlge. The compact size is easy to hide in the car.The camera is easy installed into universal car,van,lorry for rear view parking.



                       Get more information, please click here



1 Professional factory.

2 High quality and competitive price

3 OEM/ODM service can be accepted

4 7*24h after-sales service

5 Warranty:12 months

6 100% inspection before the products out of the factory.



Camera Description:



Features:

1.Anti fog glass.
2.CCD imaging sensor.
3.Support NTSC / PAL video system.
4.High grade of waterproofing: IP67.
5.High-definition and 170 degrees wide viewing angle.
6.Applicable to variety of vehicles: car, truck, RV, etc.
7.Easy to install.
8.Its simple and modest design and small size won't draw any attention.
9.It helps to avoid incidents and accidents abrasion well.



Parameters:

1.Chip:HD CCD
2.TV system:NTSC60HZ
3.Effective pixels:648 x 488 Pixels
4.Sensing area:5.961 x 4.276mm
5.Horizontal resolution: 480TVL
6.Shutter speed: 1/60-20us
7.Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
8.White balance: Auto
9.Waterproof: IP67
10.Video output: 1.0Vp-p, 75ohm
11.Current Consumption: Not More than 150mA
12.View Angle : 120 Degree
13.Power supply: DC 9-12V
14.Operating Temperature: -20°C~ 70°C, RH95% Max.
15.Storage Temperature: -30°C ~ 85°C, RH95% Max.
16.Horizontal synchronization frequency:15625KHZ
17.SNR:>48dB

18. Power : Approx 7W

19. Default with Parking line for Rearview ,Front view customized accepted

Wide angle 170 degree 22.5mm camera car reversing camera car back up cameraWide angle 170 degree 22.5mm camera car reversing camera car back up cameraWide angle 170 degree 22.5mm camera car reversing camera car back up cameraWide angle 170 degree 22.5mm camera car reversing camera car back up cameraWide angle 170 degree 22.5mm camera car reversing camera car back up camera

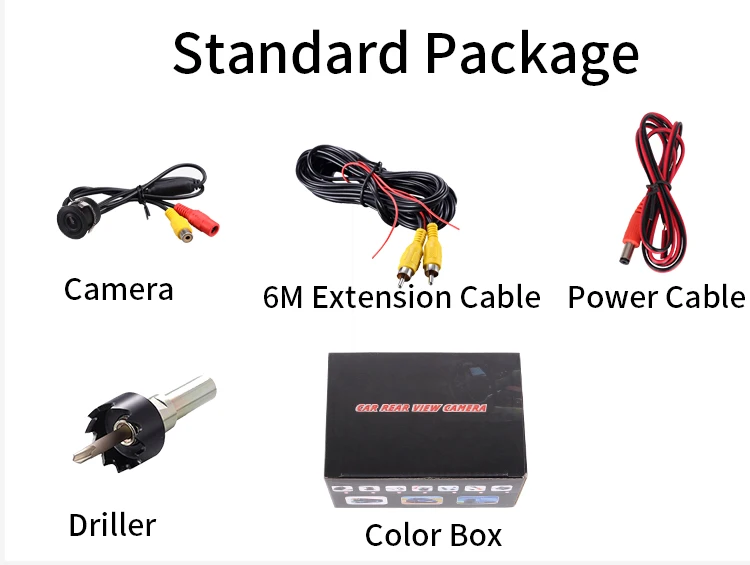

Package:

 Wide angle 170 degree 22.5mm camera car reversing camera car back up camera
