Wireless Dual Backup Car Rearview Camera Parking Assistance System Waterproof
Wireless Dual Backup Car Rearview Camera Parking Assistance System Waterproof
- Product introduction
7 Inch Back Security Wireless System Security Camera Wireless Back Up Cameras
Operating Frequency: 2400-2483.5 Mhz Standard: 2370Mhz
Transmission distance: 50 meters
Compression format: MPEG 4 video
Transmit frequency:18 dBm
Transmission speed:12 Mbps
FHSS: Frequency Hopping Spread Spectrum
Hopping rate:1200 / S
Screen size: 7-inch16: 9 wide screen
Resolution: 800R.G.B x 480 dots
System: PAL / NTSC
Operating voltage: 12V / 24V DC
Power: ≤8.64W
Operating temperature: -10 degree to + 65 degree
Optional: audio
2.4GHz analog wireless camera:
Notice: The real camera is no parking line, the picture is an installation guide.
Product Description
Features:
1. 7-Inch TFT LCD widescreen wireless monitor--With high resolution image, full color display and low power consumption.
2. Two Wireless Ir Night Vision Waterproof Rearview Back Up Reverse Cameras --Auto Water-resistent Camera Lens, with 18 individual Infrared (IR) LED. Effective range up to 15m.
3. 2 Cameras 2 Video Inputs--A camera mounted on the front of the car and the second in the back of the car. You can press the switch button to view the back and front of cars
4. Easy to install--Wireless parking assistance; The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.
5. IP 67 waterproof grade can cope with marine environment. Hard Metal Cased Camera; Waterproof and Mud proof; It can last for longer without heating up, so you can show the rearview all time.

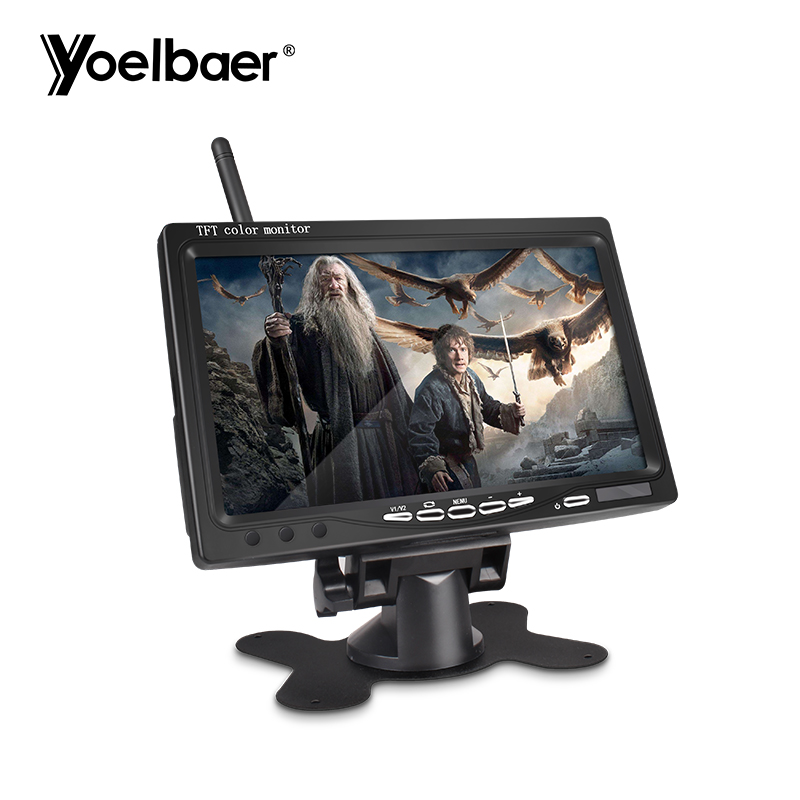

2.4GHz analog wireless 7 inch color monitor:
Operating Frequency: 2400-2483.5 Mhz Standard: 2370Mhz
Transmission distance: 50 meters
Compression format: MPEG 4 video
Transmit frequency:18 dBm
Transmission speed:12 Mbps
FHSS: Frequency Hopping Spread Spectrum
Hopping rate:1200 / S
Screen size: 7-inch16: 9 wide screen
Resolution: 800R.G.B x 480 dots
System: PAL / NTSC
Operating voltage: 12V / 24V DC
Power: ≤8.64W
Operating temperature: -10 degree to + 65 degree
Optional: audio

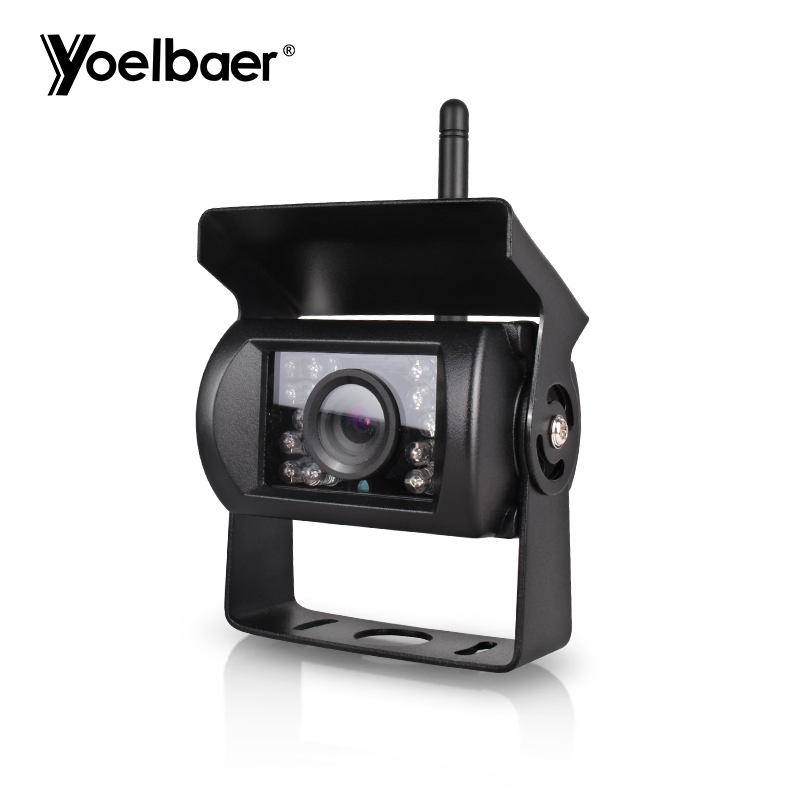

2.4GHz analog wireless camera:
Standard NTSC: 510 * 492 pixels, PAL: 510 * 582 pixels
Resolution: 420 TVL
Lens: 2.5mm
Minimum illumination: 0Lux (LED ON)
Infrared light: 18pcs
Night vision distance:15 meters
Waterproof: IP67
Angle:120 °
Operating voltage: 12 / 24V DC
Operating temperature: -20 degree ~ + 70 degree
Shell Material: Aluminum
Mount material: Metal
Resolution: 420 TVL
Lens: 2.5mm
Minimum illumination: 0Lux (LED ON)
Infrared light: 18pcs
Night vision distance:15 meters
Waterproof: IP67
Angle:120 °
Operating voltage: 12 / 24V DC
Operating temperature: -20 degree ~ + 70 degree
Shell Material: Aluminum
Mount material: Metal
Package Include:
1 x Car Monitor
1 x Car Camera
1 x Mount Bracket
1 x Power Cable
1 x Remote Controller
2 x Antennas
1 x User Manual
Notice: The real camera is no parking line, the picture is an installation guide.
