Video Recorder 10.1 Inch Monitor 1080P Surveillance 8CH Security CCTV SD 4G MDVR
1.360° Surveillance & Recording: support 8 channel waterproof sync recording cameras (Front/Left/Right/Rear/Inside view) DVR system.
2.You can easily switch display mode (quad-image/independent image) on 7/9//10/12/15 inch or other widescreen monitor by wireless IR remote. Or view streaming live video by your phone or PC. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.
Video Recorder 10.1 Inch Monitor 1080P Surveillance 8CH Security CCTV SD 4G MDVR
1.360° Surveillance & Recording: support 8 channel waterproof sync recording cameras (Front/Left/Right/Rear/Inside view) DVR system.
2.You can easily switch display mode (quad-image/independent image) on 7/9//10/12/15 inch or other widescreen monitor by wireless IR remote. Or view streaming live video by your phone or PC. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.
- Product introduction
Video Recorder 10.1 Inch Monitor 1080P Surveillance 8CH Security CCTV MDVR
Product Description

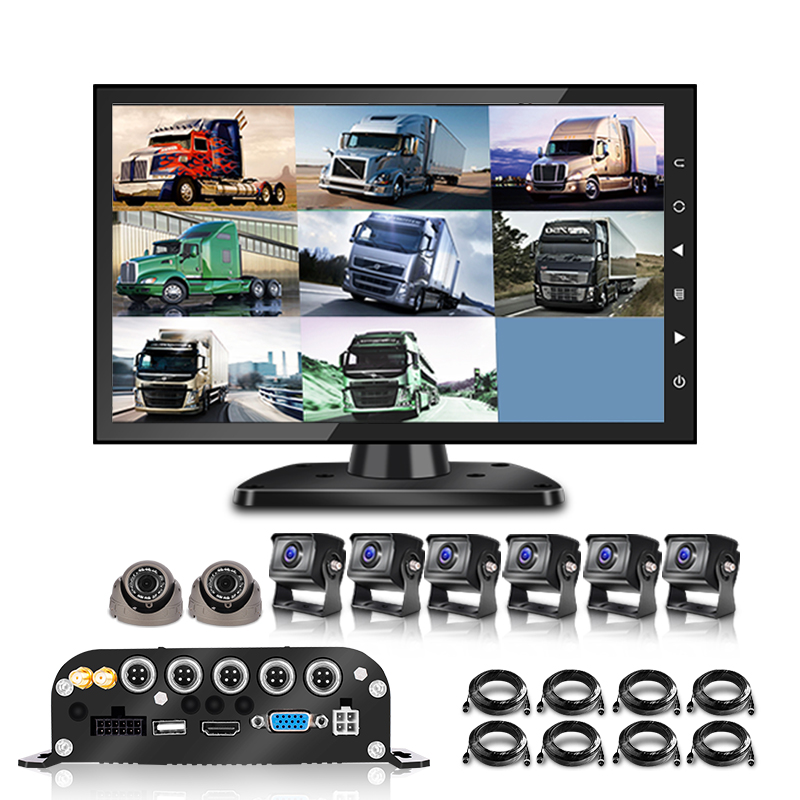

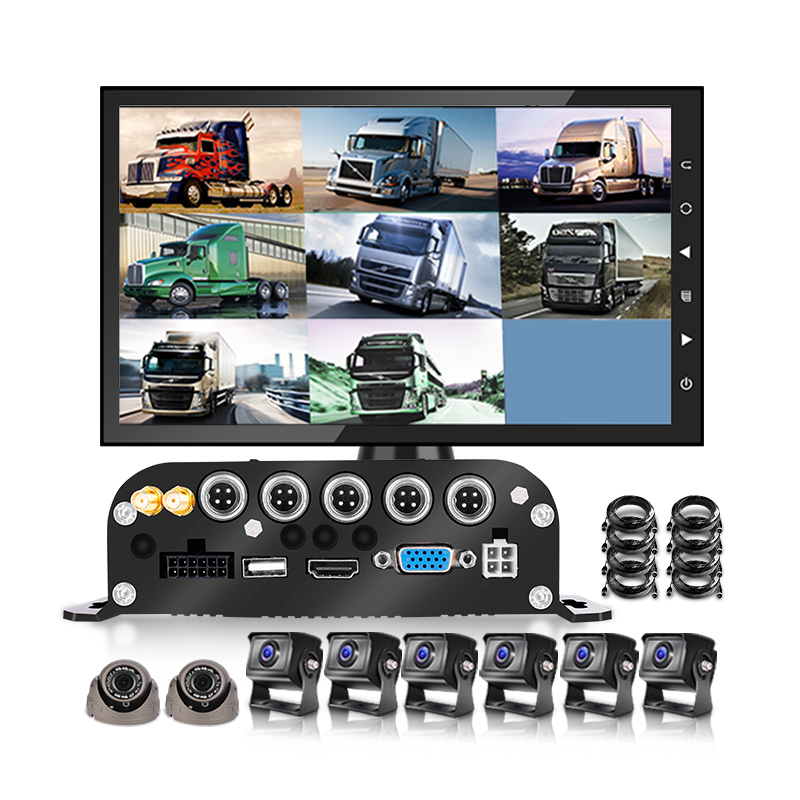

Included:
8CH SD 1080P MDVR With 4G GPS*1

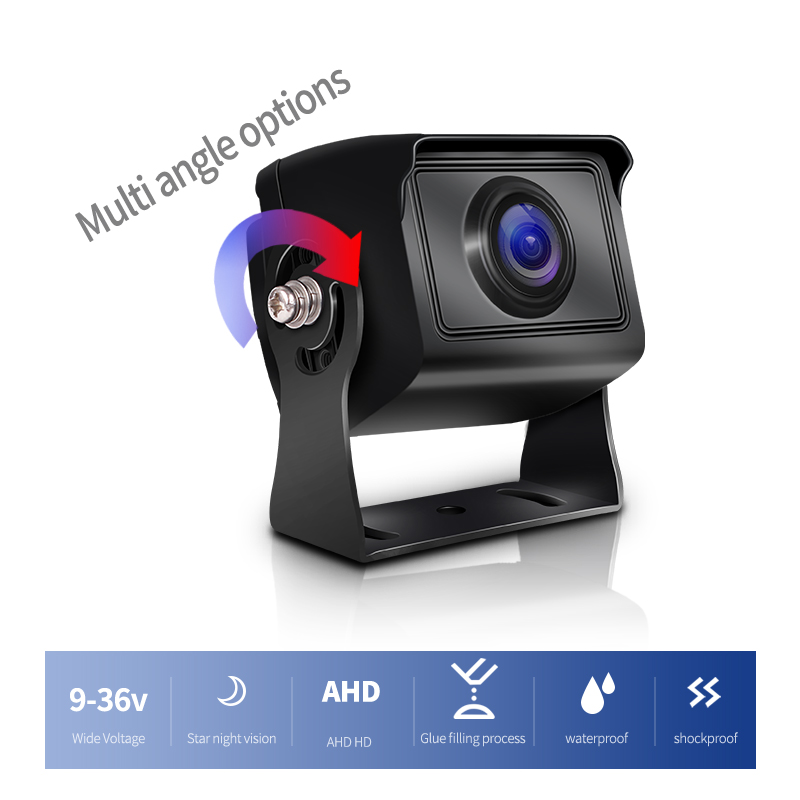

1080P Camera*8
10.1 Inch Monitor*1
5M Cable*2+10M Cable*2+15M Cable*2+20M Cable*2
| 1080P MDVR Specification | ||
| Power | Voltage Input |
DC8-48V |
| Voltage Output | DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A) | |
| Main Processor | Hi3520DV300 | |
| Operating system | Embedded Linux OS | |
| Operating system | Embedded Linux OS | |
| Language | Chinese/English |
|
| System | OSD | Graphical User interface OSD menu |
| Password | Users Password/ Administrator Password | |
| Video | Video input | 4CH (8CH)AHD or Analog Video Inputs |
| Video output | 1CH Video Inputs (1.0Vp-p/ 75 Ohms), 1CH VGA output |
|
| Preview | 1 CH/ 4 CH Preview. | |
| Recording Ratio | PAL: 25 Frame/s; NTSC: 30 Frame/s | |
| Image Compression | H.264 or H.265 Main profile/MJPEG | |
| Video Standard | PAL/NTSC | |
| Image Resolution | 1080P/1080N/720P/960H/D1/CIF | |
| Playback quality | 1080P/1080N/720P/960H/D1/CIF | |
| Audio | Audio input |
4-CH( 8CH) |
| Audio output | 1-CH | |
| Audio Bit Rate | 8KB/S | |
| Recording mode | Audio & Video sync. | |
| Image processing & Storage |
Video Quality | 1080P/720P/960H/D1/CIF each channel; |
| Highest Video Quality: 4CH Full 1080P | ||
| Bit Rate | 1080P: 2048Kbps~6144Kbps | |
| D1: 512Kbps~1536Kbps | ||
| 6 levels optional. | ||
| Storage | 2TB Hard Disk & 128GB SD Card (maximum) | |
| Alarm | Alarm input | 4 alarm inputs |
| Alarm output | 1 alarm output | |
| Firmware Upgrading | Upgrading mode | Manual/Automatically/Remote/Emergency Recovery |
| Upgrading method | USB disk/Wireless network/SD card | |
| Interface | RJ45 Interface | No |
| AV input | 4/8 ch Aviation interface | |
| AV output | 1ch VGA video output, 1ch Aviation AV output | |
| Ignition input | 1 ACC signal | |
| UART | 1 LVTTL Level | |
| USB 2.0 Port | Yes | |
| RS232 Interface | 1-RS232 interface | |
| Wireless | 3G/4G | Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
| Wi-Fi | Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz | |
| External GPS Module | (Optional) ,Support detecting antenna Plug in/Unplug/Short | |
| Operation Environment |
Temperature |
‘-20°~70° |
| Humidity | 10% to 95% | |
| Feature | Support Mouse operating | |
| Support reversing aid setting | ||
| Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan | ||

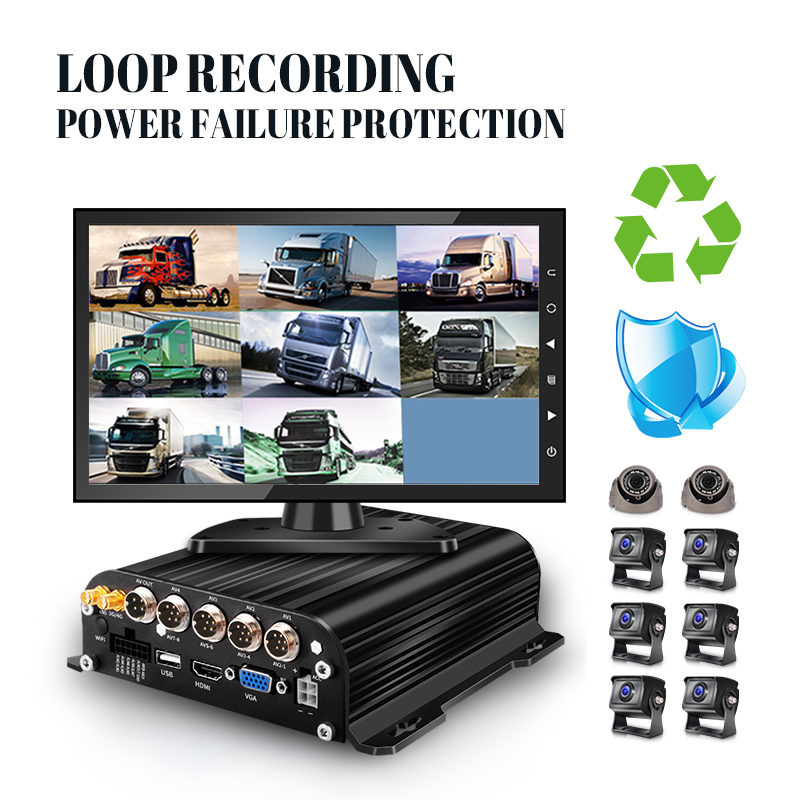

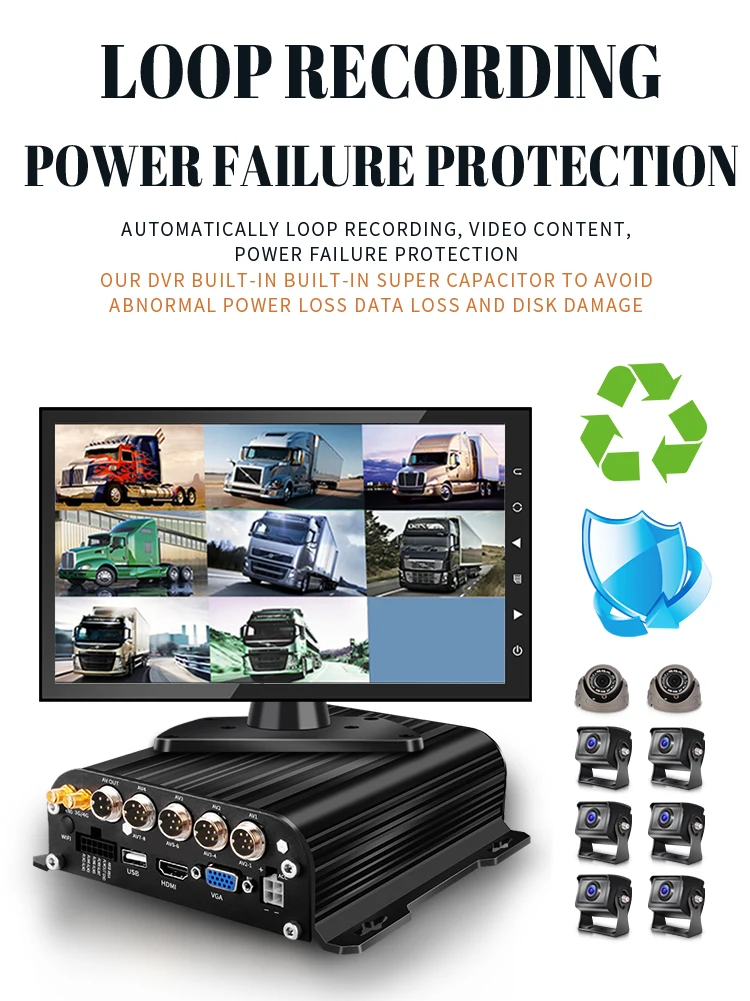

| Built-in super capacitor to avoid abnormal power loss data loss and disk damage | ||
| Support intelligent power management identification, low power automatic shutdown, flameout low power consumption | ||
| Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models; | ||
