For Bus Taxi Van 8PCS Outdoor Car Camera Waterproof 7 Inch Monitor SD Mobile DVR

For Bus Taxi Van 8PCS Outdoor Car Camera Waterproof 7 Inch Monitor SD Mobile DVR

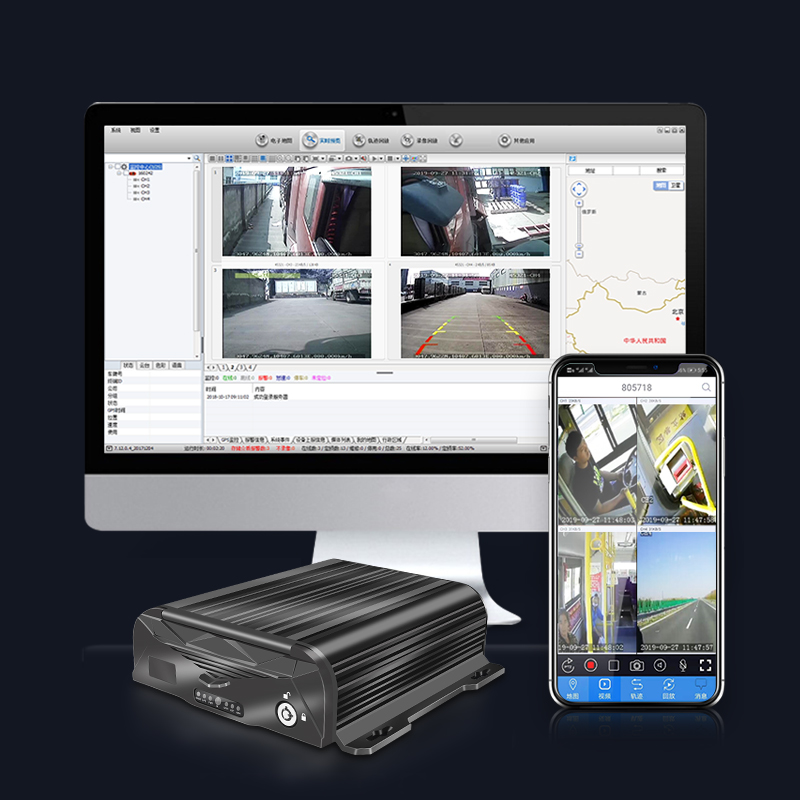

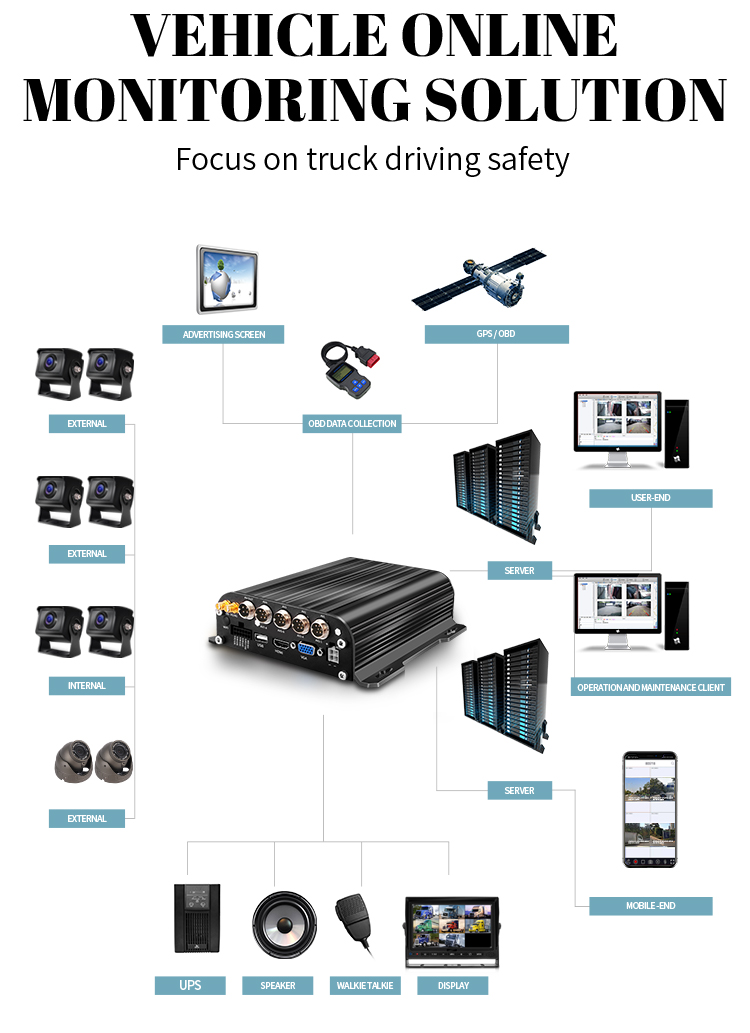

MDVR is a cost-effective device specially developed for video surveillance and remote monitoring of cars and trains. It uses HiSilicon high-speed processor and embedded Linux platform development, combined with the most advanced H.265 video compression/decompression technology in the IT field. Using hard disk or SD card as storage medium, MDVR can realize 4 channels of 1080P, 720P CIF, HD1 and D1 format audio and video recording, and car driving information recording function. MDVR products have the characteristics of simple appearance, super anti-vibration, flexible and convenient installation, powerful functions and high reliability.
  • Product introduction

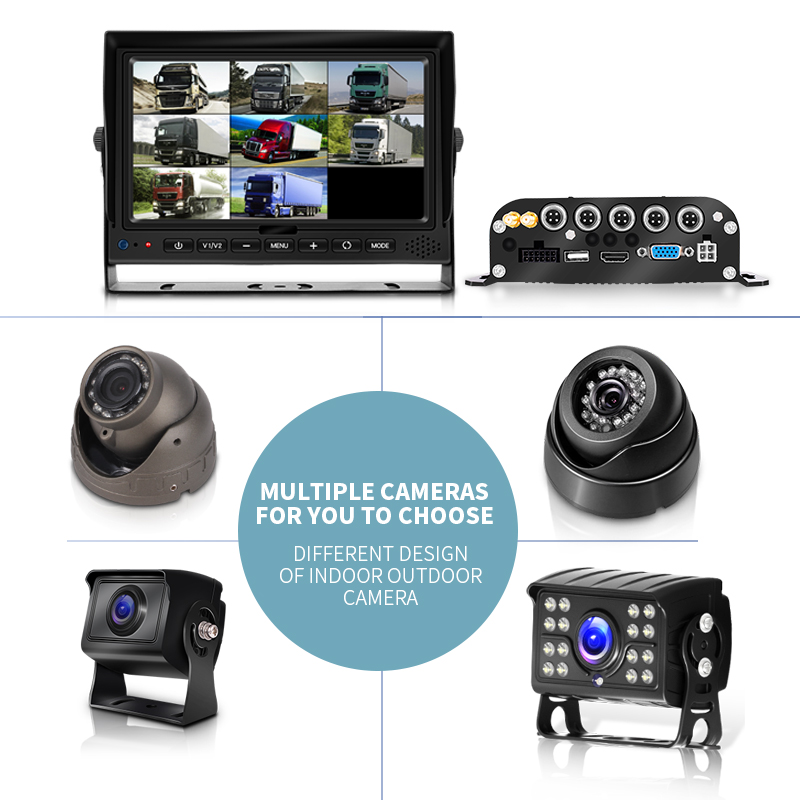

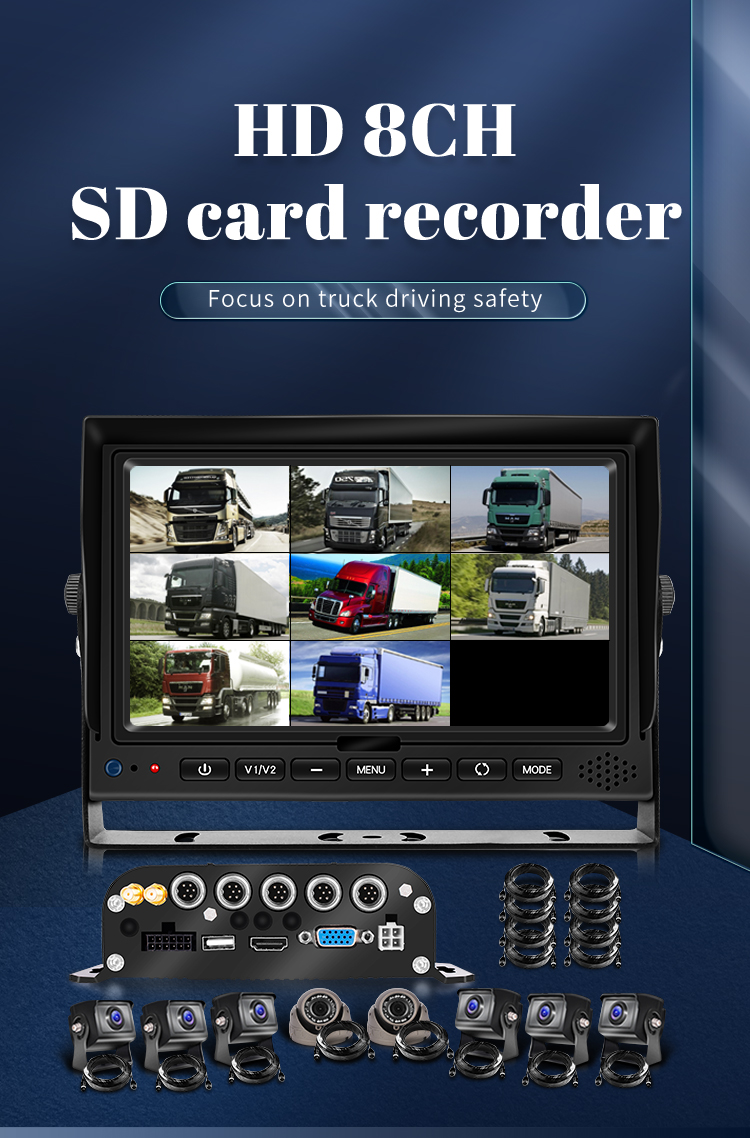

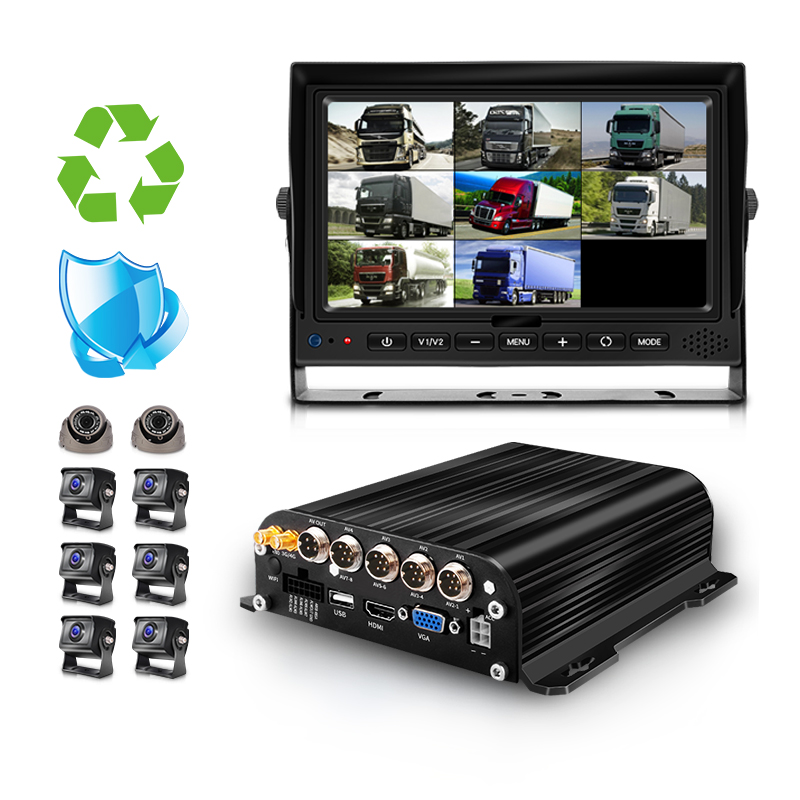

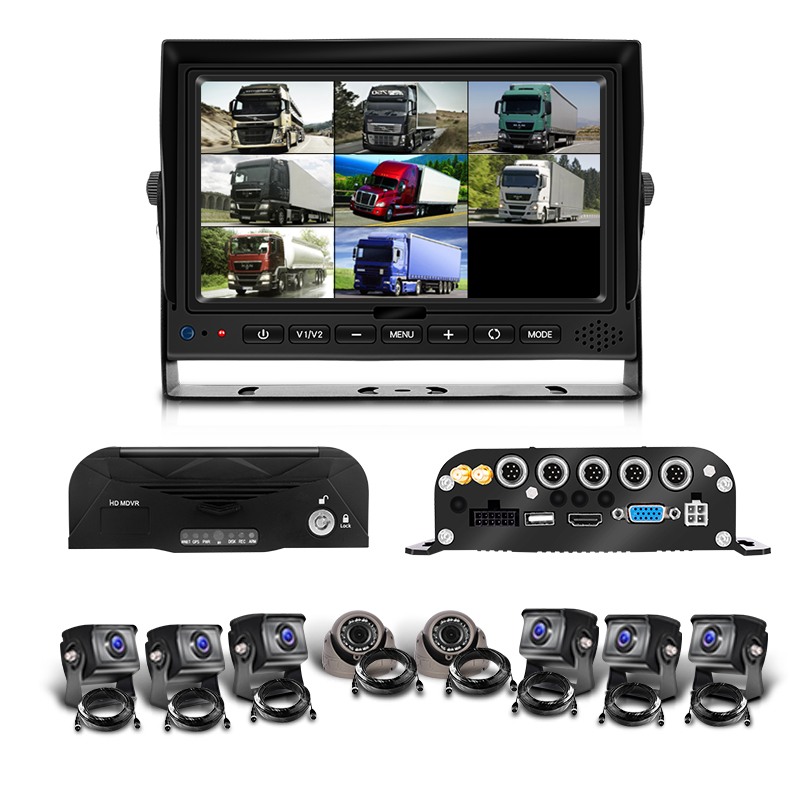

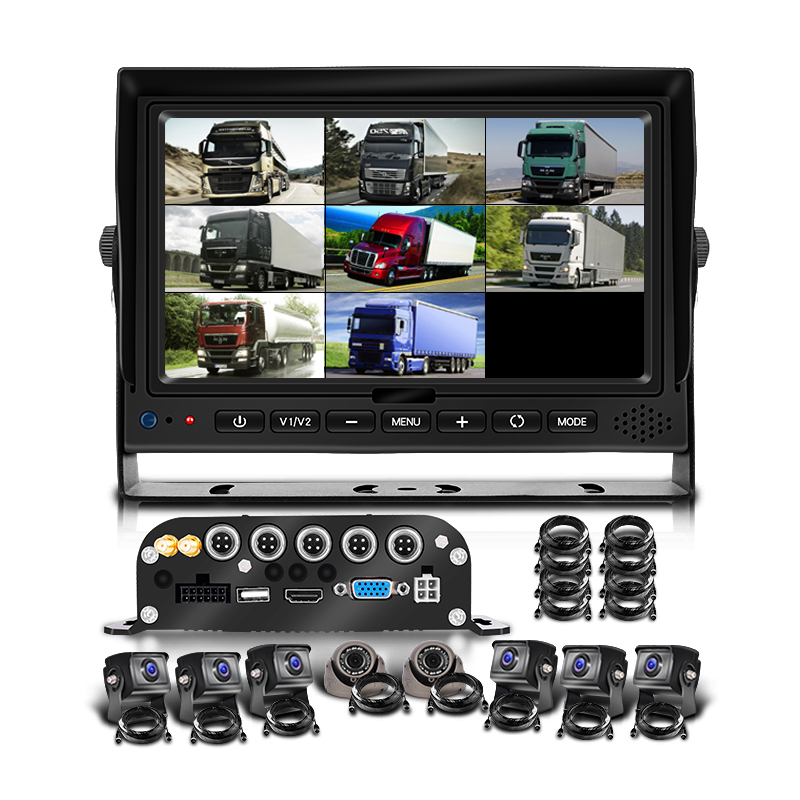

Included:

8CH 1080P SD MDVR With 4G GPS*1

1080P Camera*8

7 Inch Monitor*1

5M Cable*6+15M Cable*2



1080P MDVR Specification

Power

Voltage Input:  DC8-48V

Voltage Output:  DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)





System

Main Processor:  Hi3520DV300

Operating system:  Embedded Linux OS

Language:  Chinese/English

OSD:  Graphical User interface OSD menu

Password:  Users Password/ Administrator Password







Video

Video input:  4CH (8CH)AHD or Analog Video Inputs

Video output:  1CH Video Inputs (1.0Vp-p/ 75 Ohms)1CH VGA output

Preview:  1 CH/ 4 CH Preview.

Recording Ratio:  PAL: 25 Frame/s; NTSC: 30 Frame/s

Image Compression:  H.264 or H.265 Main profile/MJPEG

Video Standard:  PAL/NTSC

Image Resolution:  1080P/1080N/720P/960H/D1/CIF

Playback quality:  1080P/1080N/720P/960H/D1/CIF



Audio

Audio input:  4-CH( 8CH)

Audio output:  1-CH

Audio Bit Rate:  8KB/S

Recording mode:  Audio & Video sync.

Image processing & Storage

Video Quality:  1080P/720P/960H/D1/CIF each channel; Highest Video Quality: 4CH Full 1080P

Bit Rate:  1080P: 2048Kbps~6144Kbps; D1: 512Kbps~1536Kbps; 6 levels optional.

Storage:  2TB Hard Disk & 128GB SD Card (maximum)

Alarm

Alarm input:  4 alarm inputs

Alarm output:  1 alarm output

Firmware Upgrading

Upgrading mode:  Manual/Automatically/Remote/Emergency Recovery

Upgrading method:  USB disk/Wireless network/SD card

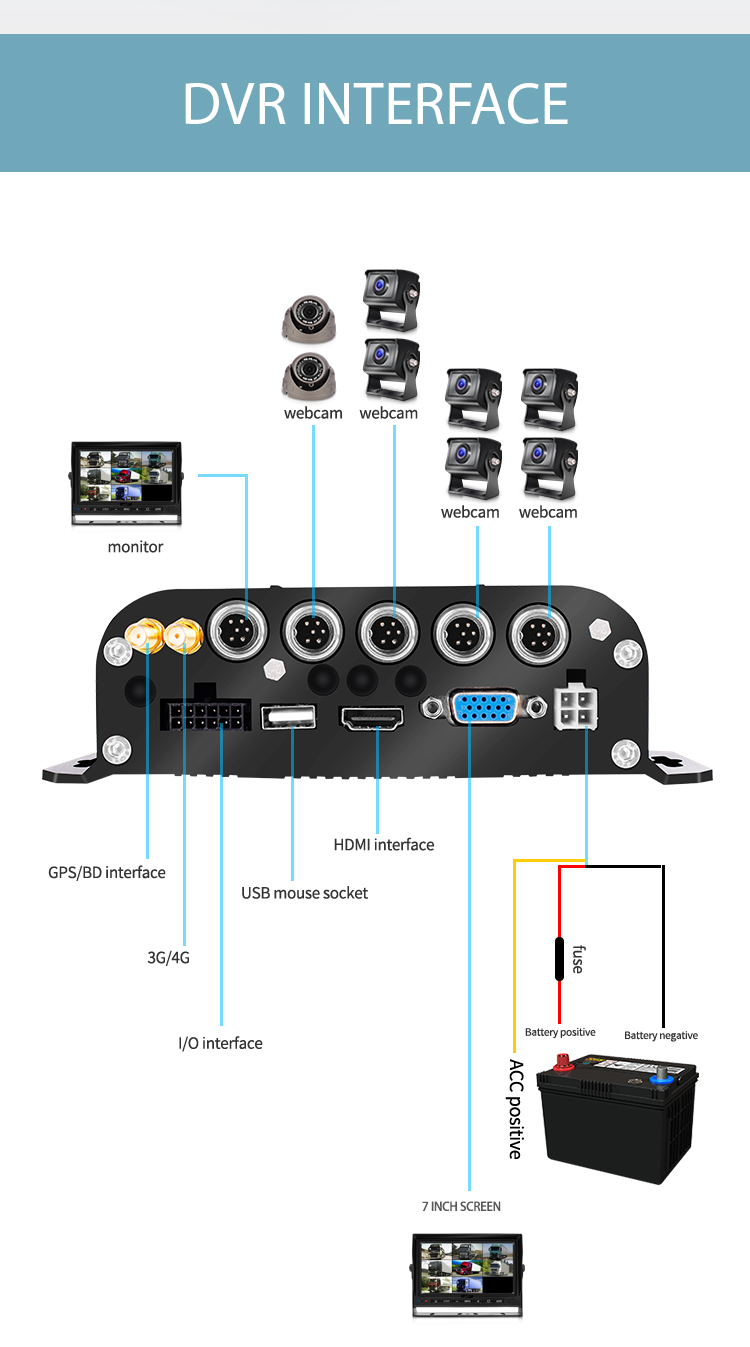

Interface

RJ45 Interface:  No

AV input:  4/8 ch Aviation interface

AV output:  1ch VGA video output, 1ch Aviation AV output

Ignition input:  1 ACC signal

UART:  1 LVTTL Level

USB 2.0 Port:  Yes

RS232 Interface: 1-RS232 interface

Wireless

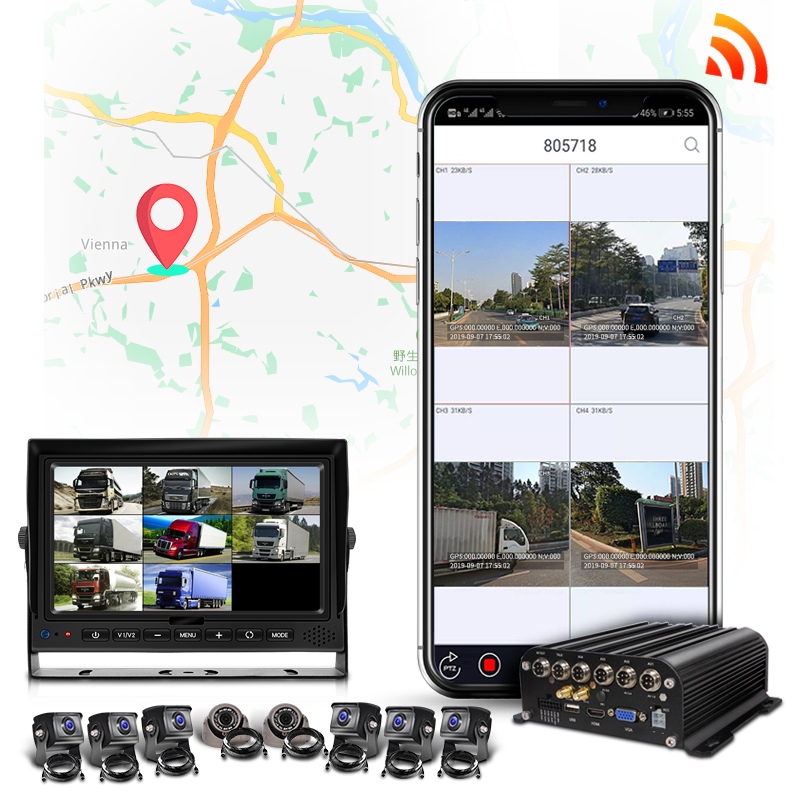

3G/4G:  Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD; LTE/TDD LTE

Wi-Fi:  Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz

External GPS Module:   (Optional) ,Support detecting antenna Plug in/Unplug/Short

Operation Environment

Temperature:  -20°~70°

Humidity:  10% to 95%
