H.264 HDD Mobile DVR With GPS 4G MDVR CCTV Camera 8CH MDVR Kit 7 Inch Monitor

H.264 HDD Mobile DVR With GPS 4G MDVR CCTV Camera 8CH MDVR Kit 7 Inch Monitor

1.360° Surveillance & Recording: support 8 channel waterproof sync recording cameras (Front/Left/Right/Rear/Inside view) DVR system.


2.You can easily switch display mode (quad-image/independent image) on 7/9//10/12/15 inch or other widescreen monitor by wireless IR remote. Or view streaming live video by your phone or PC. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.


Price is not included hard drive, you need to buy extra, we have 1TB or 2TB, if you want, conta

  • Product introduction
H.264 HDD Mobile DVR With GPS 4G MDVR CCTV Video Recorder 8CH MDVR Kit 7 Inch Car Monitor
Product Descript

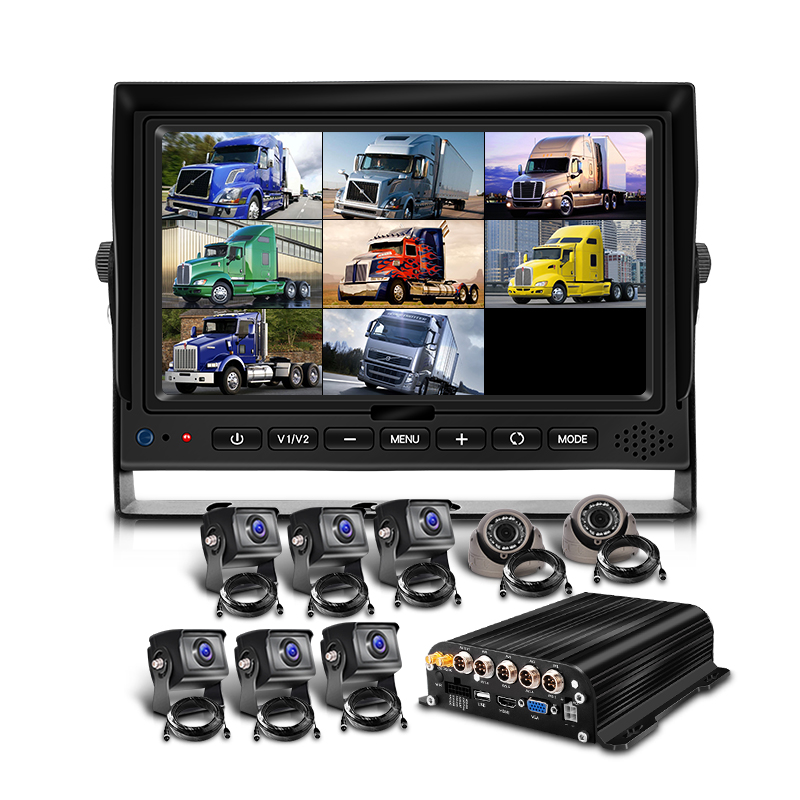

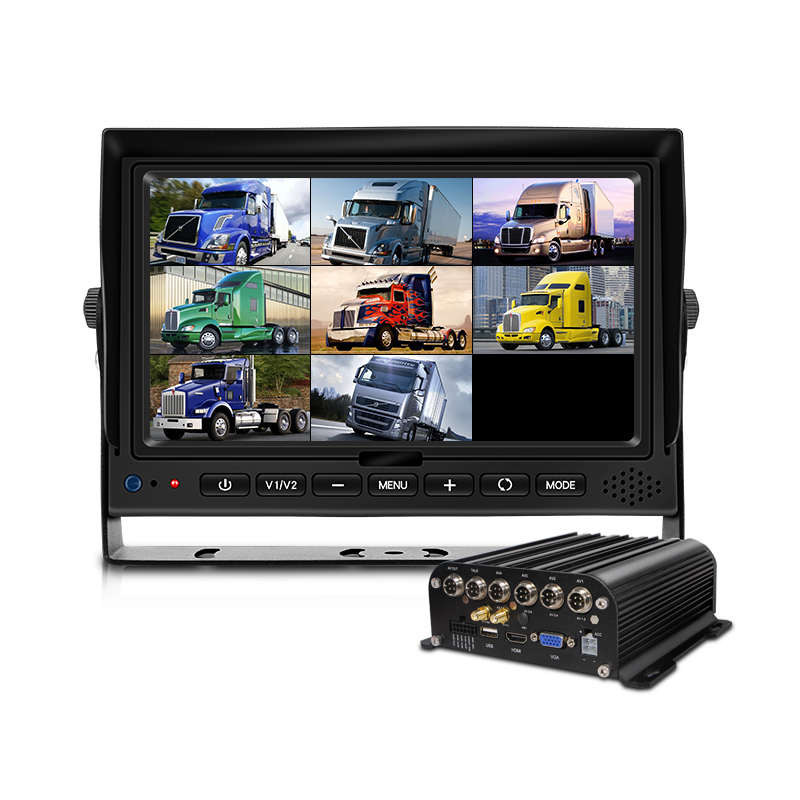

8CH HDD 1080P MDVR With 4G GPS

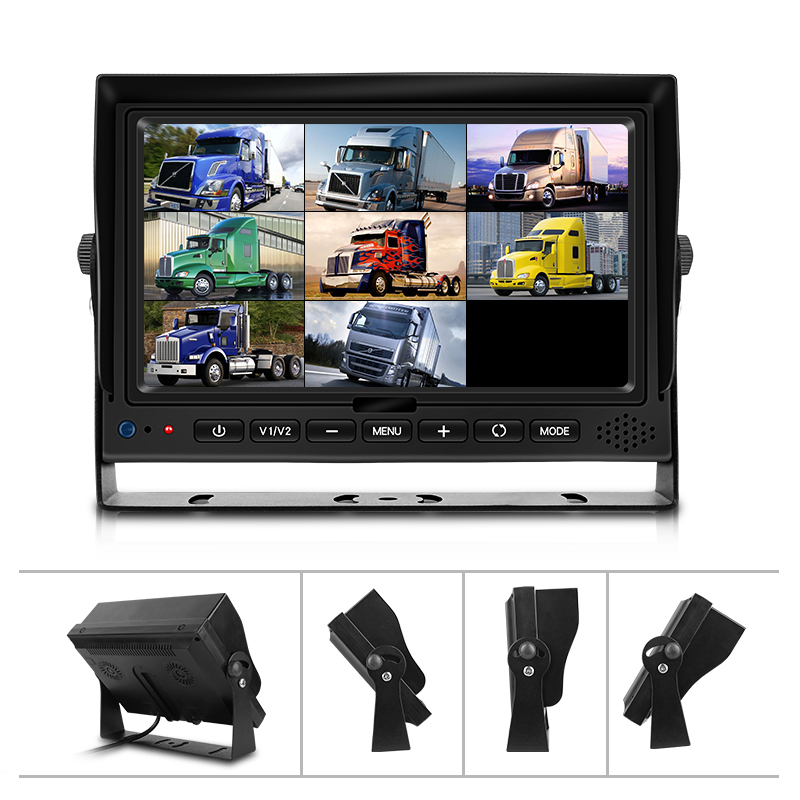

7 Inch Monitor*1

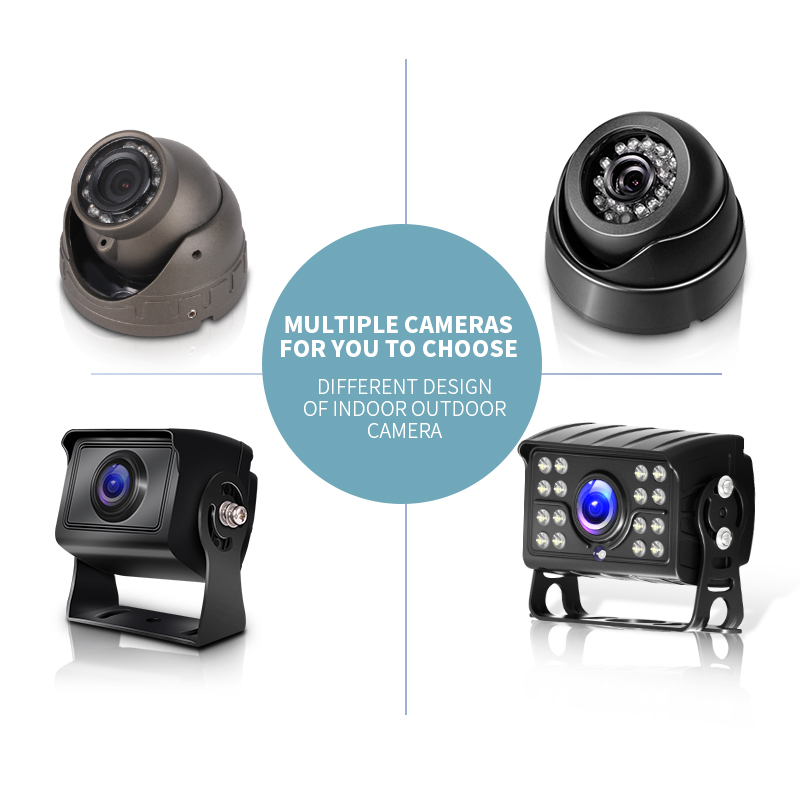

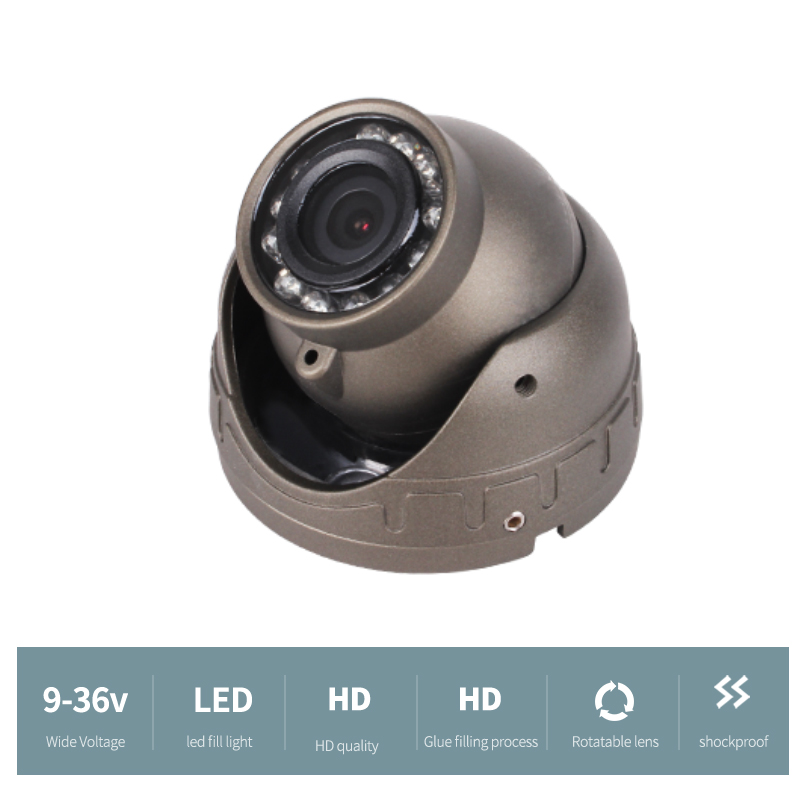

1080P Camera*8

6PCS 5M cable+2PCS 15M Cable



1080P MDVR Specification
Voltage Input
  Voltage Output DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)
  Main Processor  Hi3520DV300
  Operating system  Embedded Linux OS
  Operating system  Embedded Linux OS
  Language  Chinese/English
System OSD Graphical User interface OSD menu
  Password  Users Password/ Administrator Password
Video Video input 4CH (8CH)AHD or Analog Video Inputs
Video output 1CH Video Inputs (1.0Vp-p/ 75 Ohms),
1CH VGA output
Preview 1 CH/ 4 CH Preview.
Recording Ratio PAL: 25 Frame/s; NTSC: 30 Frame/s
Image Compression H.264 or H.265 Main profile/MJPEG
Video Standard  PAL/NTSC
Image Resolution 1080P/1080N/720P/960H/D1/CIF
Playback quality  1080P/1080N/720P/960H/D1/CIF
Audio input
4-CH( 8CH)
Audio output 1-CH
Audio Bit Rate 8KB/S
Recording mode Audio & Video sync.
Image processing

& Storage
Video Quality 1080P/720P/960H/D1/CIF each channel;
  Highest Video Quality: 4CH Full 1080P
Bit Rate 1080P: 2048Kbps~6144Kbps
  D1: 512Kbps~1536Kbps
  6 levels optional.
Storage 2TB Hard Disk & 128GB SD Card (maximum)
Alarm Alarm input 4 alarm inputs
Alarm output 1 alarm output
Firmware Upgrading Upgrading mode  Manual/Automatically/Remote/Emergency Recovery
Upgrading method USB disk/Wireless network/SD card
Interface  RJ45 Interface No
AV input 4/8 ch Aviation interface
AV output  1ch VGA video output, 1ch Aviation AV output
Ignition input 1 ACC signal
USB 2.0 Port Yes
RS232 Interface 1-RS232 interface
Wireless 3G/4G Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD
Wi-Fi Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz
External GPS Module  (Optional) ,Support detecting antenna Plug in/Unplug/Short
Operation Environment
Humidity 10% to 95%
Feature  Support Mouse operating
Support reversing aid setting
Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan
Built-in super capacitor to avoid abnormal power loss data loss and disk damage
Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models;
