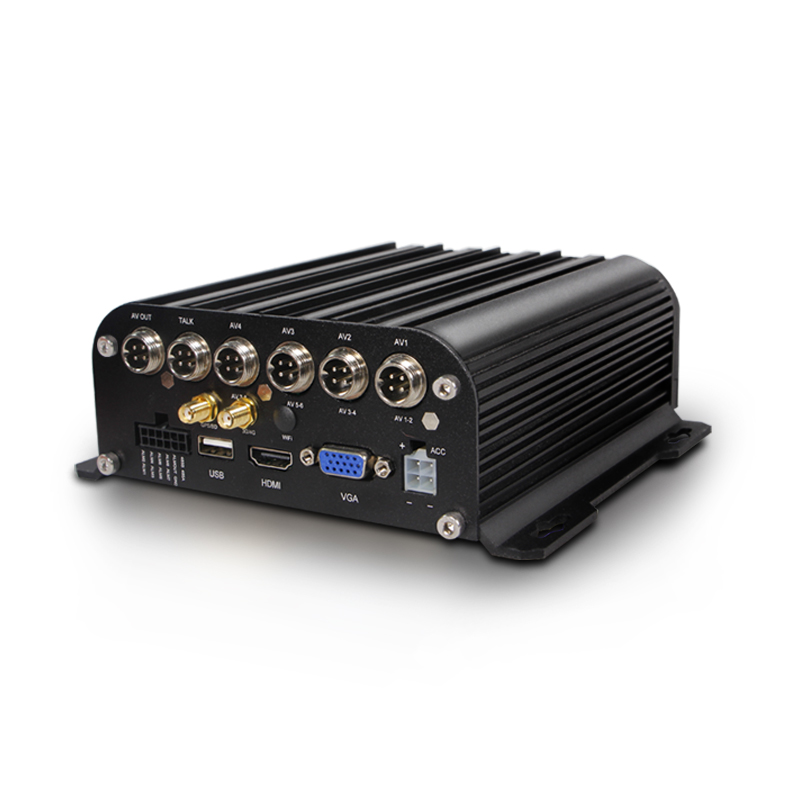

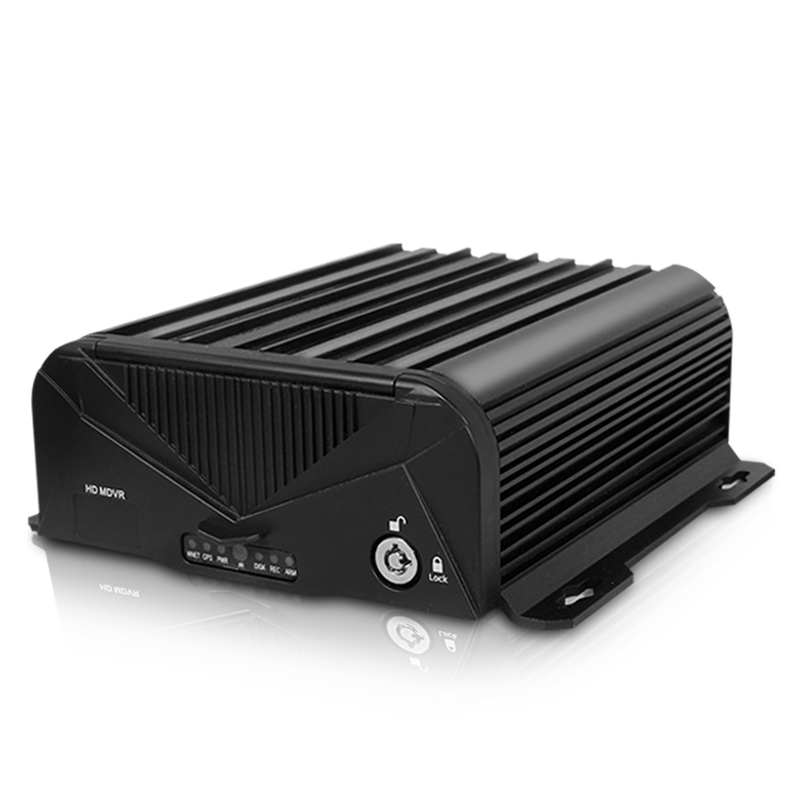

Mobile DVR Truck 4 Channel 1080P Bus MDVR Recorder 2TB Loop Video 4G GPS MDVR

Mobile DVR Truck 4 Channel 1080P Bus MDVR Recorder 2TB Loop Video 4G GPS MDVR

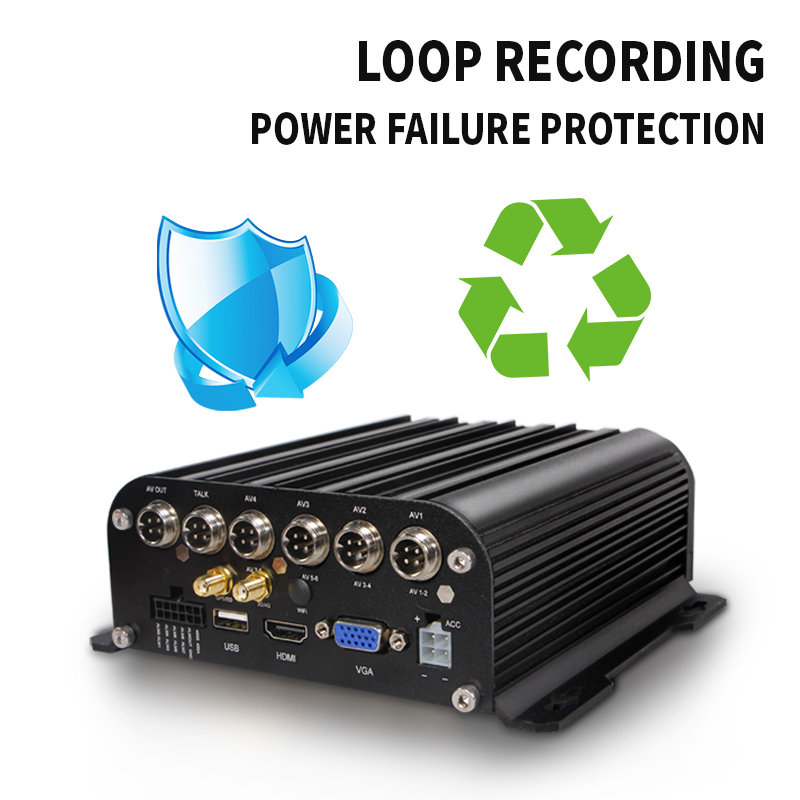

1. Support up to 2TB HDD+128GB Micro SD card (not include): 1 camera 1 hour 1G capacity. And it will keep continuously recording of 1/3/5 minutes clips by overwriting the oldest files once the card is full.



2. 360° Surveillance & Recording: support 4 channel waterproof sync recording cameras (Front/Left/Right/Rear) DVR system. You can easily switch display mode (quad-image/independent image) on 7/9//10/12/15 inch or other widescreen monitor by wireless IR remote. Or view streaming live video by your phone or PC. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.

  • Product introduction



1080P MDVR Specification
Power
Voltage Input
DC8-48V
  Voltage Output DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)
  Main Processor  Hi3520DV300
  Operating system  Embedded Linux OS
  Operating system  Embedded Linux OS
  Language  Chinese/English

System OSD Graphical User interface OSD menu
  Password  Users Password/ Administrator Password
Video Video input 4CH (8CH)AHD or Analog Video Inputs
Video output 1CH Video Inputs (1.0Vp-p/ 75 Ohms),
1CH VGA output
Preview 1 CH/ 4 CH Preview.
Recording Ratio PAL: 25 Frame/s; NTSC: 30 Frame/s
Image Compression H.264 or H.265 Main profile/MJPEG
Video Standard  PAL/NTSC
Image Resolution 1080P/1080N/720P/960H/D1/CIF
Playback quality  1080P/1080N/720P/960H/D1/CIF
Audio
Audio input
4-CH( 8CH)
Audio output 1-CH
Audio Bit Rate 8KB/S
Recording mode Audio & Video sync.
Image processing

& Storage
Video Quality 1080P/720P/960H/D1/CIF each channel;
  Highest Video Quality: 4CH Full 1080P
Bit Rate 1080P: 2048Kbps~6144Kbps
  D1: 512Kbps~1536Kbps
  6 levels optional.
Storage 2TB Hard Disk & 128GB SD Card (maximum)
Alarm Alarm input 4 alarm inputs
Alarm output 1 alarm output
Firmware Upgrading Upgrading mode  Manual/Automatically/Remote/Emergency Recovery
Upgrading method USB disk/Wireless network/SD card

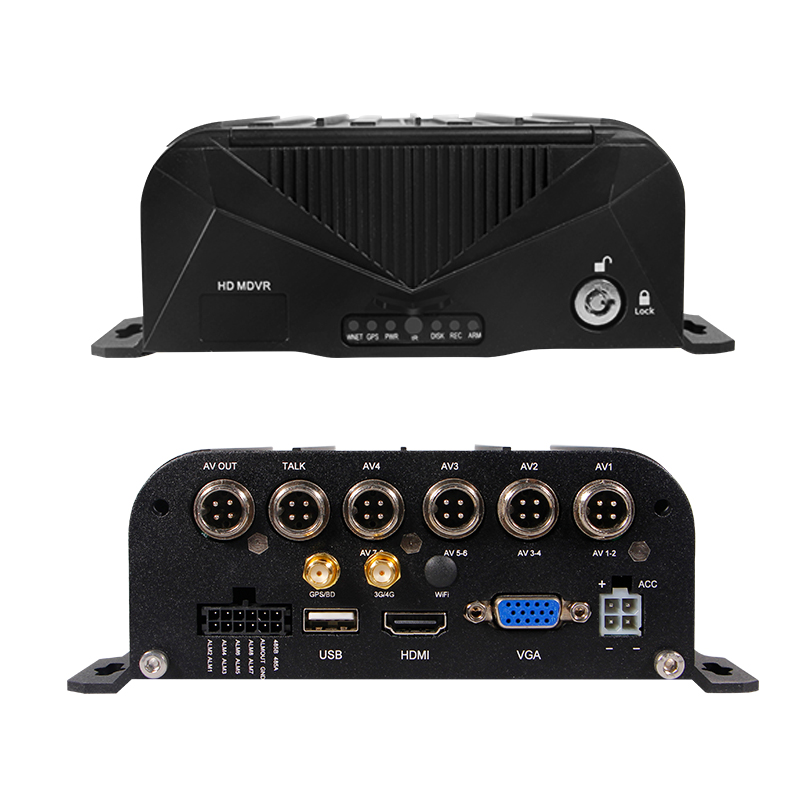

Interface  RJ45 Interface No
AV input 4/8 ch Aviation interface
AV output  1ch VGA video output, 1ch Aviation AV output
Ignition input 1 ACC signal
UART 1 LVTTL Level
USB 2.0 Port Yes
RS232 Interface 1-RS232 interface
Wireless 3G/4G Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD
LTE/TDD LTE
Wi-Fi Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz
External GPS Module  (Optional) ,Support detecting antenna Plug in/Unplug/Short
Operation Environment


Temperature
‘-20°~70°
Humidity 10% to 95%
Feature  Support Mouse operating
Support reversing aid setting
Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan
Built-in super capacitor to avoid abnormal power loss data loss and disk damage
Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models;













hdd 4CH mdvr 4G GPS  (1).jpghdd 4CH mdvr 4G GPS  (2).jpghdd 4CH mdvr 4G GPS  (3).jpghdd 4CH mdvr 4G GPS  (4).jpghdd 4CH mdvr 4G GPS  (5).jpghdd 4CH mdvr 4G GPS  (6).jpghdd 4CH mdvr 4G GPS  (7).jpghdd 4CH mdvr 4G GPS  (8).jpghdd 4CH mdvr 4G GPS  (9).jpghdd 4CH mdvr 4G GPS  (10).jpghdd 4CH mdvr 4G GPS  (11).jpgmdvr (9).jpgMDVR.jpgMDVR BOX.jpg
