Blind Spot Monitoring System 4.3 Inch LCD Car Monitor Backup Camera
-4.3 inch lcd monitor connect with sensor car camera, combins to car reversing aid system.
-Monitor and camera are with AV or Aviation plug available.
-Good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Easy installation and operation, free-drilling.
-Waterproof IP67 car camera, can work well even in rain.
-Suit for universal cars.
Blind Spot Monitoring System 4.3 Inch LCD Car Monitor Backup Camera
-4.3 inch lcd monitor connect with sensor car camera, combins to car reversing aid system.
-Monitor and camera are with AV or Aviation plug available.
-Good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Easy installation and operation, free-drilling.
-Waterproof IP67 car camera, can work well even in rain.
-Suit for universal cars.
- Product introduction
Blind Spot Monitoring System 4.3 Inch LCD Car Monitor Backup Camera
| Monitor | |
| Screen Size | 125*79*21mm |
| Voltage | 9-35V |
| Contrast | 400:1 |
| Brightness | 400cd/m2 |
| Resolution | 480*272TVL |
| Color | Black, Optional |
| Standard | PAL/NTSC |
| Power supply | DC port |
| Ratio | 16:9/4:3 |
| Power | About 7W |
| Control | OSD 8 languages |
| Operation temperature | -20°C~50°C, |
| Storage temperature | -30°C~70°C |
| Camera | |
| Chip | HD CCD |
| Size | 30*50mm |
| TV system | NTSC60HZ |
| Shutter speed | 1/60-20us |
| Sensing area | 5.961 x 4.276mm |
| Effective pixel | 720*540 Pixels |
| Horizontal resolution | 600TVL |
| Minimum illumination | 0.2Lux/ F1.8=1.2 (0 Lux with Led) |
| View Angle | 120 Degree |
| White balance | Auto |
| Waterproof | IP67 |
| Power supply | DC 9-12V |
| Power | Approx 7W |
| Video output | 1.0Vp-p, 75ohm |
| Horizontal synchronization frequency | 15625KHZ |
| SNR | >48dB |
| Operation temperature | -20°C~ 70°C, RH95% Max |
| Storage temperature | -30°C ~ 85°C, RH95% Max |
| Current Consumption | No More than 150mA |
| Function | Monitoring blind area |
| Application | Car, mini-van,etc |
| Remark | The Sensor light will be on in the Dark Condition |
| The Sensor Light will be off in the Bright Condition | |
| LED/Infrared Night Vision optional |
Feature:
1. 4.3 inch lcd monitor connect with sensor car camera, combins to car reversing aid system.
2. 4.3 inch lcd monitor, with high resolution 1024*600Pixels and 400cd/m2 Brightness, show high definition image.
3. Adjustable car mount: the screen can be adjustable by rotating the bracket to see different angles. For easy and autonomous installation
4. Monitor support PAL and NTSC, camera support PAL or NTSC
5. Monitor and camera are with AV or Aviation plug available.
6. Good infrared night vision, can help driver see the situation around the car, even in the day or night.
7. Easy installation and operation, free-drilling.
8. Waterproof IP67 car camera, can work well even in rain.
9. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
10. Suit for universal cars.

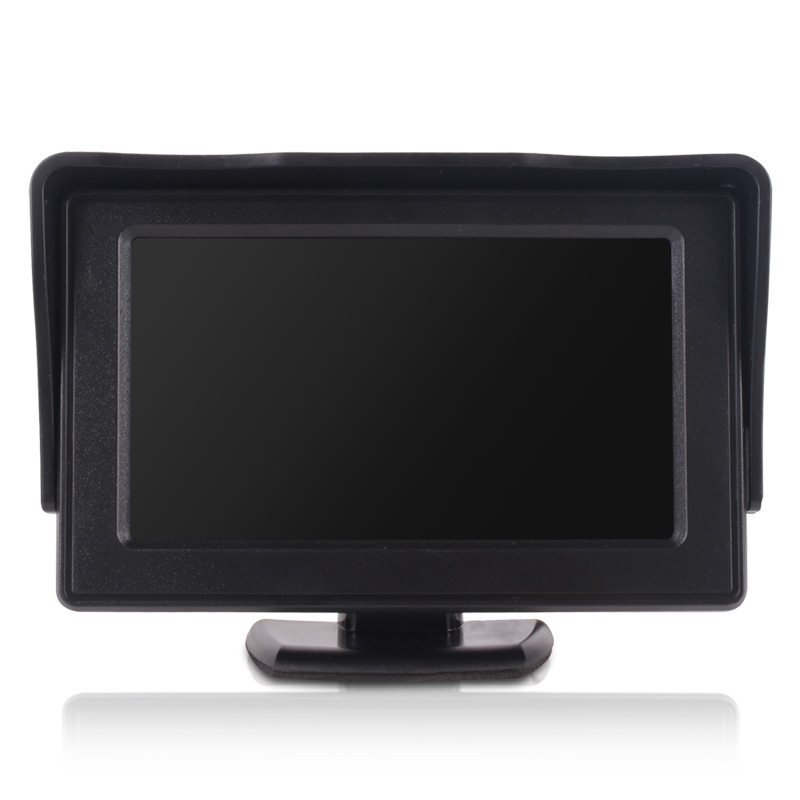

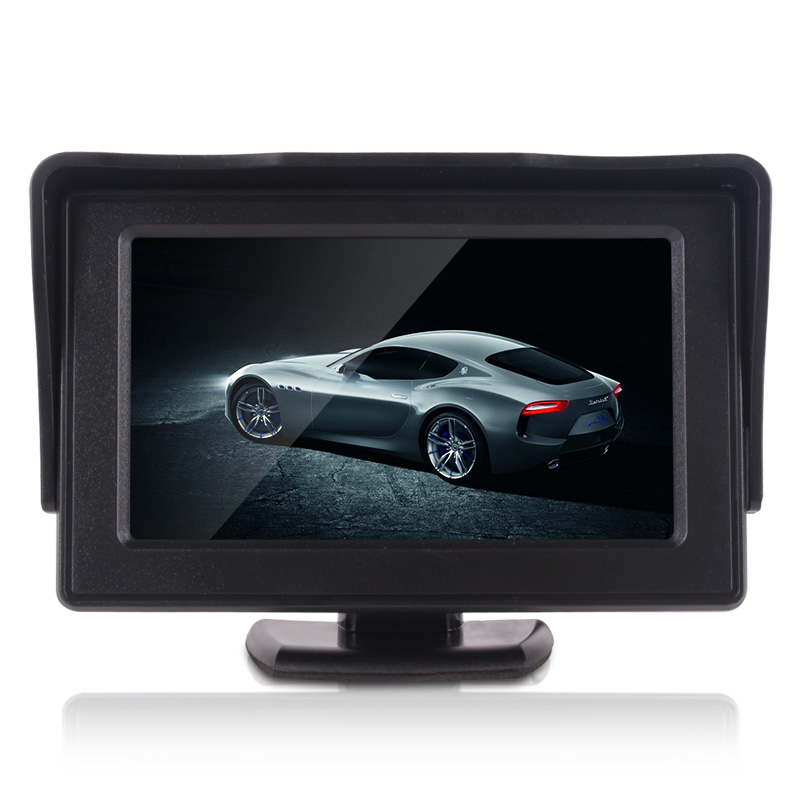

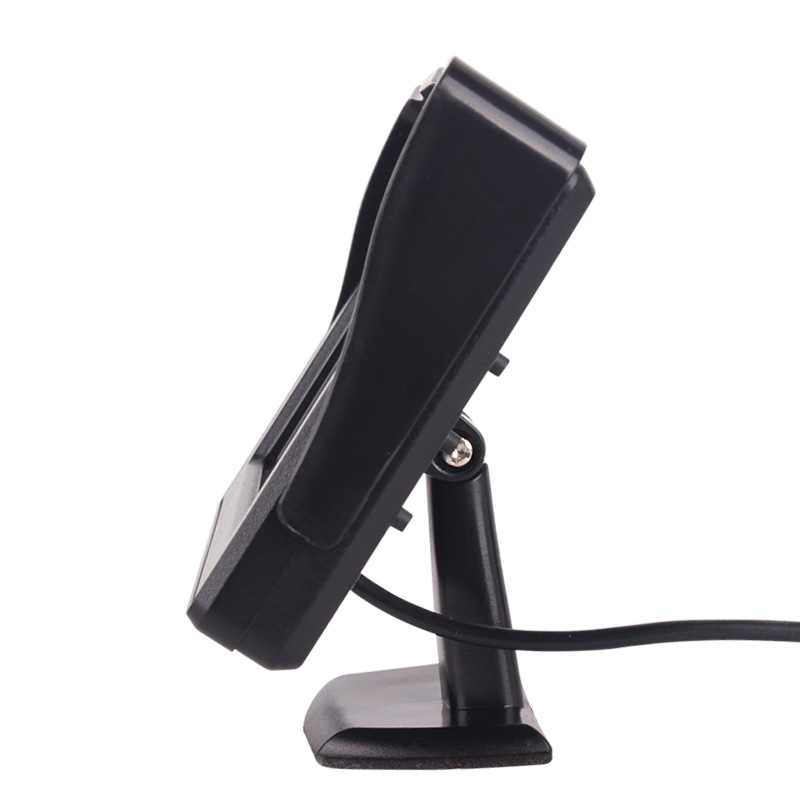

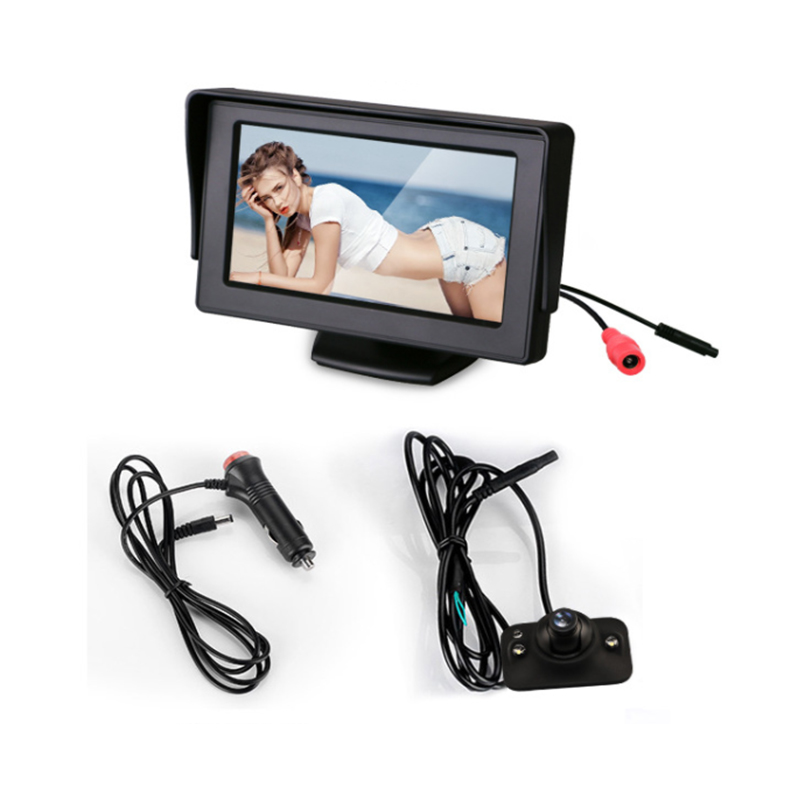

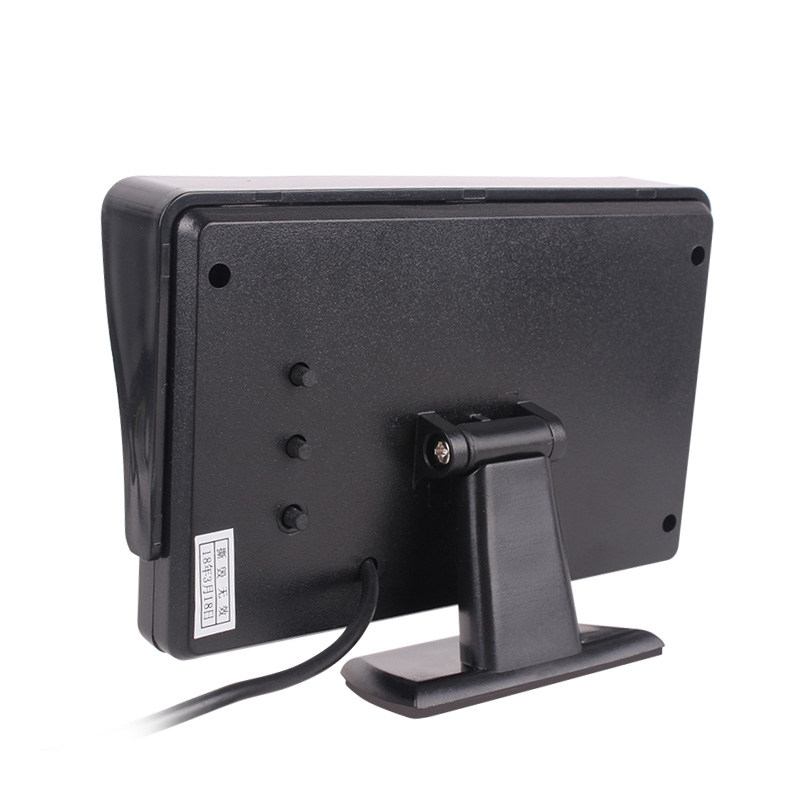

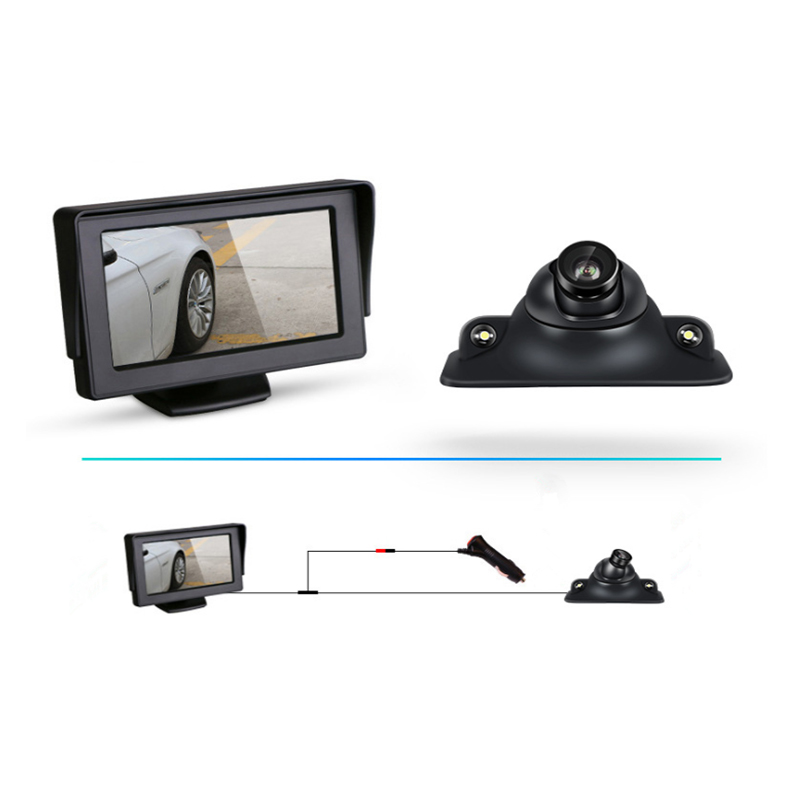

Product picture:
