Bus Truck 7 Inch 12V-24V Car Monitor Wireless Rear View Camera System
-Upgraded Easy Setup Wireless Backup Camera and Monitor Kits for Car RV Truck Bus Caravan Bus Motorhome, Built-in Wireless Reverse Camera and 7" TFT LCD Rear View Monitor, support 12V-24V power system.
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-7 inch Rearview Monitor, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color.
-Easy to install -- It comes with a car charger for getting power directly from the car cigarette to monitor.
Bus Truck 7 Inch 12V-24V Car Monitor Wireless Rear View Camera System
-Upgraded Easy Setup Wireless Backup Camera and Monitor Kits for Car RV Truck Bus Caravan Bus Motorhome, Built-in Wireless Reverse Camera and 7" TFT LCD Rear View Monitor, support 12V-24V power system.
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-7 inch Rearview Monitor, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color.
-Easy to install -- It comes with a car charger for getting power directly from the car cigarette to monitor.
- Product introduction
Bus Truck 7 Inch 12V-24V Car Monitor Wireless Rear View Camera System
| Monitor | |
| Screen Size | 174x114x19 mm |
| Voltage | 9-35V |
| Contrast | 400:1 |
| Brightness | 400cd/m2 |
| Resolution | 800x480Pixels/1024x600Pixels |
| Color | Black, Optional |
| Standard | PAL/NTSC |
| Operate mode | key operation and remote control |
| Transmission | 50m open air |
| Power supply | DC port |
| Ratio | 16:9 |
| Video | Two ways video input |
| Rear-view | V2 auto reverse when trigger activated |
| Power Consumption | 5W |
| Operation temperature | --20℃±75℃ |
| Storage temperature | -30℃±80℃ |
| Camera | |
| Chip | HD CCD |
| Transmission | 50m open air |
| TV system | PAL/NTSC |
| Electronic shutter | 1/60~1/10,000 Seconds |
| Waterproof rate | IP67 |
| Sensing area | 5.961 x 4.276mm |
| Effective pixel | 752x582Pixels/768*494Pixels |
| Gamma consumption | 0.45 |
| Minimum illumination | 0.2Lux/ F1.8=1.2 (0 Lux with Led) |
| Resolution | 480 TVL |
| Lens angle | 120° |
| Pin lens | f=2.8mm/ F=2.0 |
| IR leds | 18PCS |
| Vertical sync. frequency | 50Hz/60Hz |
| Power supply | DC 9-35 V |
| Power | Approx 7W |
| Video output | 1.0Vp-p, 75ohm |
| Horizontal synchronization frequency | 15625KHZ |
| SNR | >48dB |
| Operation temperature | -20°C~ 70°C, RH95% Max |
| Storage temperature | -30°C ~ 85°C, RH95% Max |
| Current Consumption | ≤300mA |
| Scanning system | 2:1 Interlace |
| Application | Universal Cars, Mini-Van,etc |
| Remark | Wireless camera bulit in 2.4Ghz video transmitter |
Feature:
1. Upgraded Easy Setup Wireless Backup Camera and Monitor Kits for Car RV Truck Bus Caravan Bus Motorhome, Built-in Wireless Reverse Camera and 7" TFT LCD Rear View Monitor, support 12V-24V power system.
2. Waterproof Backup Camera -- 18 IR LEDs for Night Vision, good performace in day and night. Automatically switches to IR when light level is low. 120 degree field of view. You can get it work all the time when connect to 12-24V power source.
3. 7 inch Rearview Monitor -- Sun shade, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color.
4. Easy to install -- It comes with a car charger for getting power directly from the car cigarate to monitor. No need to wired it from the ACC, eliminating the hassles of assembly many cable.

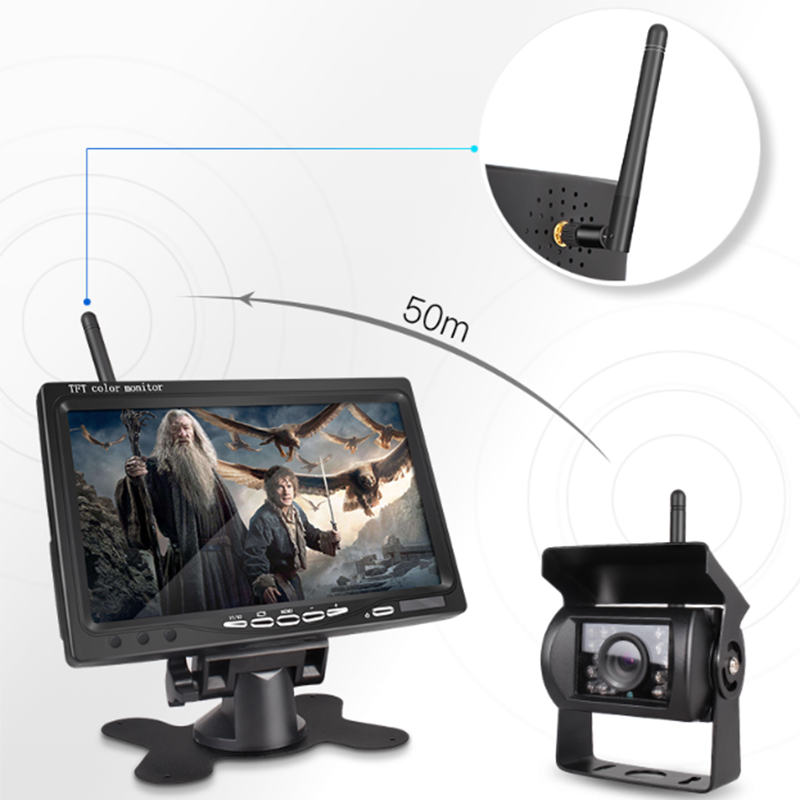

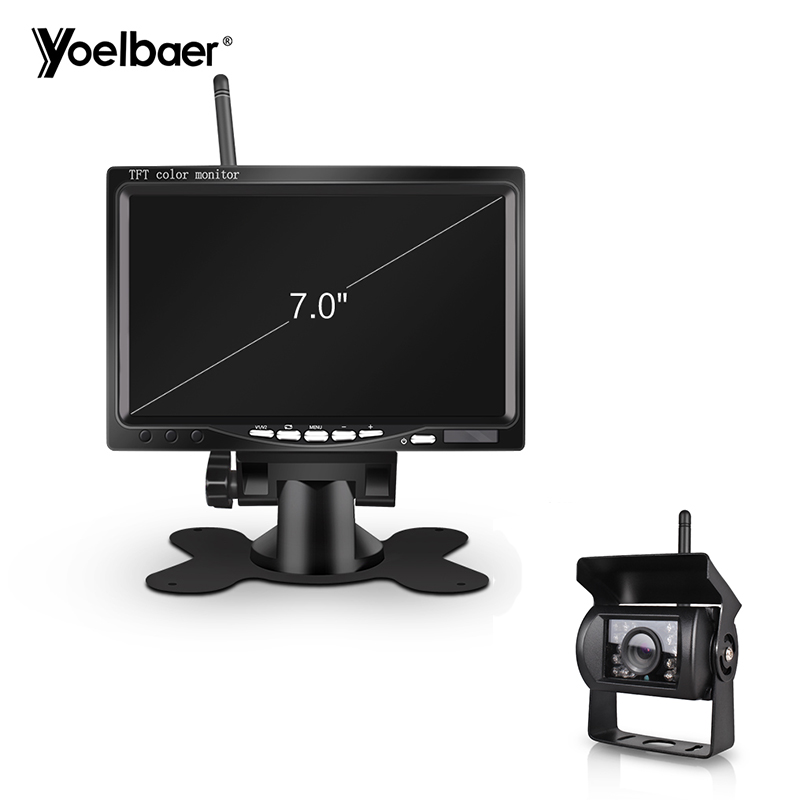

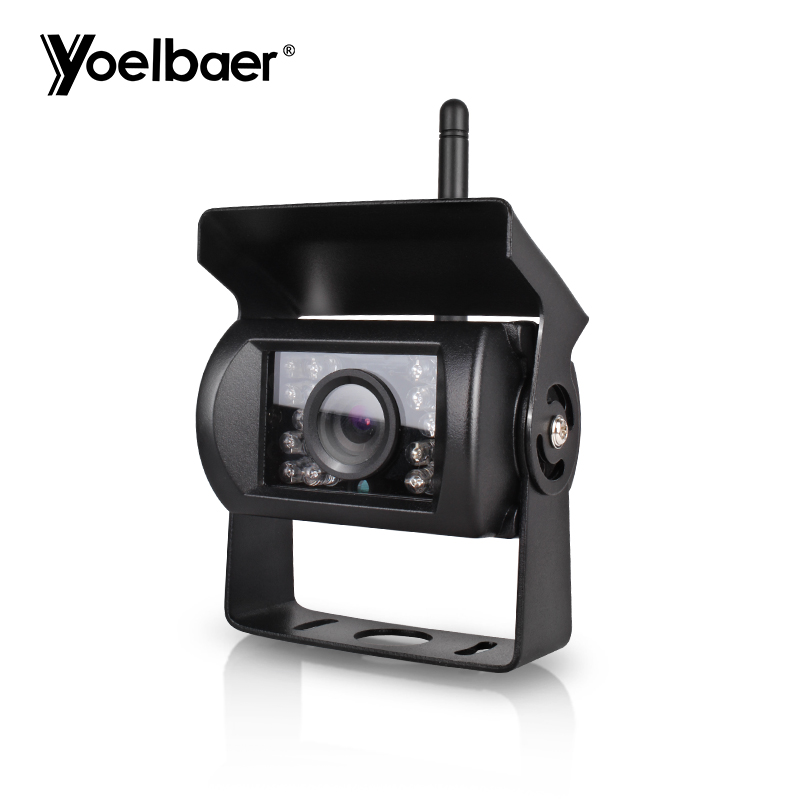

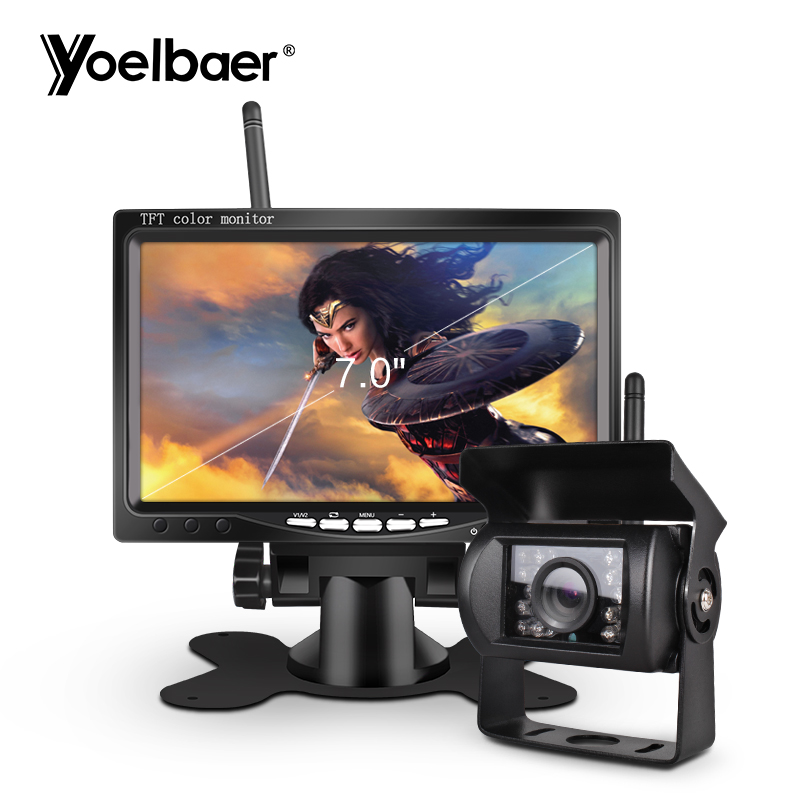

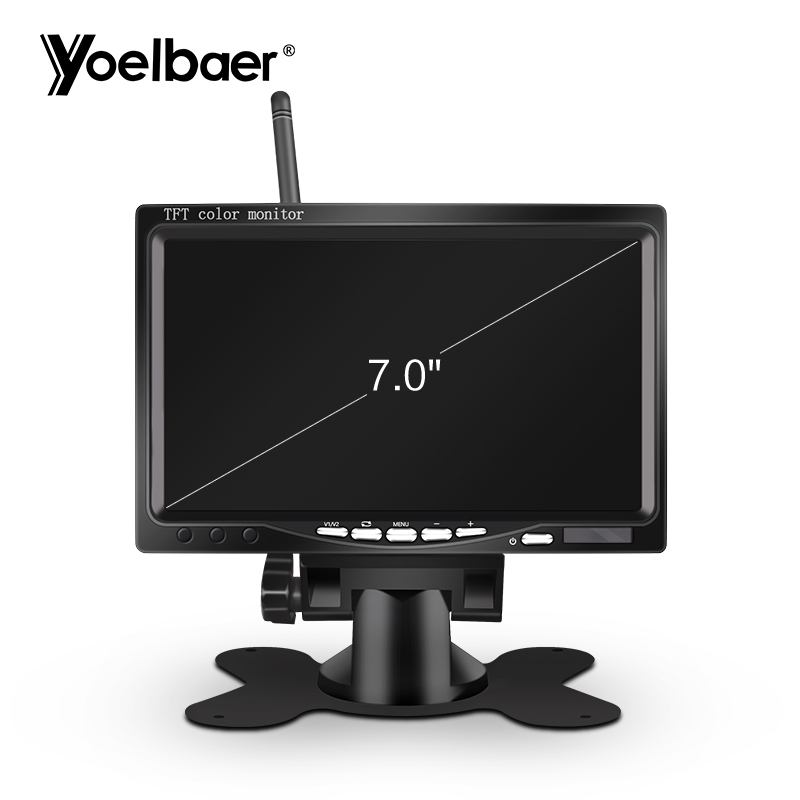

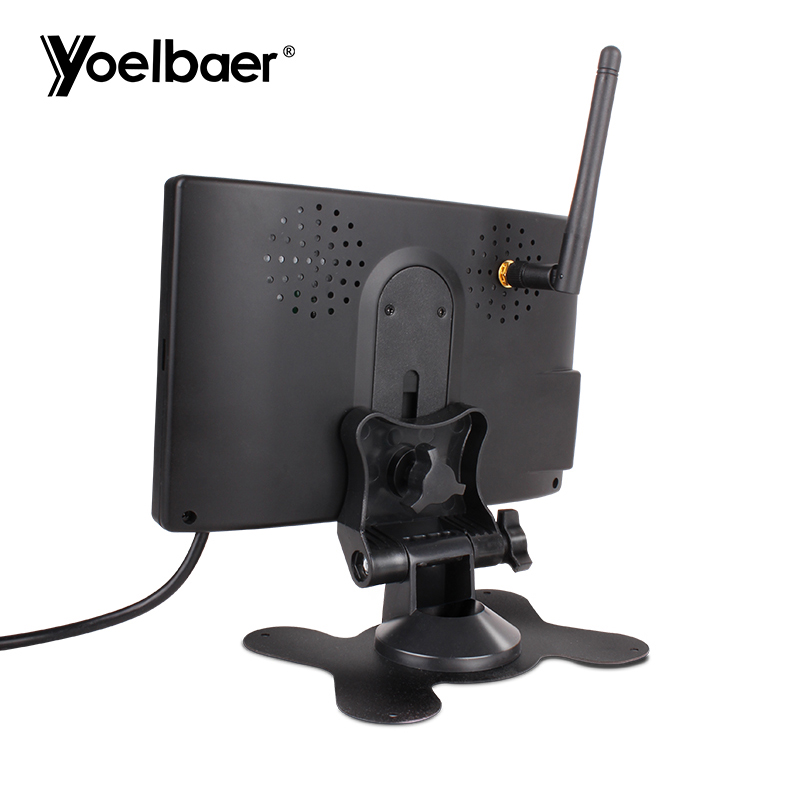

Product picture:
