Wireless Waterproof Truck Bus Reverse Camera System with 7 inch Display Monitor
-Upgraded Easy Setup Wireless Backup Camera and Monitor Kits for Car RV Truck Bus Caravan Bus Motorhome, Built-in Wireless Reverse Camera and 7" TFT LCD Rear View Monitor, support 12V-24V power system.
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-7 inch Rearview Monitor, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color.
-Easy to install -- It comes with a car charger for getting power directly from the car cigarette to monitor.
Wireless Waterproof Truck Bus Reverse Camera System with 7 inch Display Monitor
-Upgraded Easy Setup Wireless Backup Camera and Monitor Kits for Car RV Truck Bus Caravan Bus Motorhome, Built-in Wireless Reverse Camera and 7" TFT LCD Rear View Monitor, support 12V-24V power system.
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-Waterproof Backup Camera -- 18 IR LEDs for Night Vision
-7 inch Rearview Monitor, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color.
-Easy to install -- It comes with a car charger for getting power directly from the car cigarette to monitor.
- Product introduction
Wireless Waterproof Truck Bus Reverse Camera System with 7 inch Display Monitor
| Monitor | |
| Screen Size | 174x114x19 mm |
| Voltage | 9-35V |
| Contrast | 350:1 |
| Brightness | 350cd/m2 |
| Resolution | 800x480Pixels/1024x600Pixels |
| Color | Black, Optional |
| Standard | PAL/NTSC |
| Operate mode | key operation and remote control |
| Transmission | 50m open air |
| Power supply | DC port |
| Ratio | 16:9 |
| Video | Two ways video input |
| Rear-view | V2 auto reverse when trigger activated |
| Power Consumption | 5W |
| Operation temperature | --20℃±75℃ |
| Storage temperature | -30℃±80℃ |
| Camera | |
| Chip | HD CCD |
| Transmission | 50m open air |
| TV system | PAL/NTSC |
| Electronic shutter | 1/60~1/10,000 Seconds |
| Waterproof rate | IP67 |
| Sensing area | 5.961 x 4.276mm |
| Effective pixel | 752x582Pixels/768*494Pixels |
| Gamma consumption | 0.45 |
| Minimum illumination | 0.2Lux/ F1.8=1.2 (0 Lux with Led) |
| Resolution | 480 TVL |
| Lens angle | 120° |
| Pin lens | f=2.8mm/ F=2.0 |
| IR leds | 18PCS |
| Vertical sync. frequency | 50Hz/60Hz |
| Power supply | DC 9-35 V |
| Power | Approx 5W |
| Video output | 1.0Vp-p, 75ohm |
| Horizontal synchronization frequency | 15625KHZ |
| SNR | >48dB |
| Operation temperature | -20°C~ 70°C, RH95% Max |
| Storage temperature | -30°C ~ 85°C, RH95% Max |
| Current Consumption | ≤300mA |
| Scanning system | 2:1 Interlace |
| Application | Universal Cars, Mini-Van,etc |
| Remark | Wireless camera bulit in 2.4Ghz video transmitter |

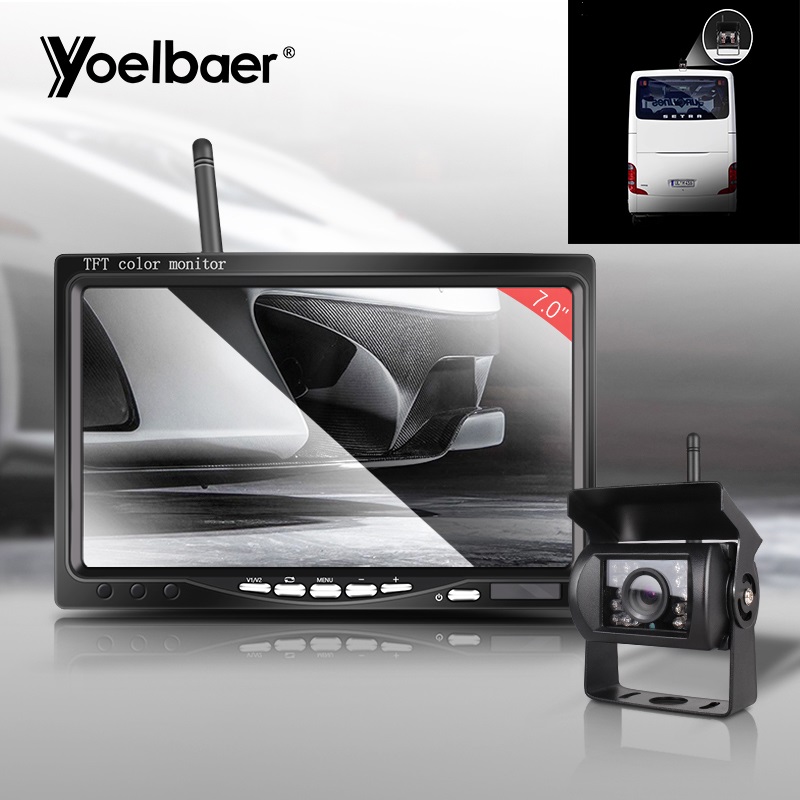

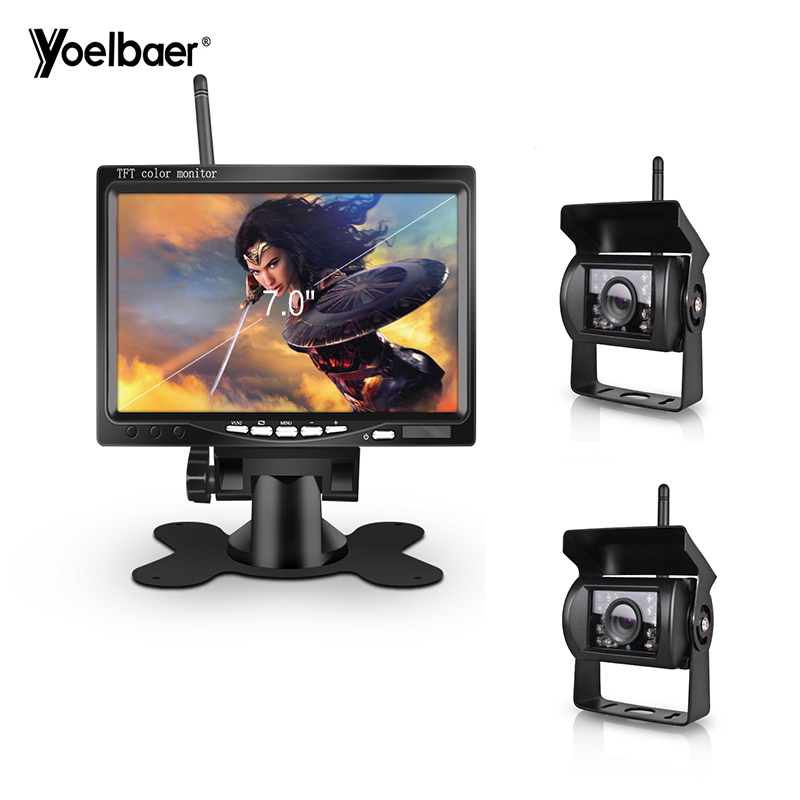

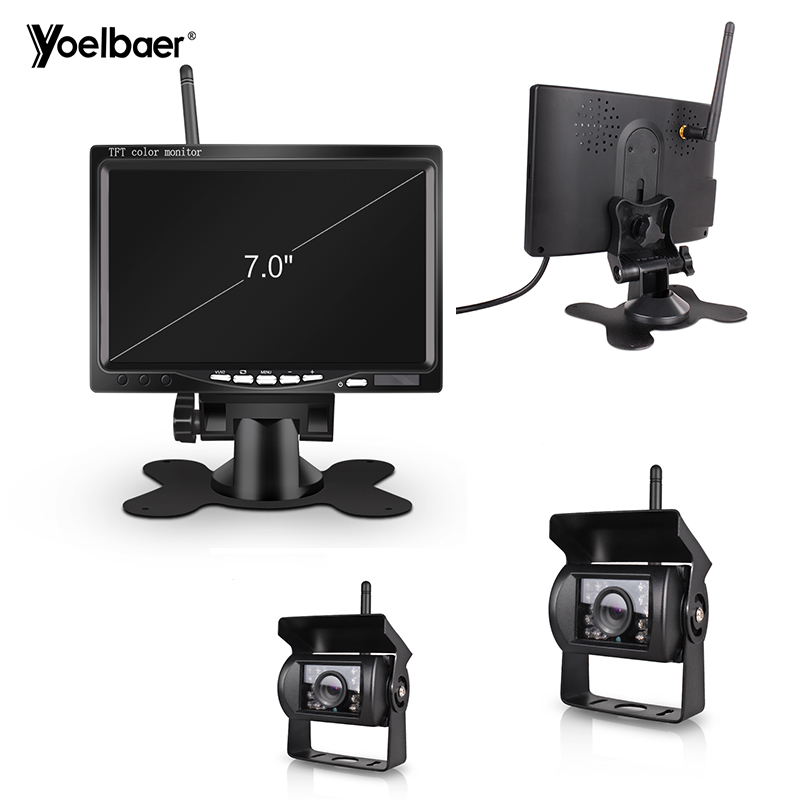

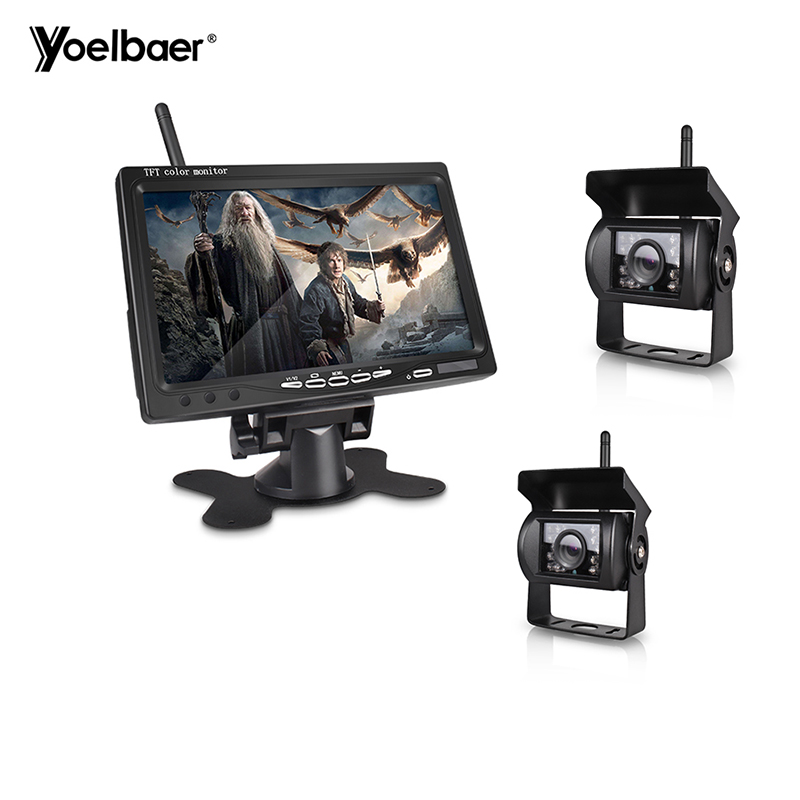

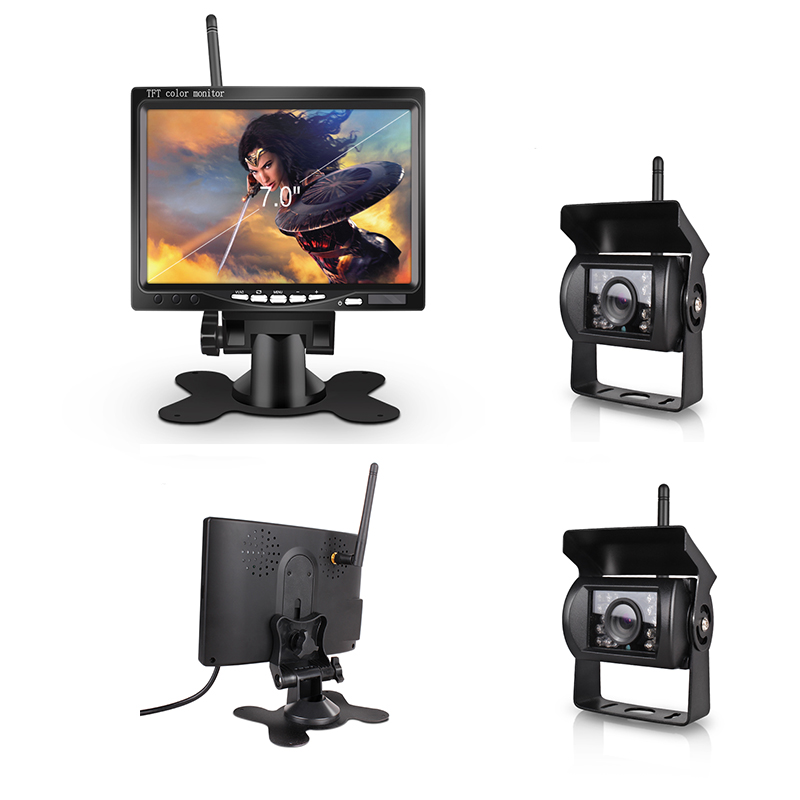

Product show
What is in the package:
