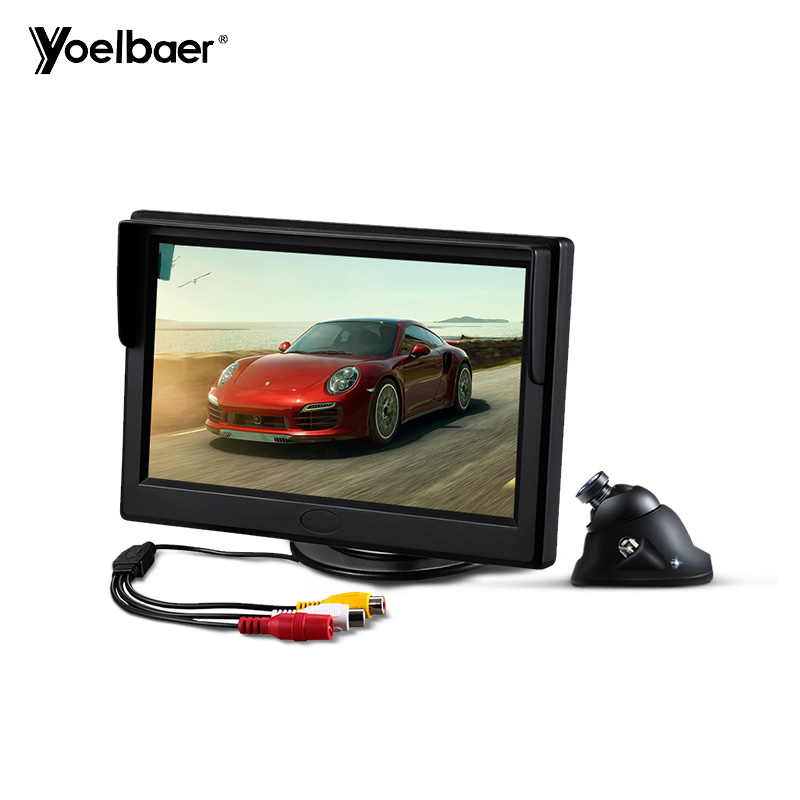

5 Inch TFT LCD Reverse Screen Vehicle Parking Camera With Monitor

-5 inch lcdmonitor connect with infrared cameras, combins to car reversing aid system.

-5 inch lcd monitor, with high resolution 800*480Pixels and 400cd/m2 Brightness, show high definition image.

-Monitor and camera are with AV or Aviation plug available.

-Sensor camera, with good infrared night vision.

-Weatherproof camera, work well in any condition.

-Suit for universal cars.

5 Inch TFT LCD Reverse Screen Vehicle Parking Camera With Monitor

-5 inch lcdmonitor connect with infrared cameras, combins to car reversing aid system.

-5 inch lcd monitor, with high resolution 800*480Pixels and 400cd/m2 Brightness, show high definition image.

-Monitor and camera are with AV or Aviation plug available.

-Sensor camera, with good infrared night vision.

-Weatherproof camera, work well in any condition.

-Suit for universal cars.

Product introduction

5 Inch TFT LCD Reverse Screen Vehicle Parking Camera With Monitor

Monitor
Screen Size	126x83x18mm
Voltage	9-35V
Contrast	400:1
Brightness	400cd/m2
Resolution	800x480TVL
Color	Black, Silver
Standard	PAL/NTSC
Power supply	DC port
Ratio	16:9/4:3
Power	About 7W
Control	OSD 8 languages
Operation temperature	-20°C~70°C
Storage temperature	-30°C~85°C

Camera
Chip	HD CCD
Size	30x50mm
TV system	NTSC60HZ
Shutter speed	1/60-20us
Sensing area	5.961 x 4.276mm
Effective pixel	720x540 Pixels
Horizontal resolution	600TVL
Minimum illumination	0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle	120 Degree
White balance	Auto
Waterproof	IP67
Power supply	DC 9-12V
Power	Approx 7W
Video output	1.0Vp-p, 75ohm
Horizontal synchronization frequency	15625KHZ
SNR	>48dB
Operation temperature	-20°C~ 70°C, RH95% Max
Storage temperature	-30°C ~ 85°C, RH95% Max
Current Consumption	No More than 150mA
Function	Monitoring blind area
Application	Car, mini-van,etc
Remark	The Sensor light will be on in the Dark Condition
	The Sensor Light will be off in the Bright Condition
	LED/Infrared Night Vision optional

Feature:

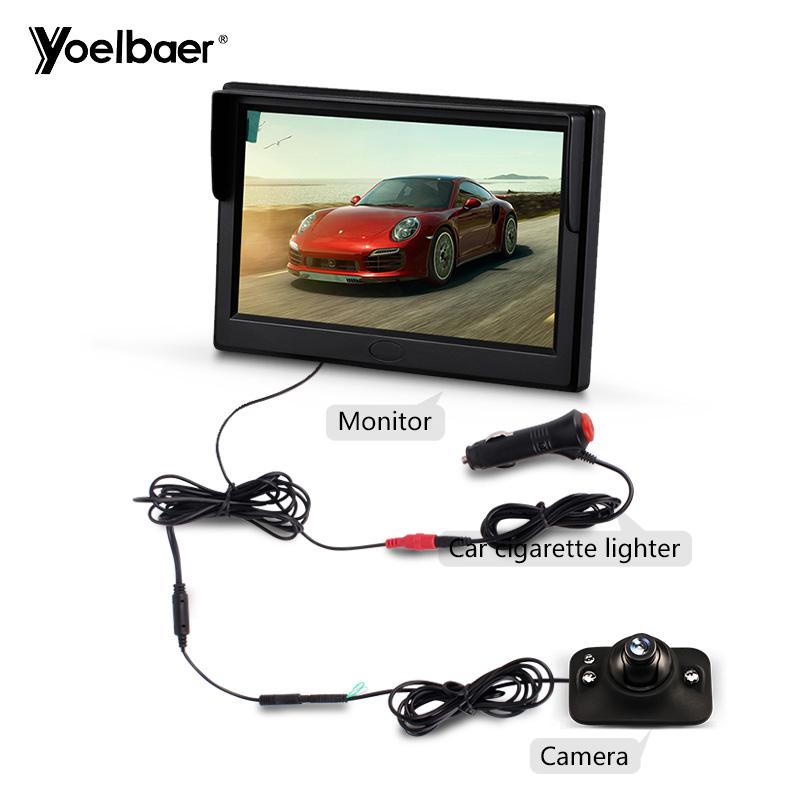

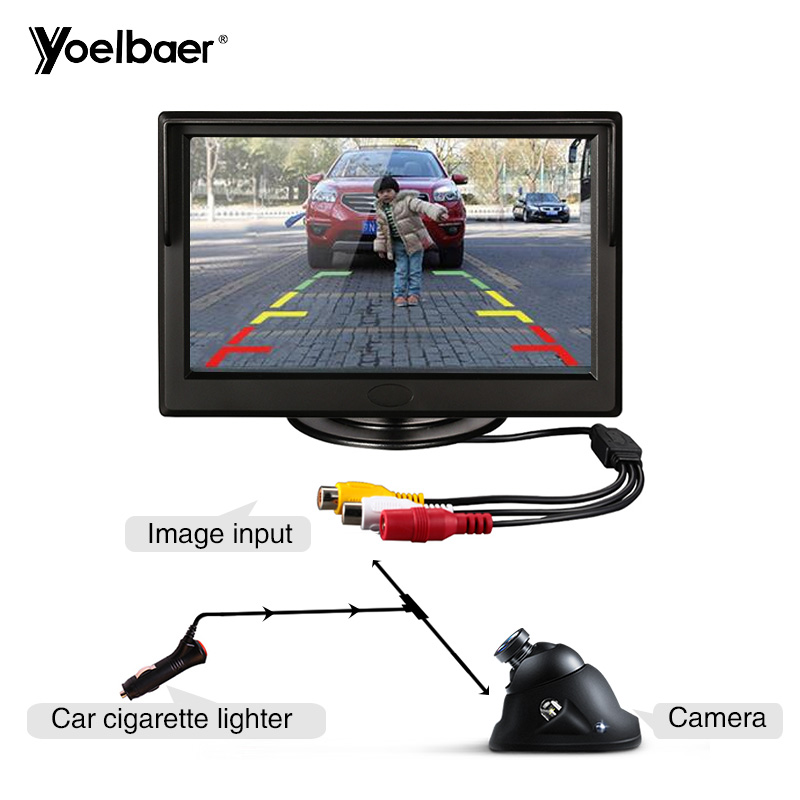

1. 5 inch lcdmonitor connect with infrared camera, combines to car reversing aid system.
2. 5 inch lcd monitor, with high resolution 800x480Pixels and 400cd/m2 Brightness, show high definition image.

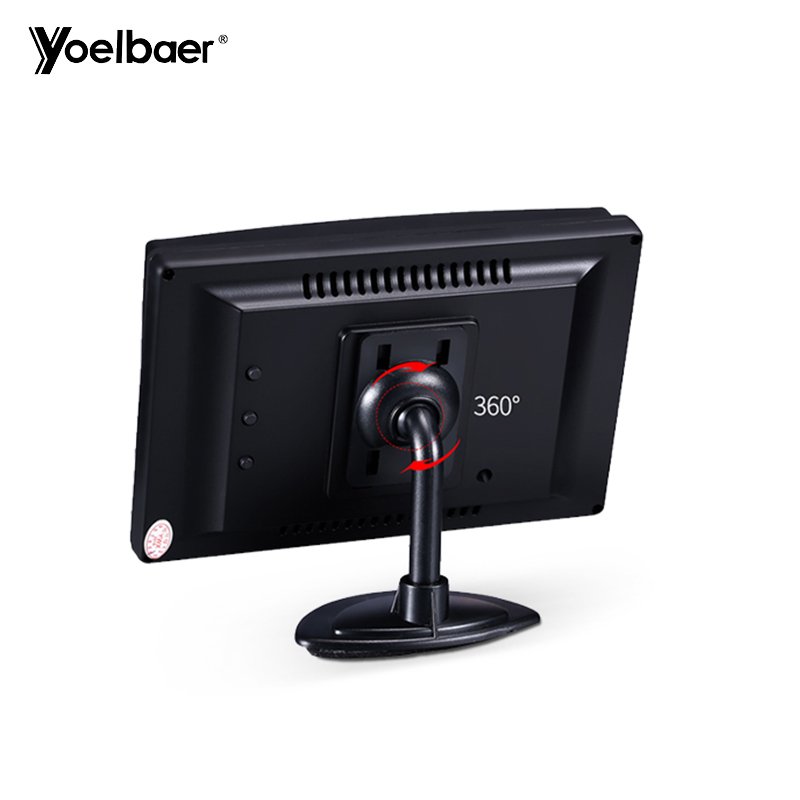

3. Adjustable car mount: the screen can be adjustable by rotating the bracket to see different angles. For easy and autonomous installation
4. Monitor support PAL and NTSC, camera support PAL or NTSC
5. Monitor and camera are with AV or Aviation plug available.
6. Sensor camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
7. Easy installation and operation - the monitor starts automatically and displays the video synchronously from the backup camera when you save your car.
8. Weatherproof camera, work well in any condition.
9. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
10.Suit for universal cars.
