2 Split Screen Display 9-35V Rear View Car Backup Camera Monitor Kit

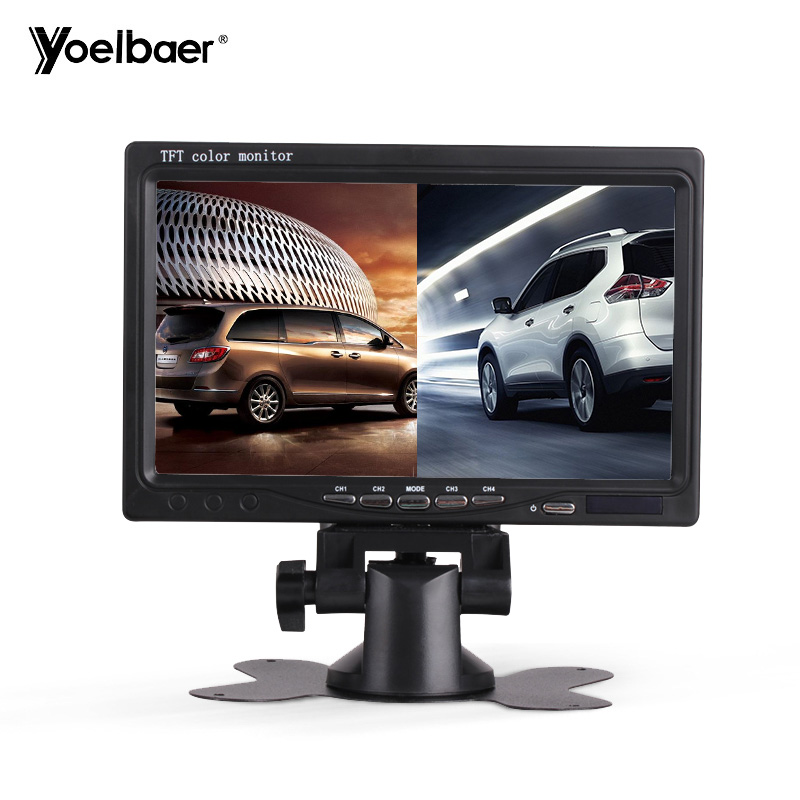

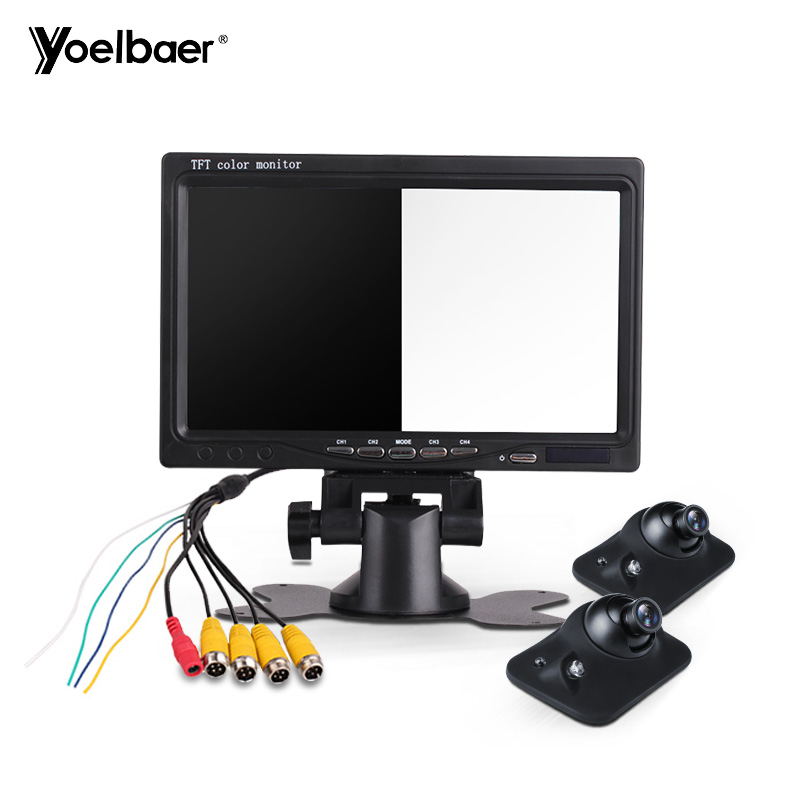

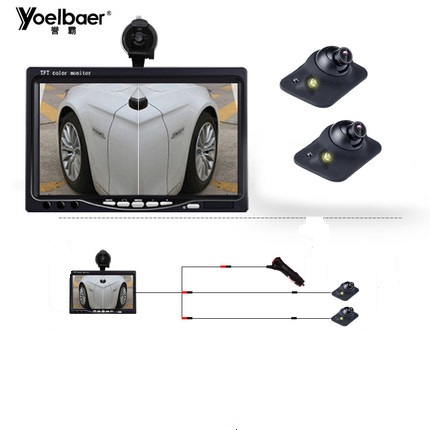

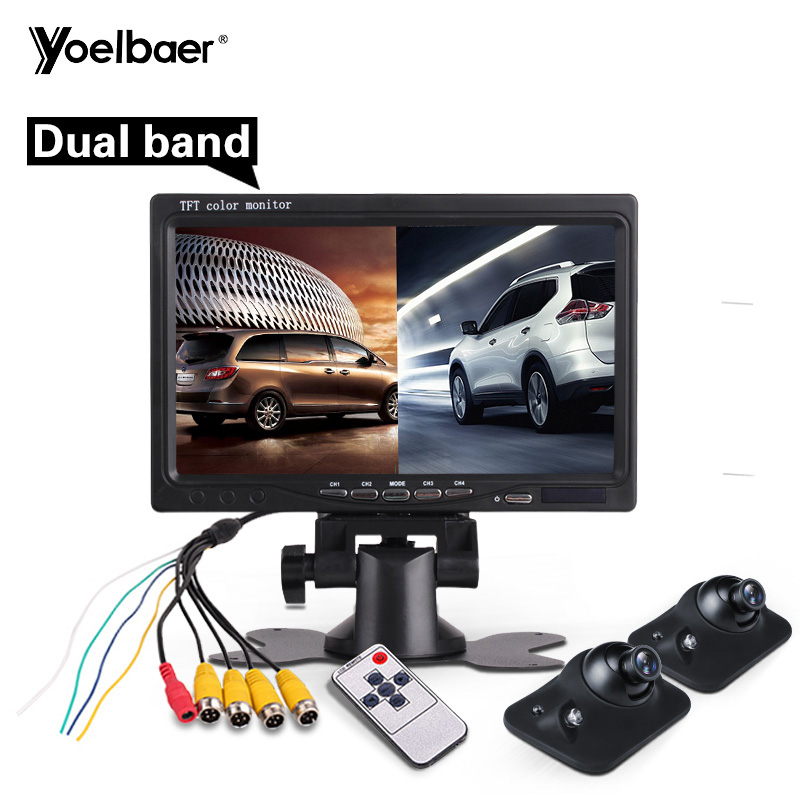

-7 inch lcd monitor connect with 2 infrared camera, combins to car reversing aid system.

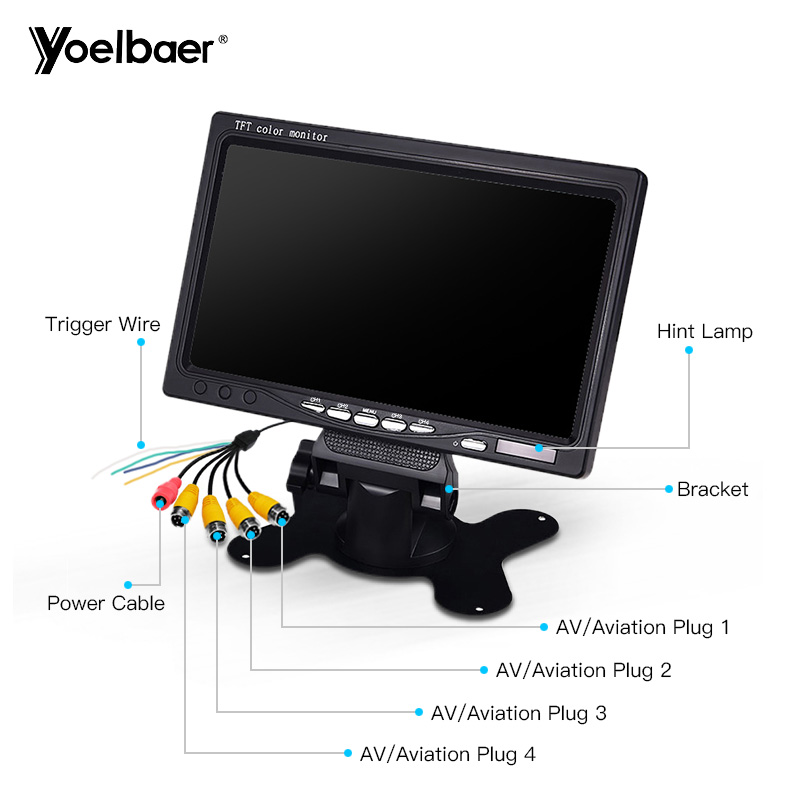

-Monitor and camera are with AV or Aviation plug available.

-Sensor camera, with good infrared night vision.

-Weatherproof camera, work well in any condition.

-Suit for universal cars.

-7 inch lcd monitor connect with 2 infrared camera, combins to car reversing aid system.

-Monitor and camera are with AV or Aviation plug available.

-Sensor camera, with good infrared night vision.

-Weatherproof camera, work well in any condition.

-Suit for universal cars.

2 Split Screen Display 9-35V Rear View Car Backup Camera Monitor Kit

Specification:

Monitor

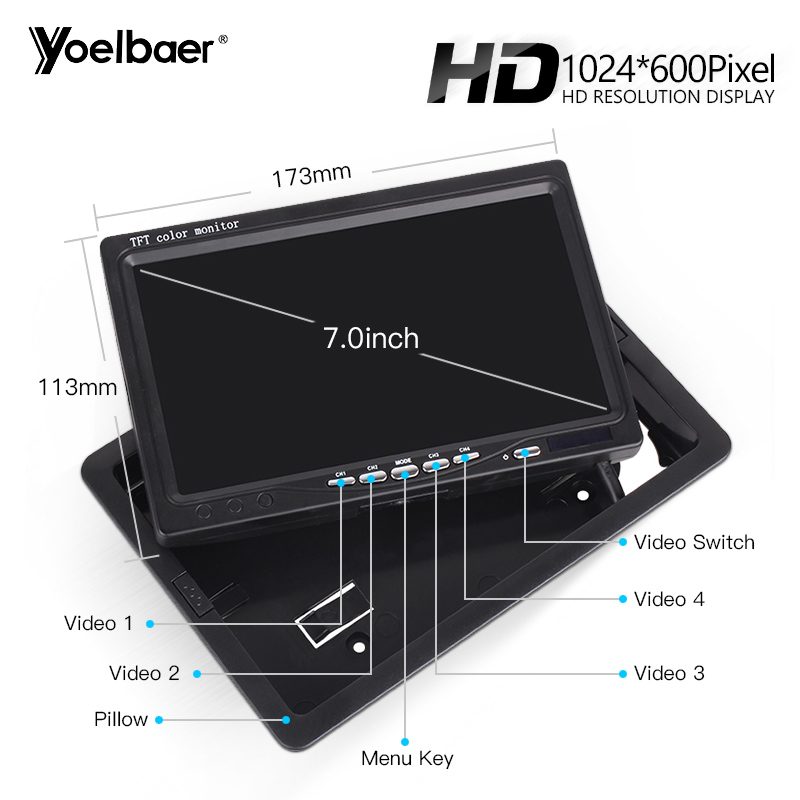

Screen Size	173x113x20mm
Voltage	9-35V
Contrast	350:1
Brightness	350cd/m2
Resolution	800x480/1024x600Pixels optional
Color	Black, Optional
Standard	PAL/NTSC
Power supply	DC port
Ratio	16:9/4:3
Power	About 7W
Control	OSD 8 languages
Operation temperature	-20°C~50°C
Storage temperature	-30°C~70°C
Installation	Foldable or desktop

Camera
Chip	HD CCD
Size	30x50mm
TV system	NTSC60HZ
Shutter speed	1/60-20us
Sensing area	5.961 x 4.276mm
Effective pixel	720*540 Pixels
Horizontal resolution	600TVL
Minimum illumination	0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle	120 Degree
White balance	Auto
Waterproof	IP67
Power supply	DC 9-12V
Power	Approx 5W
Video output	1.0Vp-p, 75ohm
Horizontal synchronization frequency	15625KHZ
SNR	>48dB
Operation temperature	-20°C~ 70°C, RH95% Max
Storage temperature	-30°C ~ 85°C, RH95% Max
Current Consumption	No More than 150mA
Function	Monitoring blind area
Application	Car, mini-van,etc
Remark	The Sensor light will be on in the Dark Condition
	The Sensor Light will be off in the Bright Condition
	LED/Infrared Night Vision optional
