7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

-7 inch lcd monitor connect with 4 infrared camera, combines to car reversing aid system.
-Monitor and camera with AV or Aviation plug are available.
-Sensor camera, with good infrared night vision.
-Weatherproof camera, work well in any condition.
-Suit for universal cars.
  • Product introduction
7 Inch Quad Reversing Monitor and 4 Cameras Car Security System



 Specification:

Monitor
Screen Size 173x113x20mm
Voltage 9-35V
Contrast   350:1
Brightness  400cd/m2
Resolution 800x480/1024x600Pixels optional
Color Black, Optional
Standard PAL/NTSC
Power supply DC port
Ratio 16:9/4:3
Power About 7W
Control OSD 8 languages
Operation temperature -20°C~50°C
Storage temperature -30°C~70°C
Installation Foldable or desktop

Camera
Chip HD CCD
Size 30x50mm
TV system NTSC60HZ
Shutter speed 1/60-20us
Sensing area 5.961 x 4.276mm
Effective pixel 720*540 Pixels
Horizontal resolution 600TVL
Minimum illumination 0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle 120 Degree
White balance Auto
Waterproof IP67
Power supply DC 9-12V
Power Approx 5W
Video output 1.0Vp-p, 75ohm
Horizontal synchronization frequency 15625KHZ
SNR >48dB
Operation temperature -20°C~ 70°C, RH95% Max
Storage temperature -30°C ~ 85°C, RH95% Max
Current Consumption                         No More than 150mA
Function Monitoring blind area
Application Car, mini-van,etc
Remark The Sensor light will be on in the Dark Condition
  The Sensor Light will be off in the Bright Condition
  LED/Infrared Night Vision optional

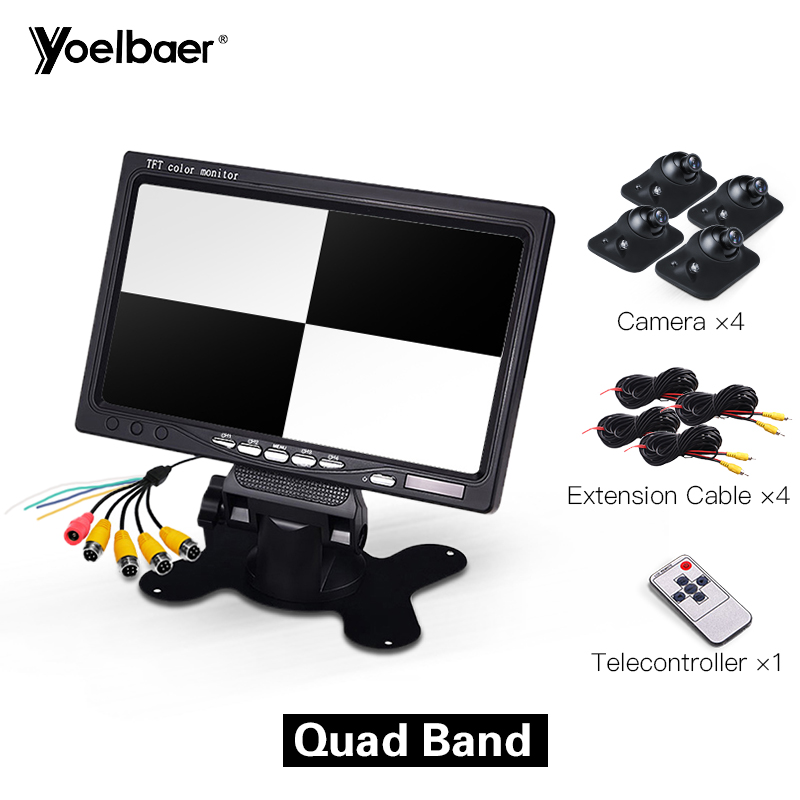

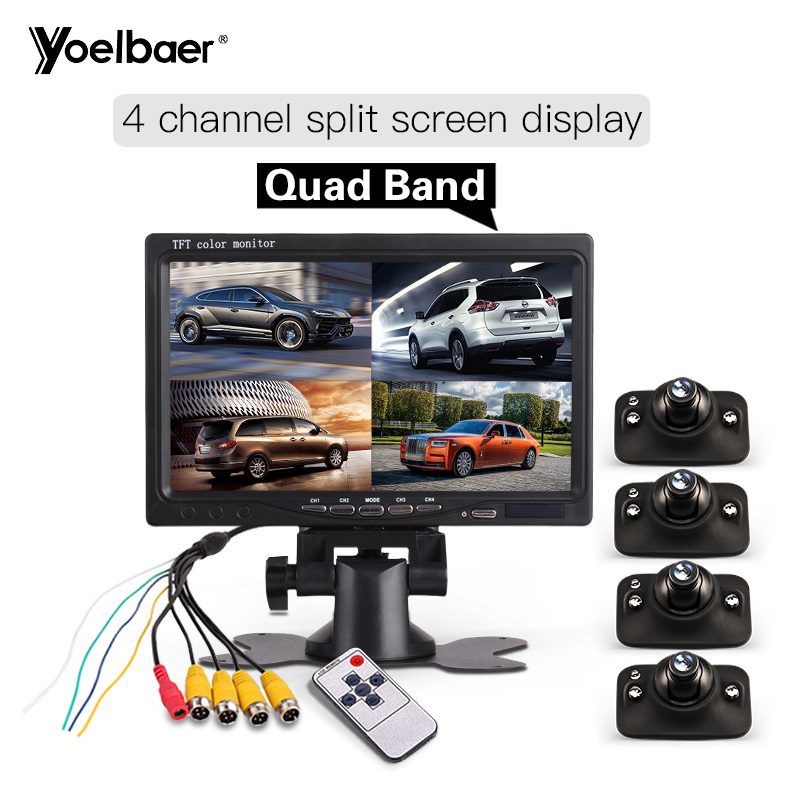

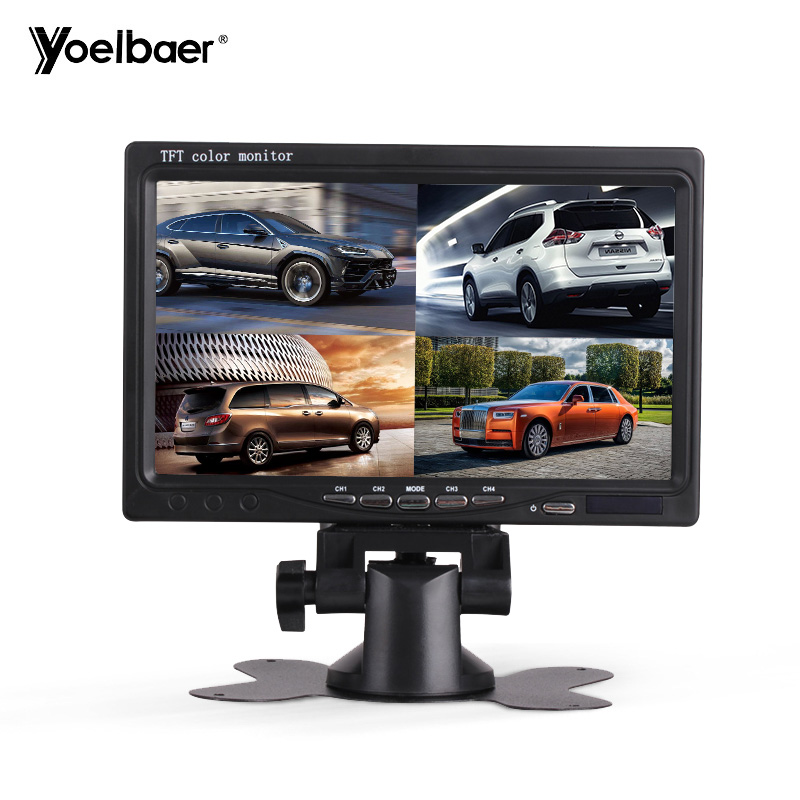

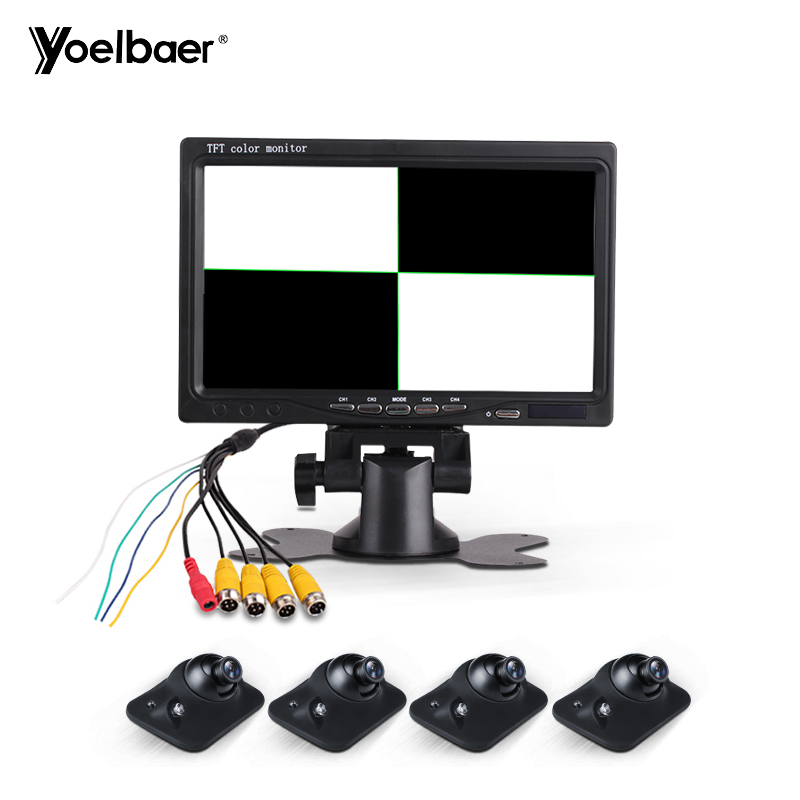

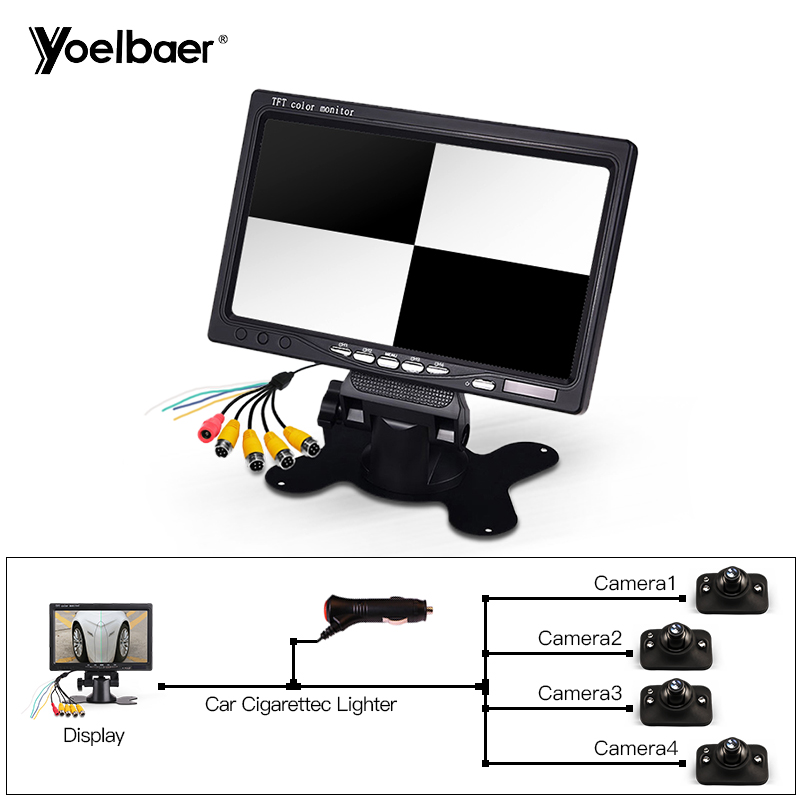

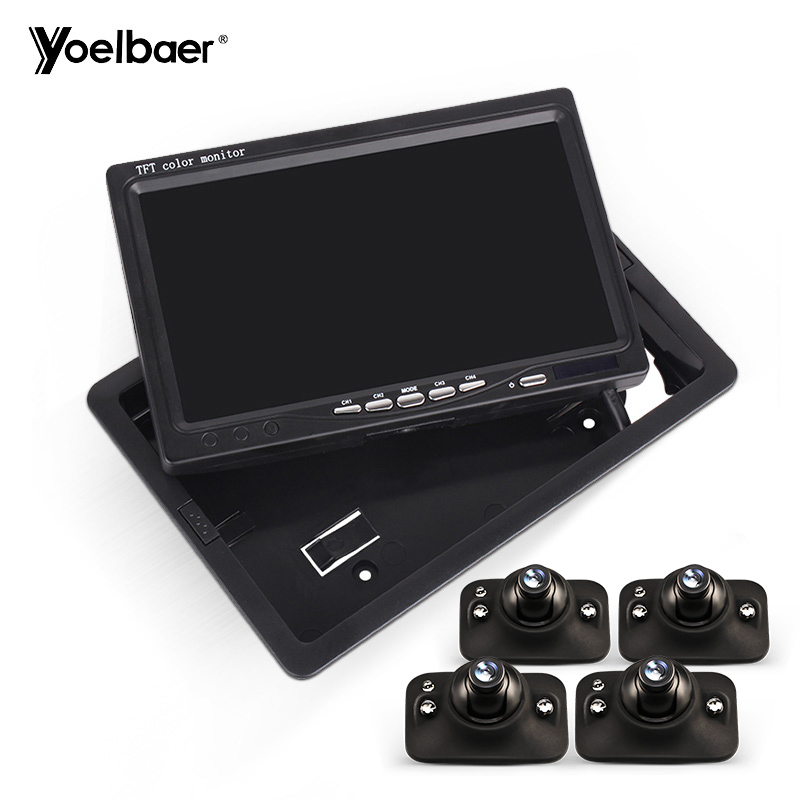

Product show

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System



7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System

7 Inch Quad Reversing Monitor and 4 Cameras Car Security System
