Bus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor System

Bus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor System

-7 inch lcd monitor connect with 3 bus camera, combines to bus reversing aid system.-7 inch lcd monitor, with high resolution 1024*600 Pixels and 400cd/m2 Brightness, show high definition image.
-Monitor support PAL and NTSC, camera support PAL or NTSC
-Monitor and camera with AV or Aviation plug are available.
-18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Applicable the variety of vehicles: car, truck, RV, mini van etc.

  • Product introduction
Bus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor System



Monitor
Screen Size 173x113x28mm
Voltage 9-35V
Contrast   400:1
Brightness  400cd/m2
Resolution 1024x600Pixels
Color Black, Optional
Standard PAL/NTSC
Power supply DC port
Ratio 16:9/4:3
Power About 7W
Control OSD 8 languages
Operation temperature -20°C~50°C
Storage temperature -30°C~85°C
Installation Foldable or desktop

Camera
Chip HD CCD
Size 73x40x25MM
TV system NTSC60HZ/PAL50HZ
Shutter speed 1/60-20us
Sensing area 5.961 x 4.276mm
Effective pixel 648x488 Pixels
Horizontal resolution 520TVL
Minimum illumination 0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle 120 Degree
White balance Auto
Waterproof IP67
Power supply DC 12-24V
Power Approx 7W
Video output 1.0Vp-p, 75ohm
Horizontal synchronization frequency 15625KHZ
SNR >48dB
Operation temperature -20°C~ 70°C, RH95% Max
Storage temperature -30°C ~ 85°C, RH95% Max
Current Consumption                         No More than 150mA
Function Monitoring blind area
Application Car, mini-van,etc

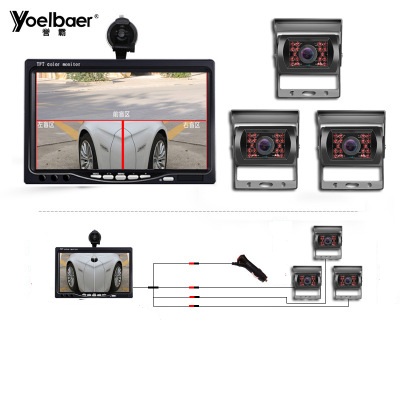

Remark Default with Parking line for Rearview.Front view accept



Feature:

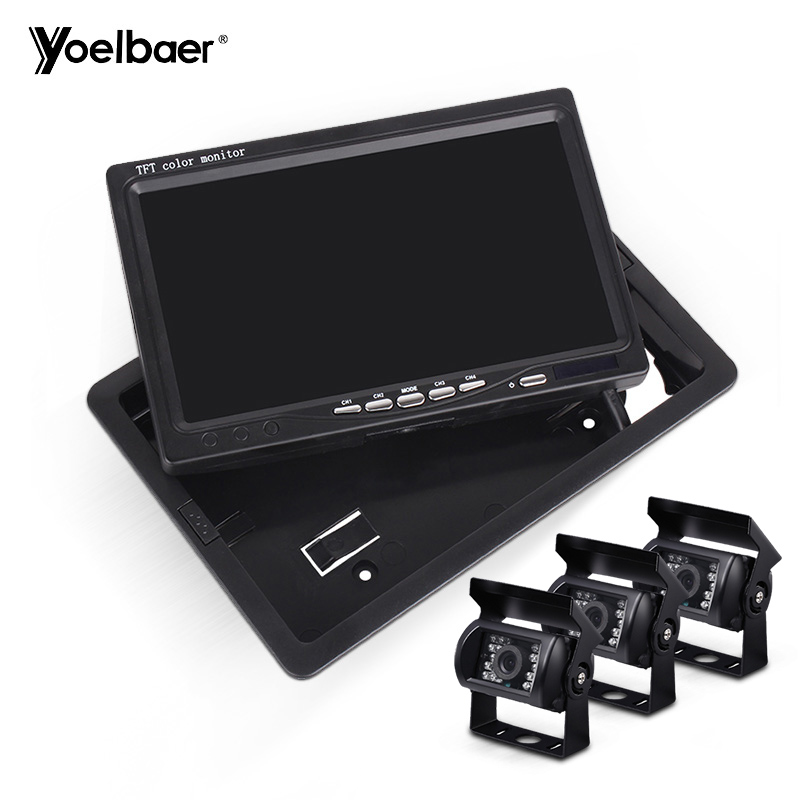

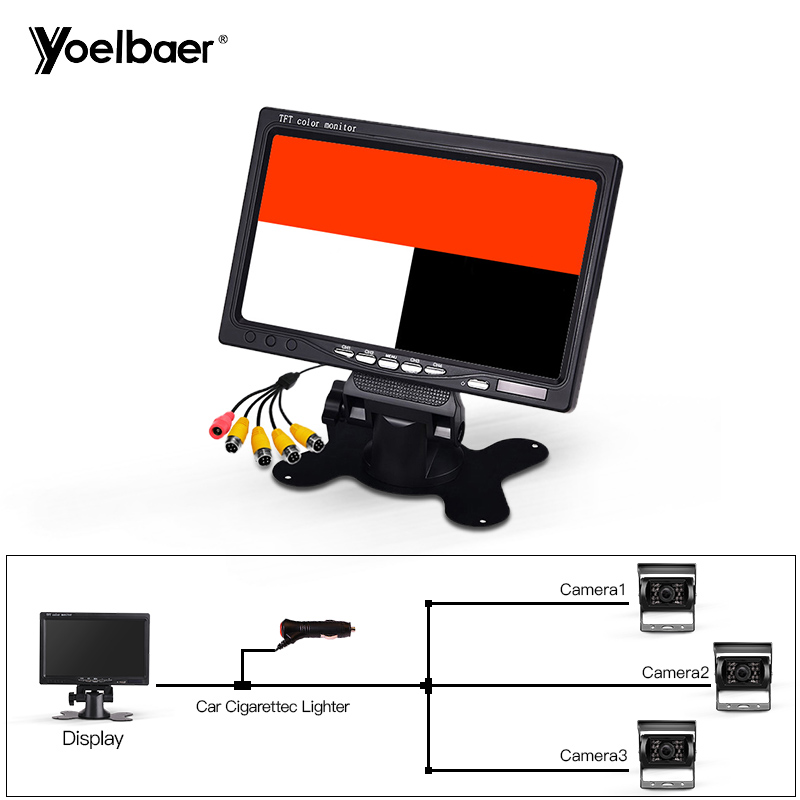

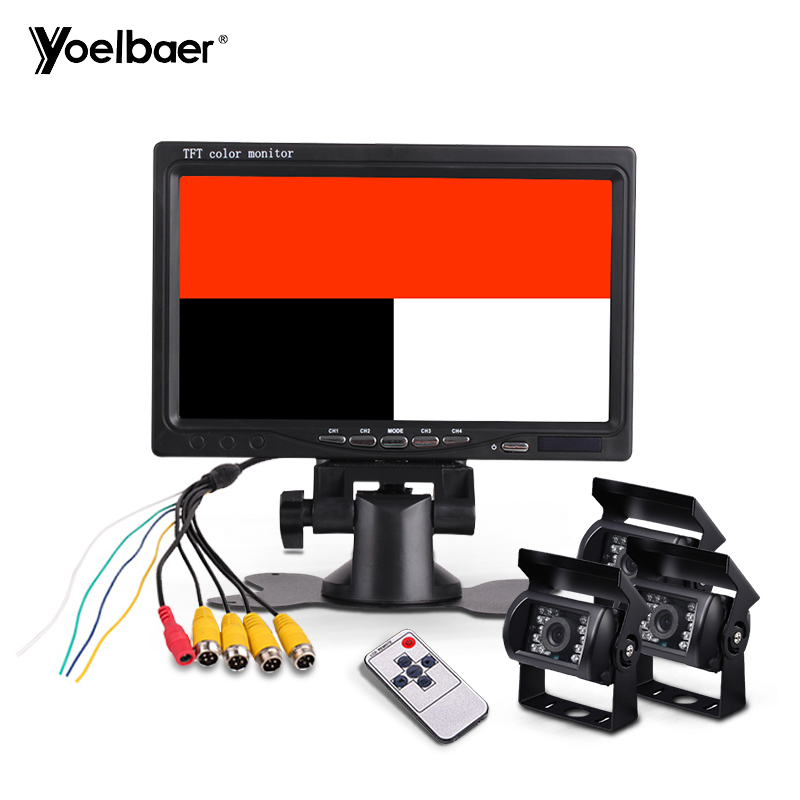

1. 7 inch quad monitor connect with 3 bus cameras, combins to bus reversing aid system.

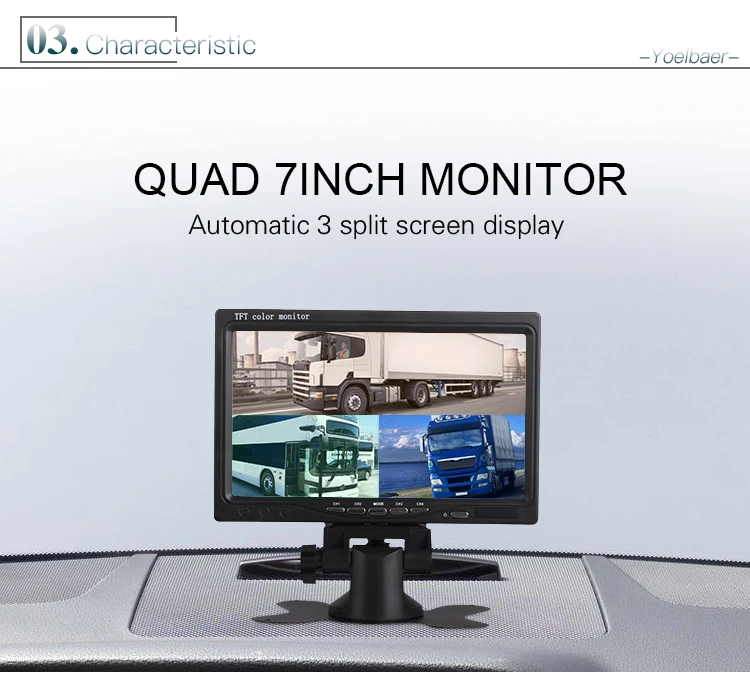

2. 7 inch lcd monitor, with high resolution 1024*600Pixels and 400cd/m2 Brightness, show high definition image, and can show 3 images at the same time
3. Adjustable car mount: the screen can be adjustable by rotating the bracket to see different angles. For easy and autonomous installation
4. Monitor support PAL and NTSC, camera support PAL or NTSC

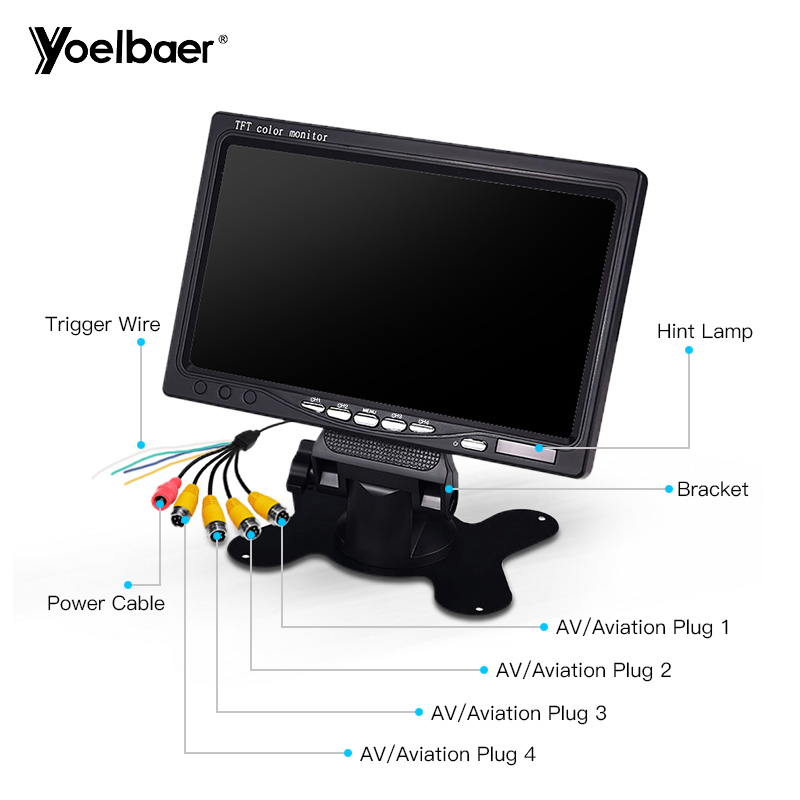

5. Monitor and camera are with AV or Aviation plug available.

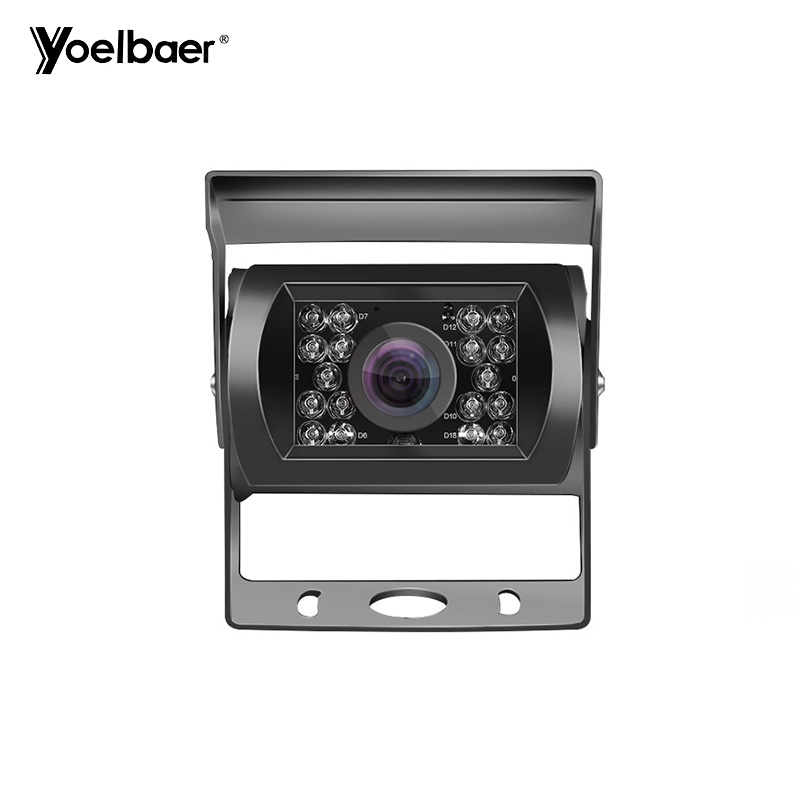

6. 18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
7. Easy installation and operation - the monitor starts automatically and displays the video synchronously from the backup camera when you save your car.
8. Hard metal camera, waterproof and mud. It can last longer without heating, so you can show the mirror at any time.
9. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
10.Applicable the variety of vehicles: car, truck, RV, mini van etc.



Product picture:

Bus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor SystemBus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor SystemBus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor SystemBus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor SystemBus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor System

Packaging & Shipping

Packaging:

Bus Reverse Screen 360 Rear View Camera Mirror 7 inch Monitor System

Shipping:



By Sea, Air, Express,etc
