Parking Assistance System 4 Camera 7 Inch Quad LCD Car Monitor for Truck Bus

Parking Assistance System 4 Camera 7 Inch Quad LCD Car Monitor for Truck Bus

-7 inch lcd monitor connect with 4 bus camera, combines to bus reversing aid system.-7 inch lcd monitor, with high resolution 1024*600 Pixels and 400cd/m2 Brightness, show high definition image.
-Monitor support PAL and NTSC, camera support PAL or NTSC

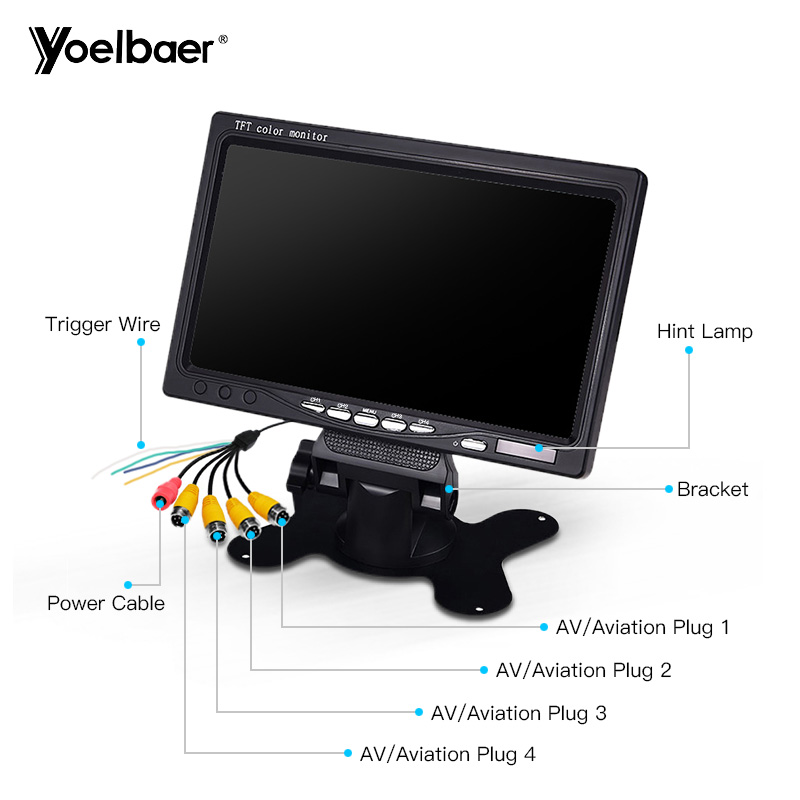

-Monitor and camera with AV or Aviation plug are available.
-18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Applicable the variety of vehicles: car, truck, RV, mini van etc

  • Product introduction
Parking Assistance System 4 Camera 7 Inch Quad LCD Car Monitor For Truck Bus



 Specification:

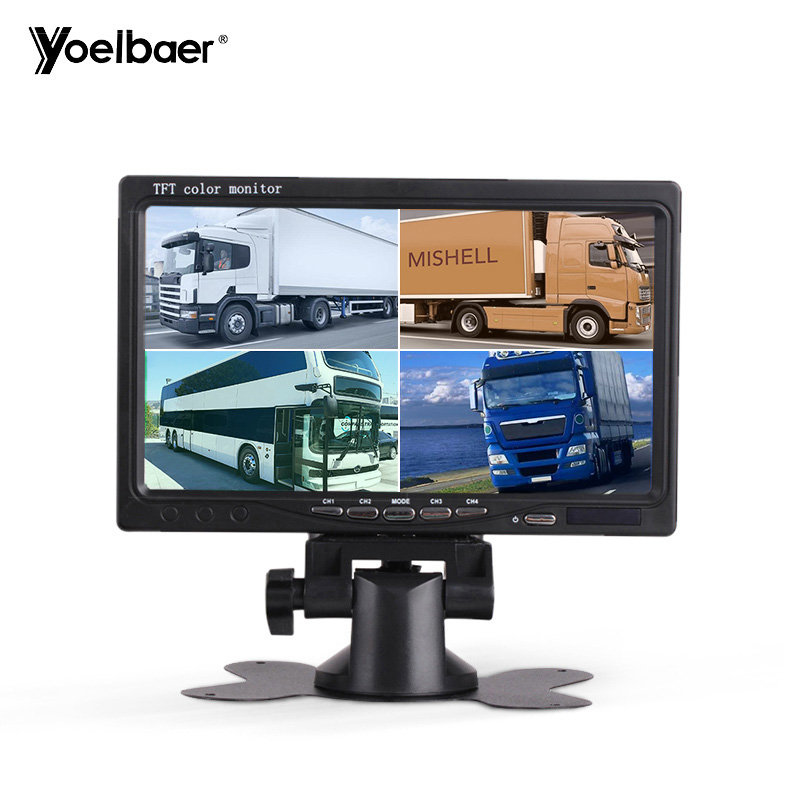

Monitor
Screen Size 173x113x20mm
Voltage 9-35V
Contrast   350:1
Brightness  400cd/m2
Resolution 1024x600Pixels optional
Color Black, Optional
Standard PAL/NTSC
Power supply DC port
Ratio 16:9/4:3
Power About 7W
Control OSD 8 languages
Operation temperature -20°C~50°C
Storage temperature -30°C~70°C
Installation Foldable or desktop

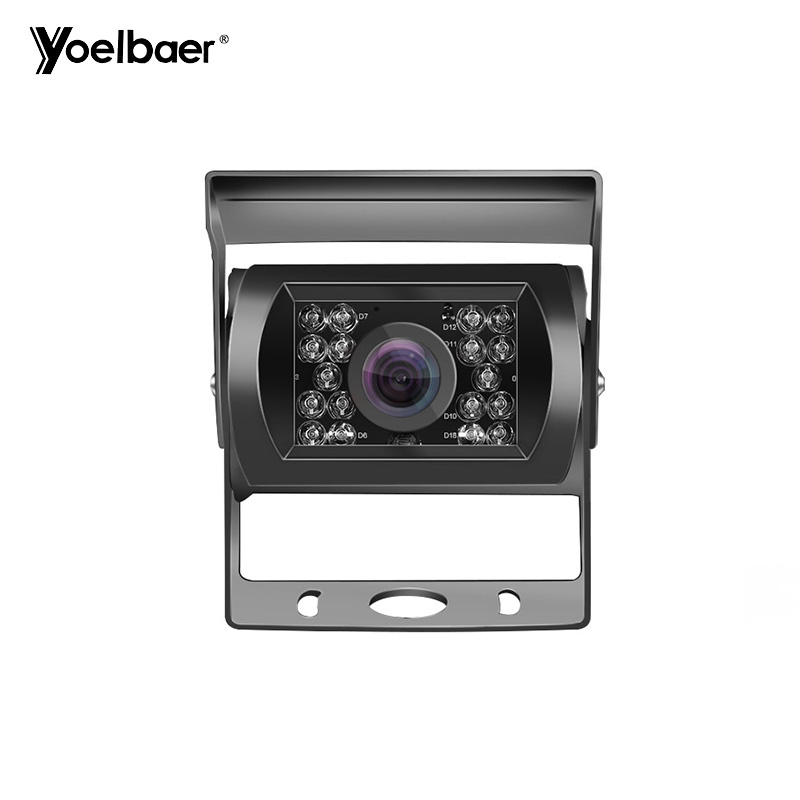

Camera
Chip HD CCD
Size 73x40x25MM
TV system NTSC60HZ/PAL50HZ
Shutter speed 1/60-20us
Sensing area 5.961 x 4.276mm
Effective pixel 648x488 Pixels
Horizontal resolution 520TVL
Minimum illumination 0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle 120 Degree
White balance Auto
Waterproof IP67
Power supply DC 12-24V
Power Approx 7W
Video output 1.0Vp-p, 75ohm
Horizontal synchronization frequency 15625KHZ
SNR >48dB
Operation temperature -20°C~ 70°C, RH95% Max
Storage temperature -30°C ~ 85°C, RH95% Max
Current Consumption                         No More than 150mA
Function Monitoring blind area
Application Bus,Truck,etc
Remark Default with Parking line for Rearview.Front view  accept

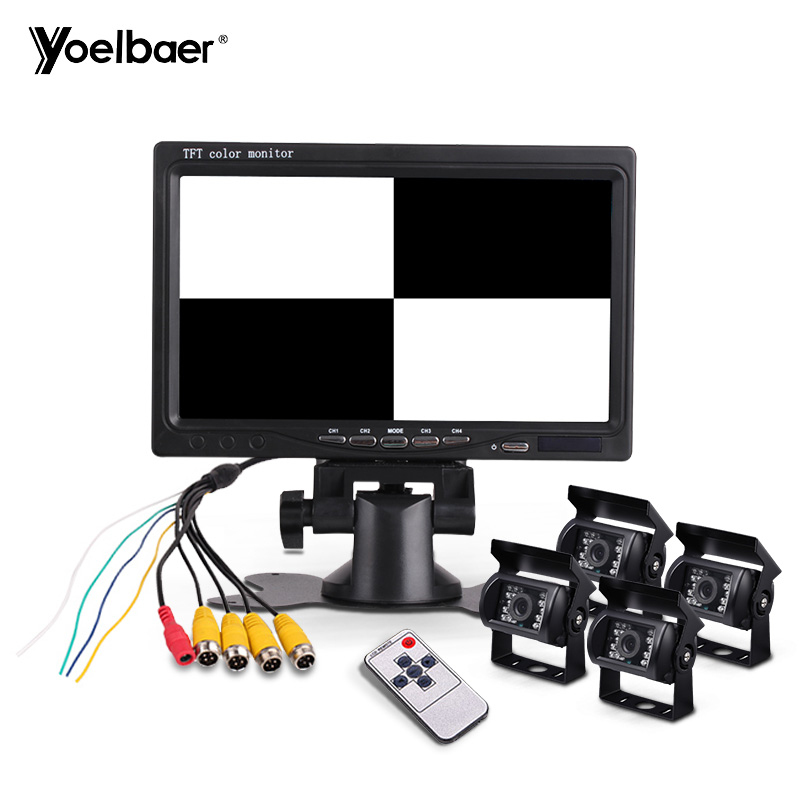

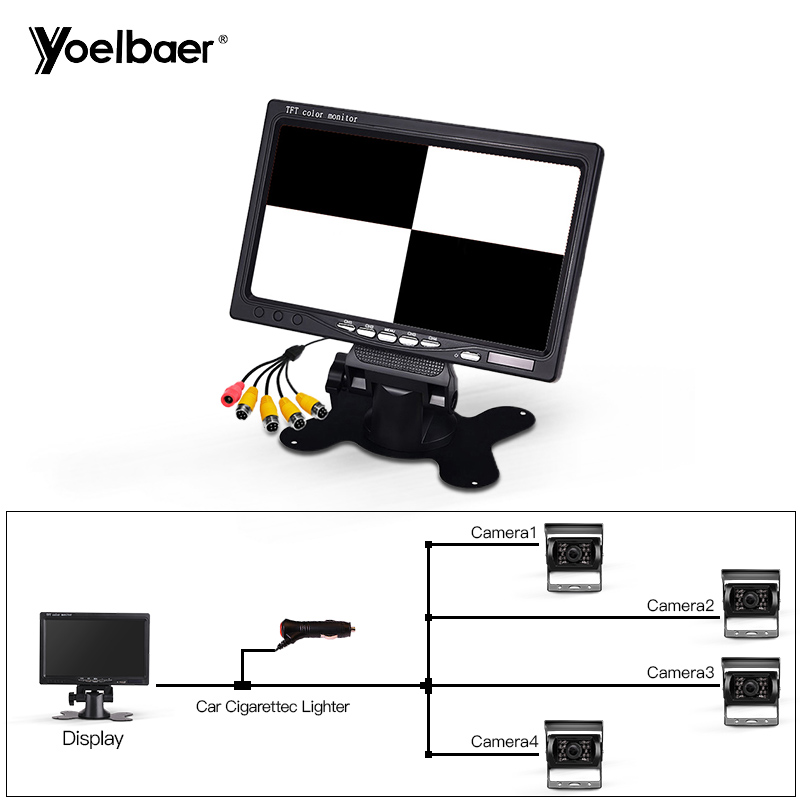

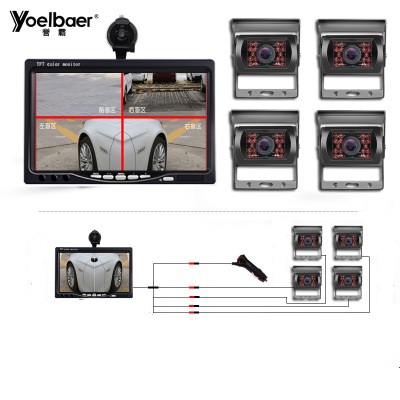

Product show

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera

Parking Assistance System 4 Camera With 7 Inch Quad View LCD Car Monitor For RV Truck Bus Night Vision Camera
