School Bus Monitor System Car 9 Inch LCD Screen Truck Reverse Security Camera
-Monitor support PAL and NTSC, camera support PAL or NTSC-18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Easy installation and operation
-Hard metal camera, waterproof and mud. It can last longer without heating
-Applicable the variety of vehicles: truck, RV, mini van etc.
School Bus Monitor System Car 9 Inch LCD Screen Truck Reverse Security Camera
-Monitor support PAL and NTSC, camera support PAL or NTSC-18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Easy installation and operation
-Hard metal camera, waterproof and mud. It can last longer without heating
-Applicable the variety of vehicles: truck, RV, mini van etc.
- Product introduction
School Bus Monitor System Car 9 Inch LCD Screen Truck Reverse Security Camera
Specifications:

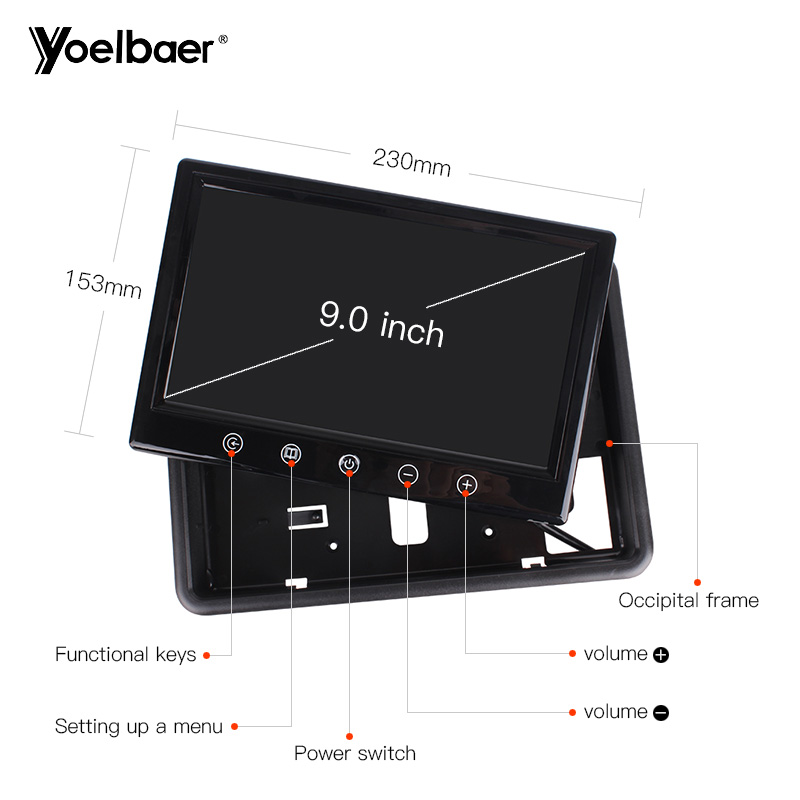

| Monitor | |
| Screen Size | 230*153*25MM |
| Voltage | 9-35V |
| Contrast | 400:1 |
| Brightness | 400cd/m2 |
| Resolution | 800*480/1024x600Pixels optional |
| Color | Black, Optional |
| Standard | PAL/NTSC |
| Power supply | DC port |
| Ratio | 16:9/4:3 |
| Power | About 7W |
| Control | OSD 8 languages |
| Operation temperature | -20°C~50°C |
| Storage temperature | -30°C~70°C |
| Installation | Foldable or desktop |

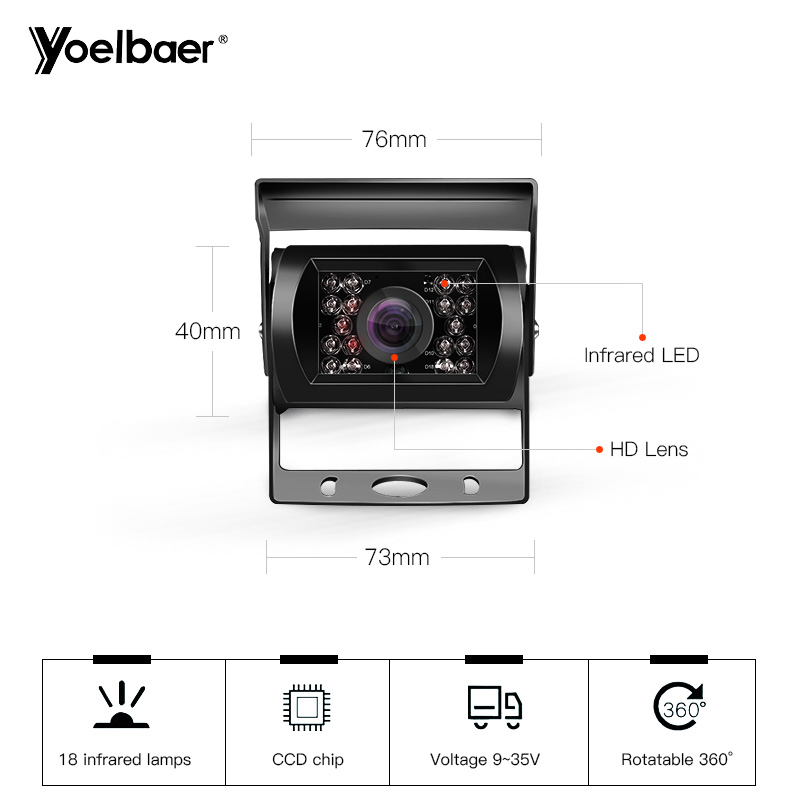

| Camera | |
| Chip | HD CCD |
| Size | 73x40x25MM |
| TV system | NTSC60HZ/PAL50HZ |
| Shutter speed | 1/60-20us |
| Sensing area | 5.961 x 4.276mm |
| Effective pixel | 648x488 Pixels |
| Horizontal resolution | 520TVL |
| Minimum illumination | 0.2Lux/ F1.8=1.2 (0 Lux with Led) |
| View Angle | 120 Degree |
| White balance | Auto |
| Waterproof | IP67 |
| Power supply | DC 12-24V |
| Power | Approx 7W |
| Video output | 1.0Vp-p, 75ohm |
| Horizontal synchronization frequency | 15625KHZ |
| SNR | >48dB |
| Operation temperature | -20°C~ 70°C, RH95% Max |
| Storage temperature | -30°C ~ 85°C, RH95% Max |
| Current Consumption | No More than 150mA |
| Function | Monitoring blind area |
| Application | Bus,Truck,etc |
| Remark | Default with Parking line for Rearview.Front view accept |
Feature:
1. Monitor support PAL and NTSC, camera support PAL or NTSC
2. 18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
3. Easy installation and operation - the monitor starts automatically and displays the video synchronously from the backup camera when you save your car.
4. Hard metal camera, waterproof and mud. It can last longer without heating, so you can show the mirror at any time.
5. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
6. Applicable the variety of vehicles: car, truck, RV, mini van etc.
Product picture:
Packaging & Shipping
Packaging:
Shipping:
By Sea, Air, Express,etc
