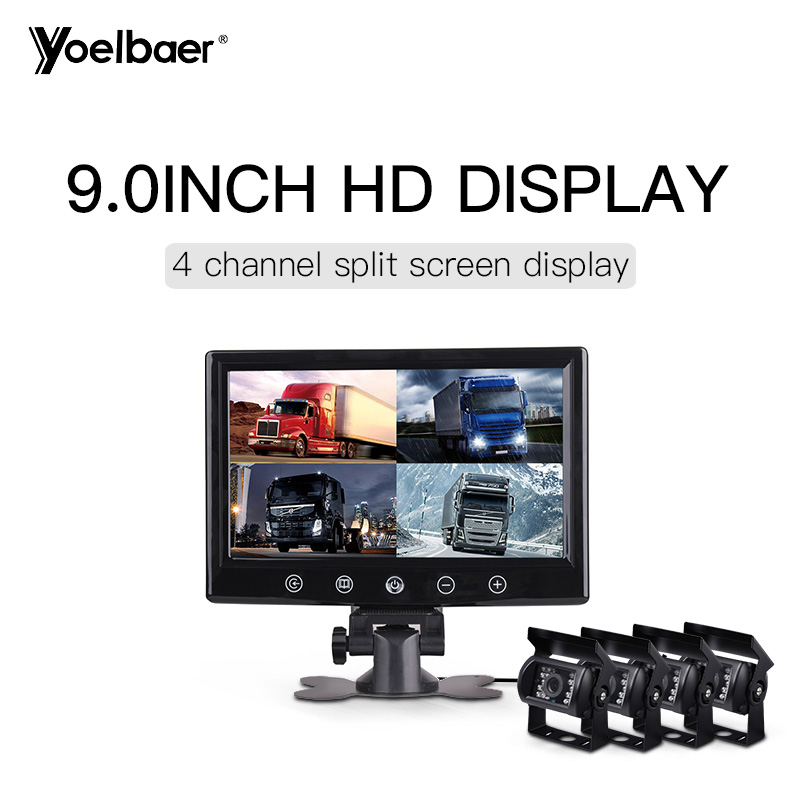

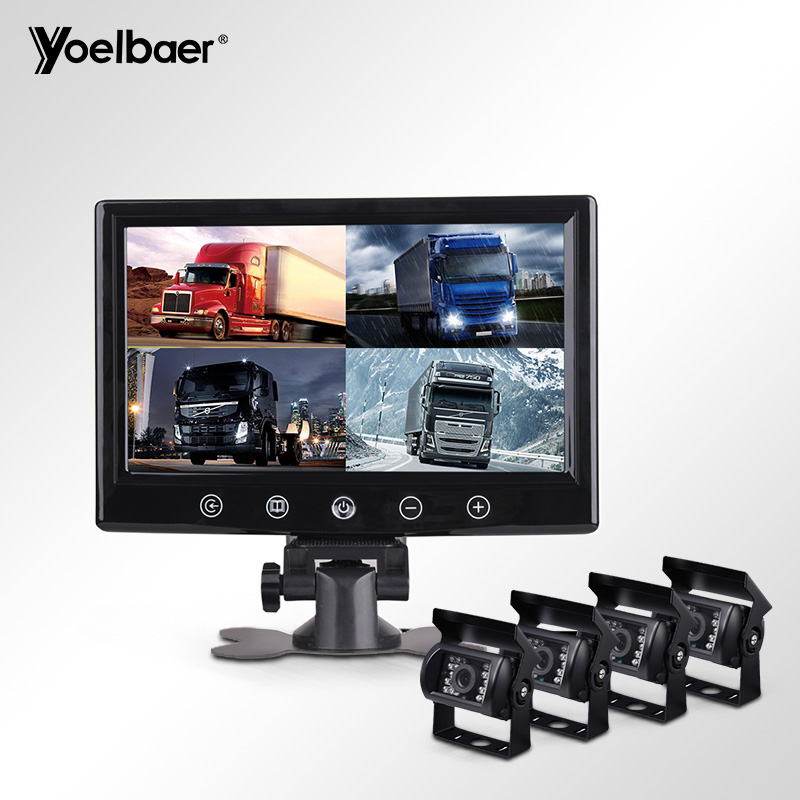

360 Front Side Rear View Camera 4 Split Screen Monitoring System for Truck

-Monitor support PAL and NTSC, camera support PAL or NTSC-18 led camera, with good infrared night vision, can help driver see the situation around the car, even in the day or night.
-Easy installation and operation

-Hard metal camera, waterproof and mud. It can last longer without heating

-Applicable the variety of vehicles: truck, RV, mini van etc.

360 Front Side Rear View Camera 4 Split Screen Monitoring System for Truck

-Hard metal camera, waterproof and mud. It can last longer without heating

-Applicable the variety of vehicles: truck, RV, mini van etc.

Product introduction

360 Front Side Rear View Camera 4 Split Screen Monitoring System for Truck

360 Front Side Rear View Camera 4 Split Screen Monitoring System for Truck

Specification:

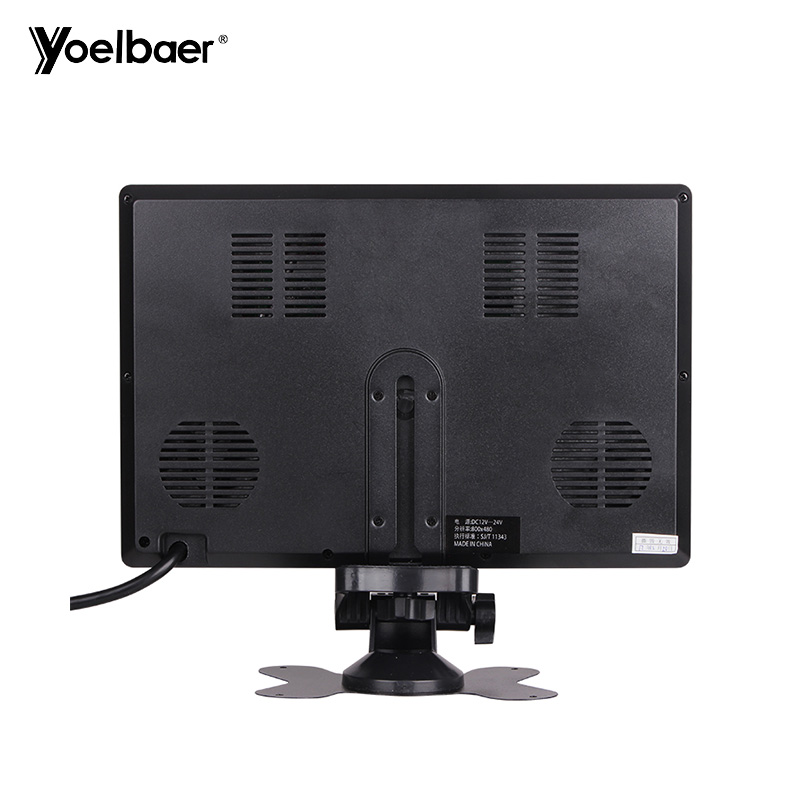

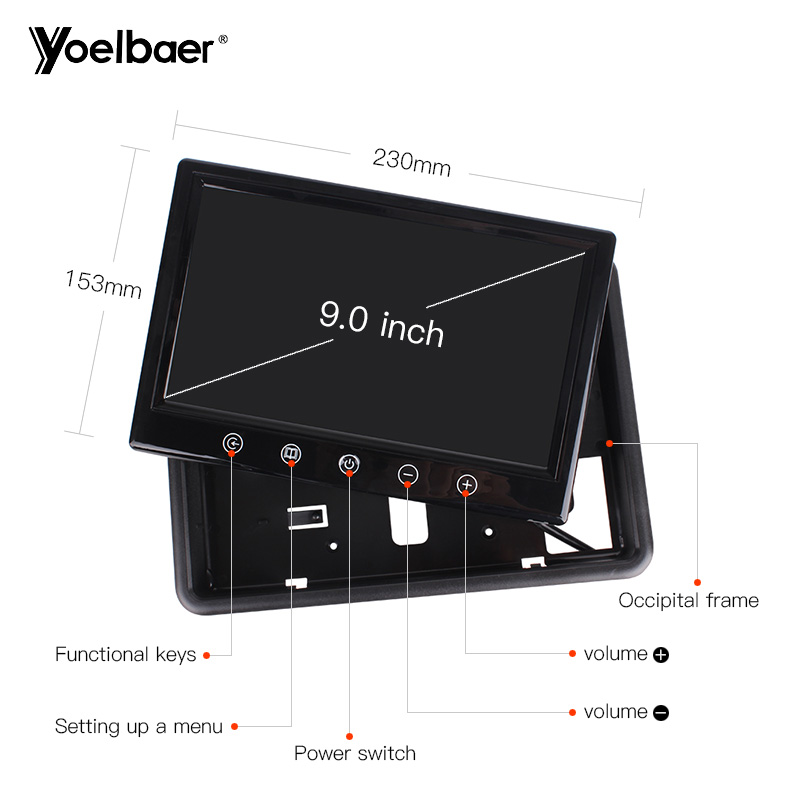

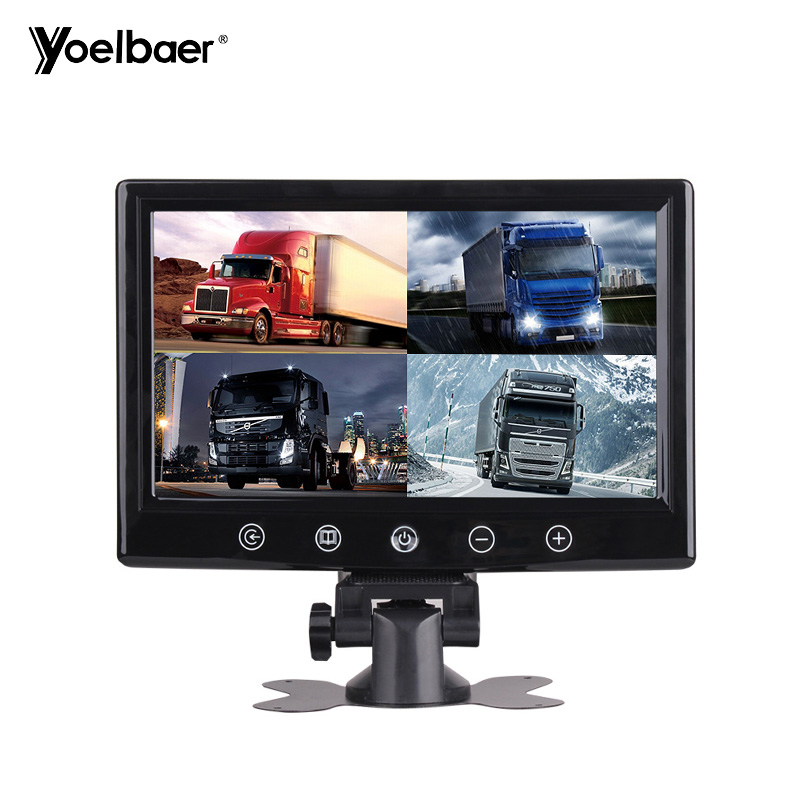

Monitor
Screen Size	230X153X25mm
Voltage	9-35V
Contrast	500:1
Brightness	400cd/m2
Resolution	1024*600Pixels optional
Color	Black, Optional
Standard	PAL/NTSC
Power supply	DC port
Ratio	16:9/4:3
Power	About 7W
Control	OSD 8 languages
Operation temperature	-20°C~50°C
Storage temperature	-30°C~70°C
Installation	Foldable or desktop

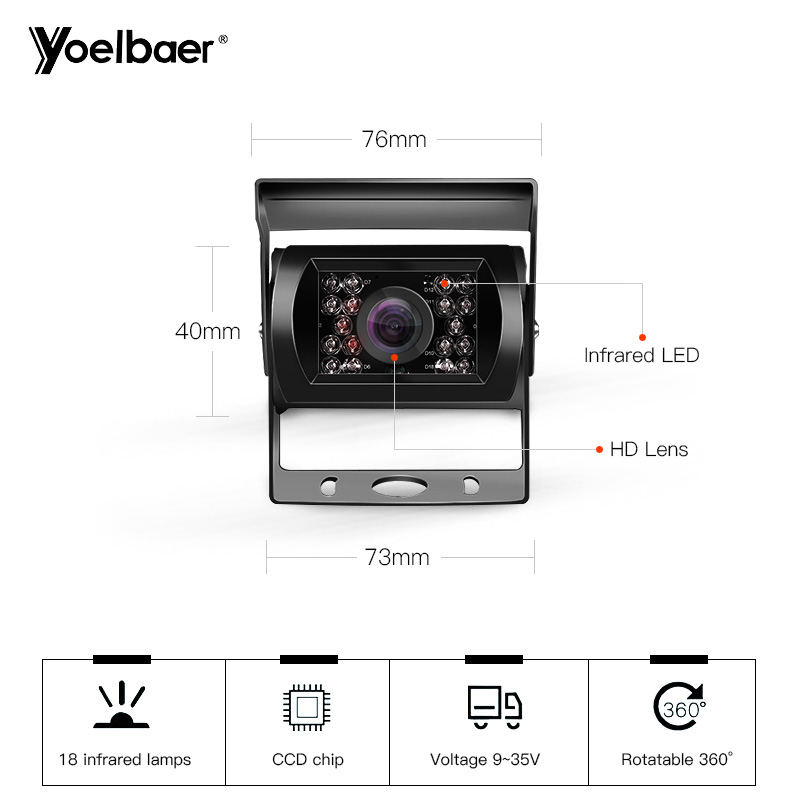

Camera
Chip	HD CCD
Size	73X40X25MM
TV system	NTSC60HZ/PAL50HZ
Shutter speed	1/60-20us
Sensing area	5.961 x 4.276mm
Effective pixel	648*488 Pixels
Horizontal resolution	520TVL
Minimum illumination	0.2Lux/ F1.8=1.2 (0 Lux with Led)
View Angle	120 Degree
White balance	Auto
Waterproof	IP67
Power supply	DC 12-24V
Power	Approx 7W
Video output	1.0Vp-p, 75ohm
Horizontal synchronization frequency	15625KHZ
SNR	>48dB
Operation temperature	-20°C~ 70°C, RH95% Max
Storage temperature	-30°C ~ 85°C, RH95% Max
Current Consumption	No More than 150mA
Function	Monitoring blind area
Application	Bus,Truck,etc
Remark	Default with Parking line for Rearview.Front view accept
