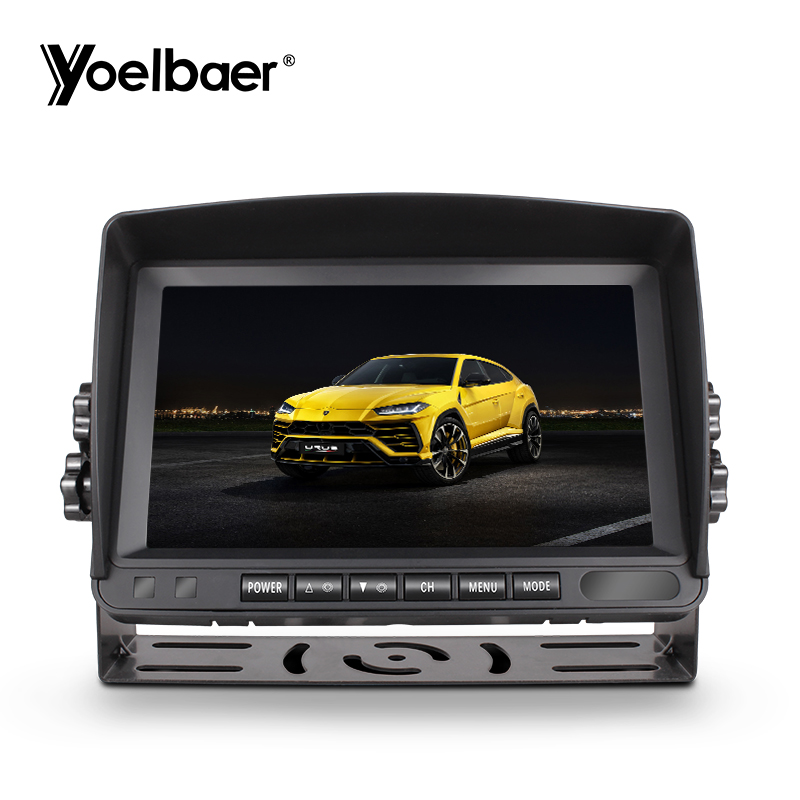

7 inch Car Monitor built-in DVR function Parameter

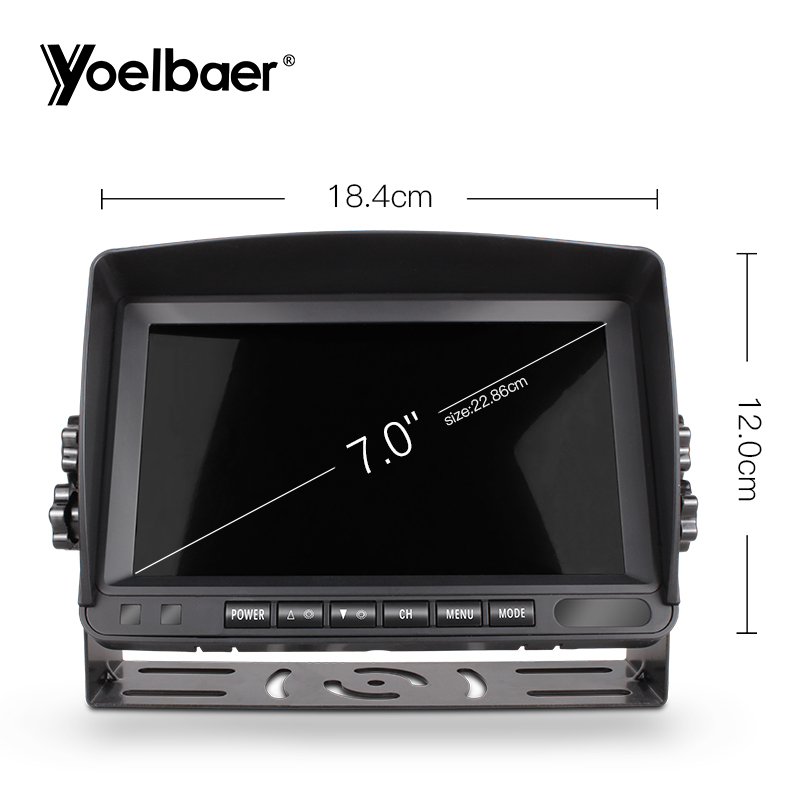

1.Size:184*120mm
2.Voltage: 9-36V
3.Contrast: 400:1
4.Brightness: 500cd
5.Physical resolution:1024*600
6.Standard: PAL/NTSC
7.Chipest: HI3520DV200
8.Processor: A9
9.Video Signal support: CVBS or AHD 720P
10.Control:OSD
11.Ratio: 16:9
12.View Angle :L/R:70,UP:50,down:70 degree
13.Display Mode:Single /dual/triple /Quad
14.Video input format: 720P & 960P
15.Video Compressor : H.264 .Fomat: AVI
16.Power Consumption: 15 Watt Max
17.OSD Control: Multi-lingual OSD, Reversing Delay, Power off screen,
TV mode,Turnover, Firmware Version, Back light.
18.Operating Temperature(Deg.C):-20℃±75℃
19.Storage Temperature(Deg.C):-30℃±80℃
20.Built-in MDVR, Support SD Card, 32GB, 64GB, 128GB, 256GB.
The max storage: 1TB-2TB SD card . 256GB SD card can keep recording,approx 120mins .
21.Recoding Ouput File: one channel to one file folder .
22.The Power Cable contact with car battery diretly,the car key control wire to start on/off DVR.
When the car stop and pull out the car key,DVR stop recording and turn off.
23.Built -in strong power dadiating processor,the surface temperature less than 50℃ for long time working
24.Attention: for the first time use ,please check the time if right,then adjust time as your local time .
25.Attention: for the first time use, put the SD into the monitor,then format the sd card
