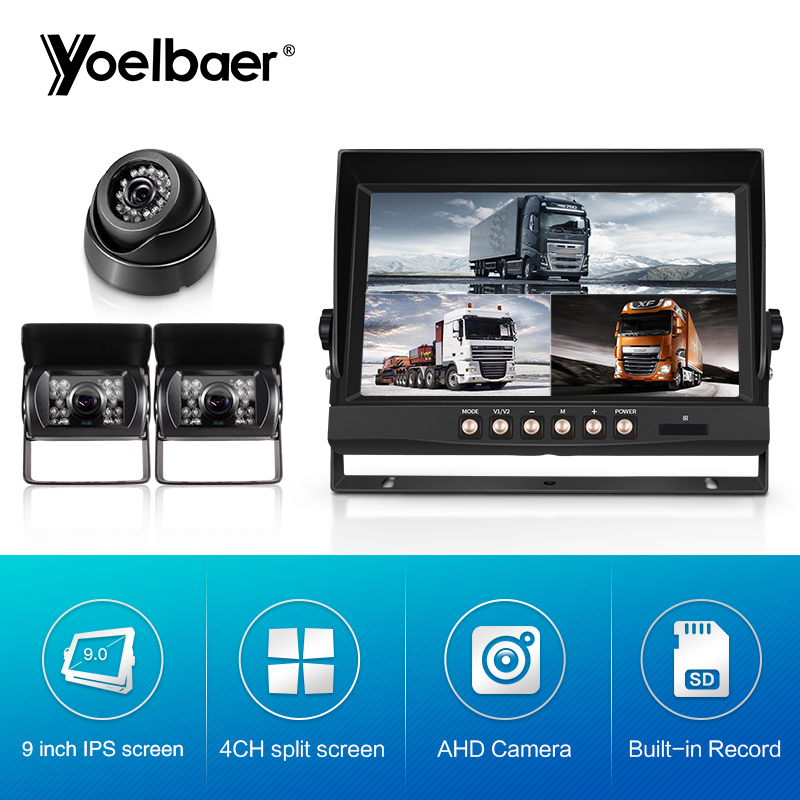

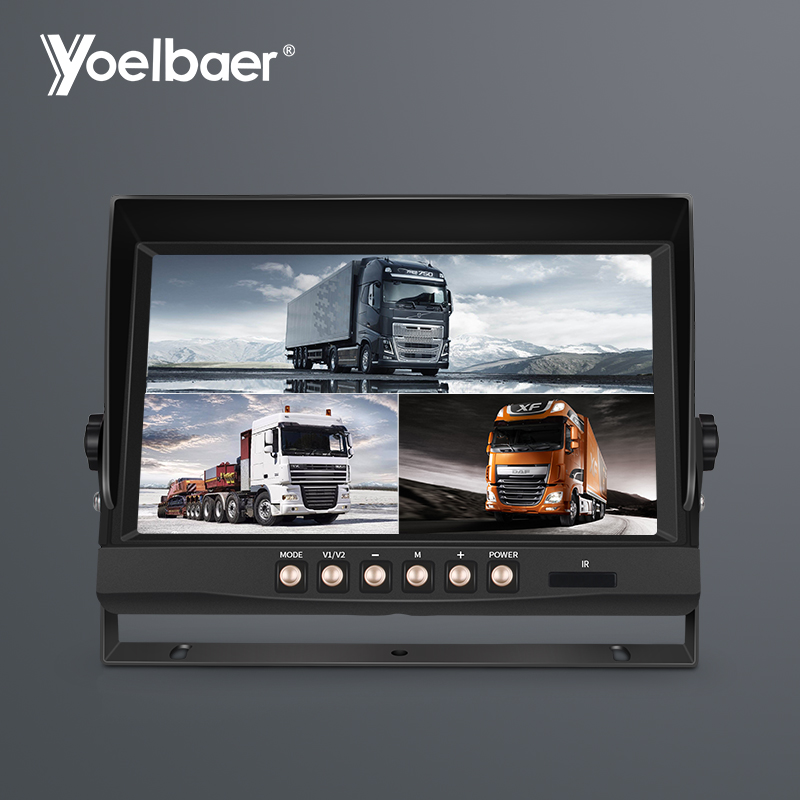

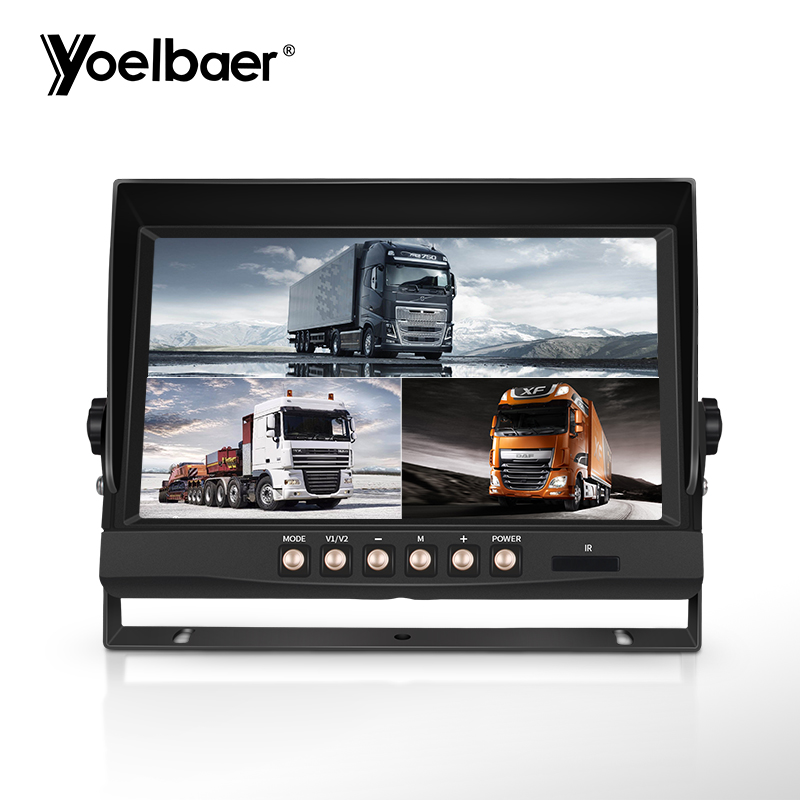

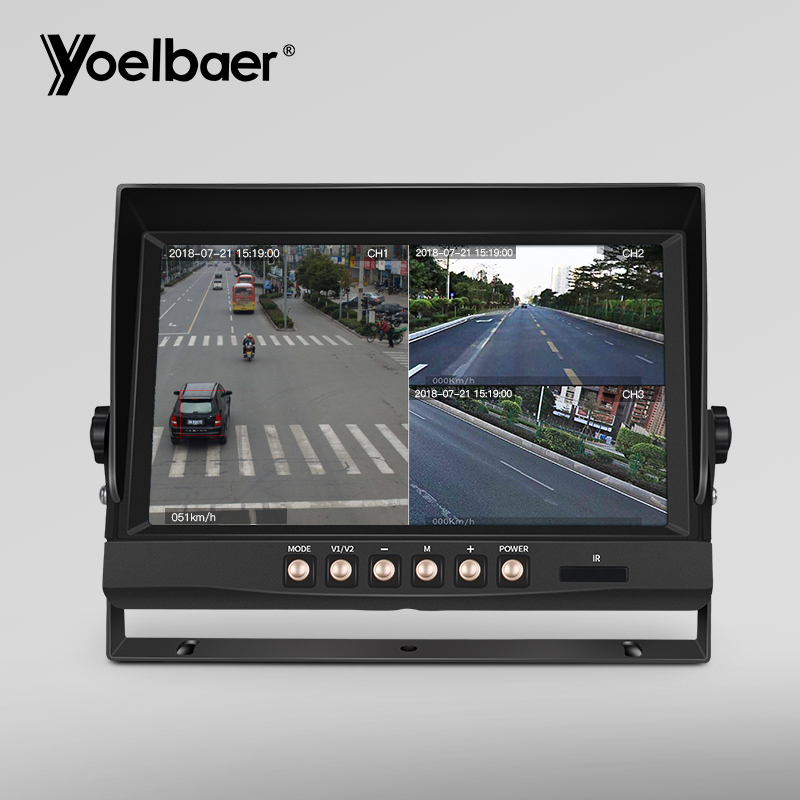

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

-9 Inch IPS screen
-4CH split screen
-3 AHD cameras
-Built-in record


  • Product introduction
Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

 Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

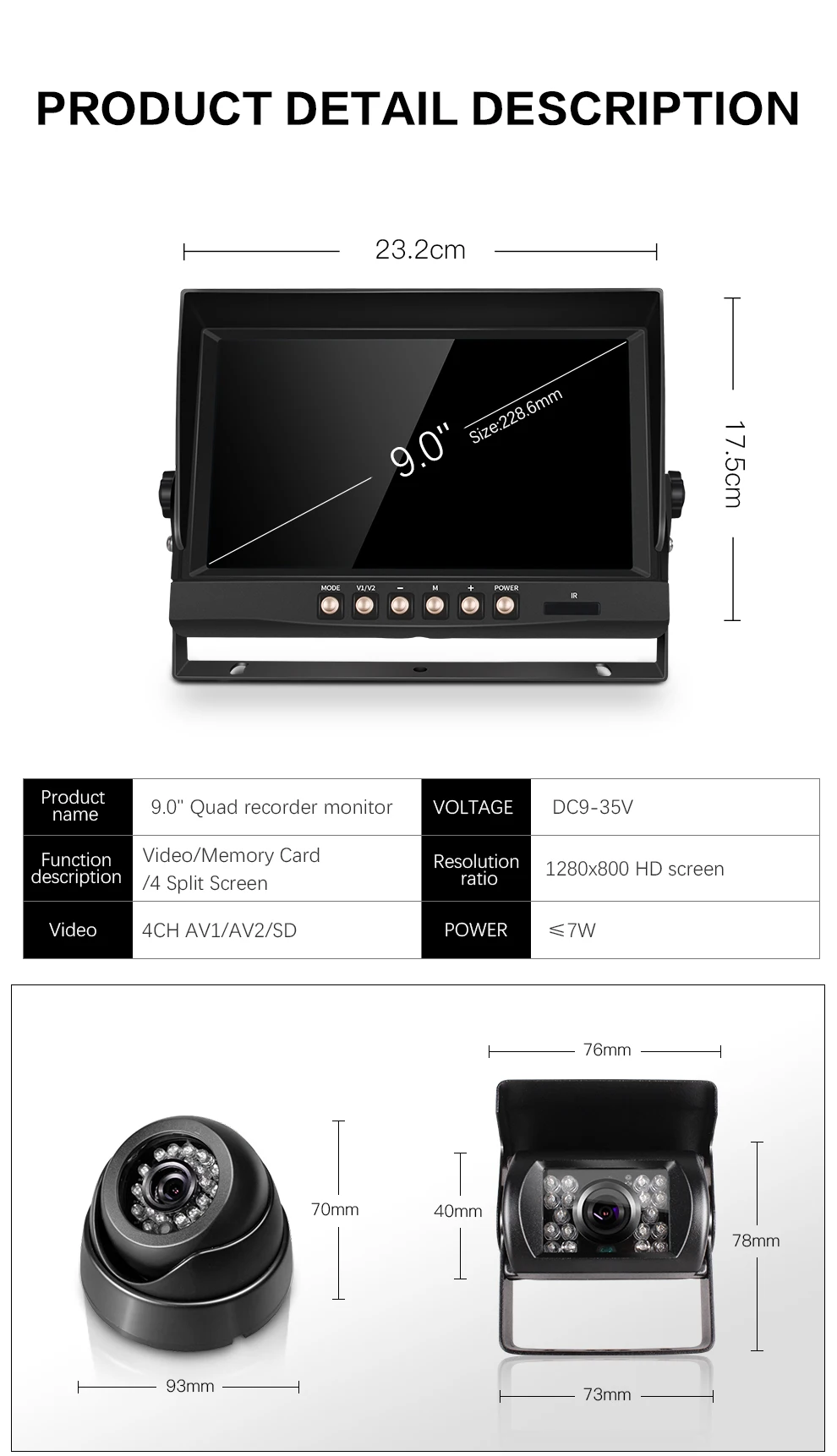

 Specification:

1.Size:232*175mm
2.Voltage: 9-36V
3.Contrast: 400:1
4.Brightness: 500cd/m2
5.Physical resolution:1024*600
6.Standard: PAL/NTSC
7.Chipest: HI3520DV200
8.Processor: A9
9.Video Signal support: CVBS or AHD 720P
10.Control: OSD
11.Ratio: 16:9
12.View Angle :L/R:70,UP:50,down:70 degree
13.Display Mode: Single/dual/triple /Quad
14.Video input format: 720P & 960P
15.Video Compressor: H.264. Format:AVI
16.Power Consumption: 15 Watt Max
17.OSD Control: Multi-lingual OSD, Reversing Delay, Power off screen,
TV mode,Turnover,Firmware Version,Back light.
18.Operating Temperature(Deg.C): -20℃±75℃
19.Storage Temperature(Deg.C): -30℃±80℃
20.Built-in MDVR, Support SD Card, 32GB, 64GB, 128GB.
The max storage: 128G SD card.
21.Recoding Ouput File: one channel to one file folder .
22.The Power Cable contact with car battery diretly,the car key control wire to start on/off DVR.
When the car stop and pull out the car key,DVR stop recording and turn off.
23. Built -in strong power dadiating processor,the surface temperature less than 50℃ for long time working
24.Attention : for the first time use ,please check the time if right,then adjust time as your local time .
25.Attention: for the first time use, put the SD into the monitor,then format the sd card

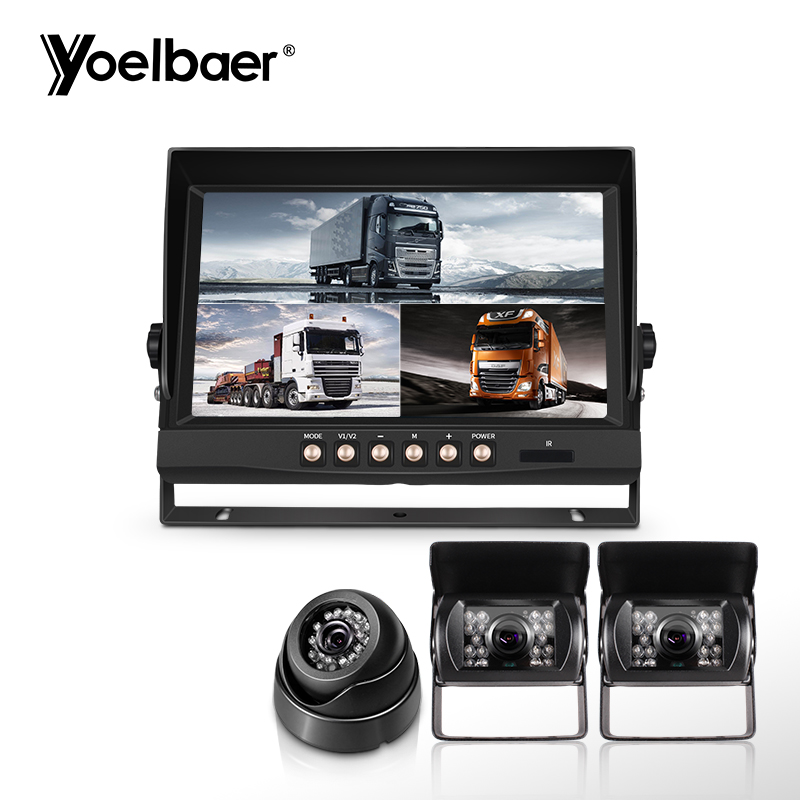

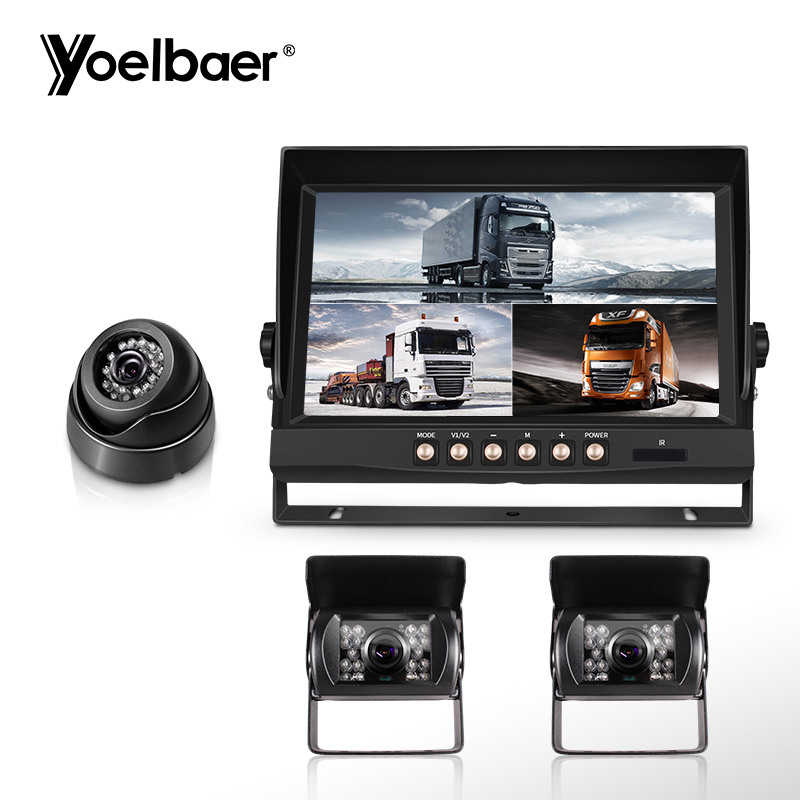

What is in the package:

9 inch monitor*1

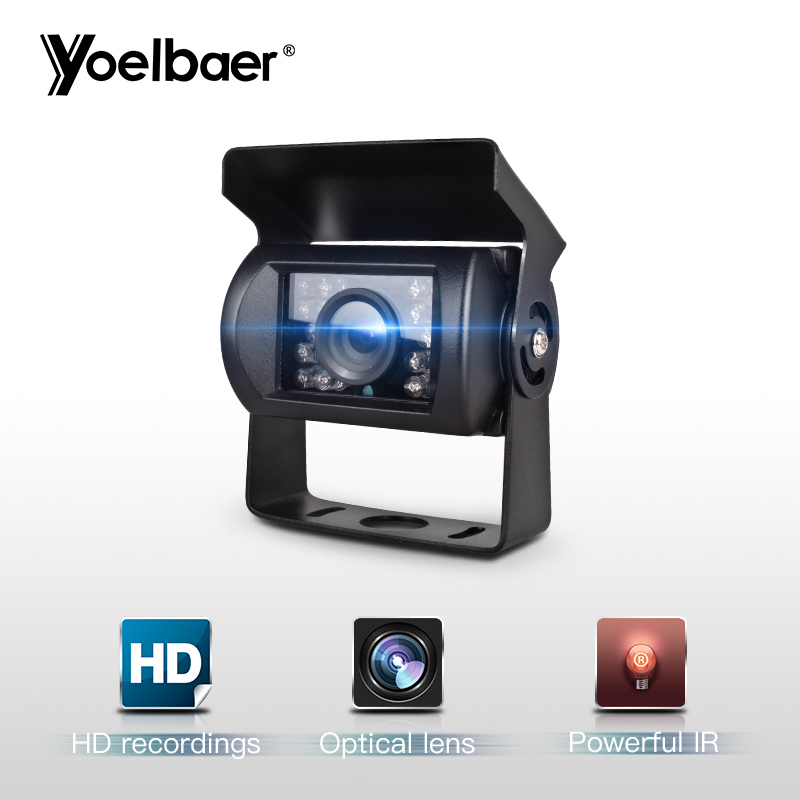

AHD outdoor camera*2
AHD dome camera*1
5M aviation extension cable*3

Product show

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor

Split Screen Truck &Bus AHD Camera Recorders System with 9 Inch Monitor
